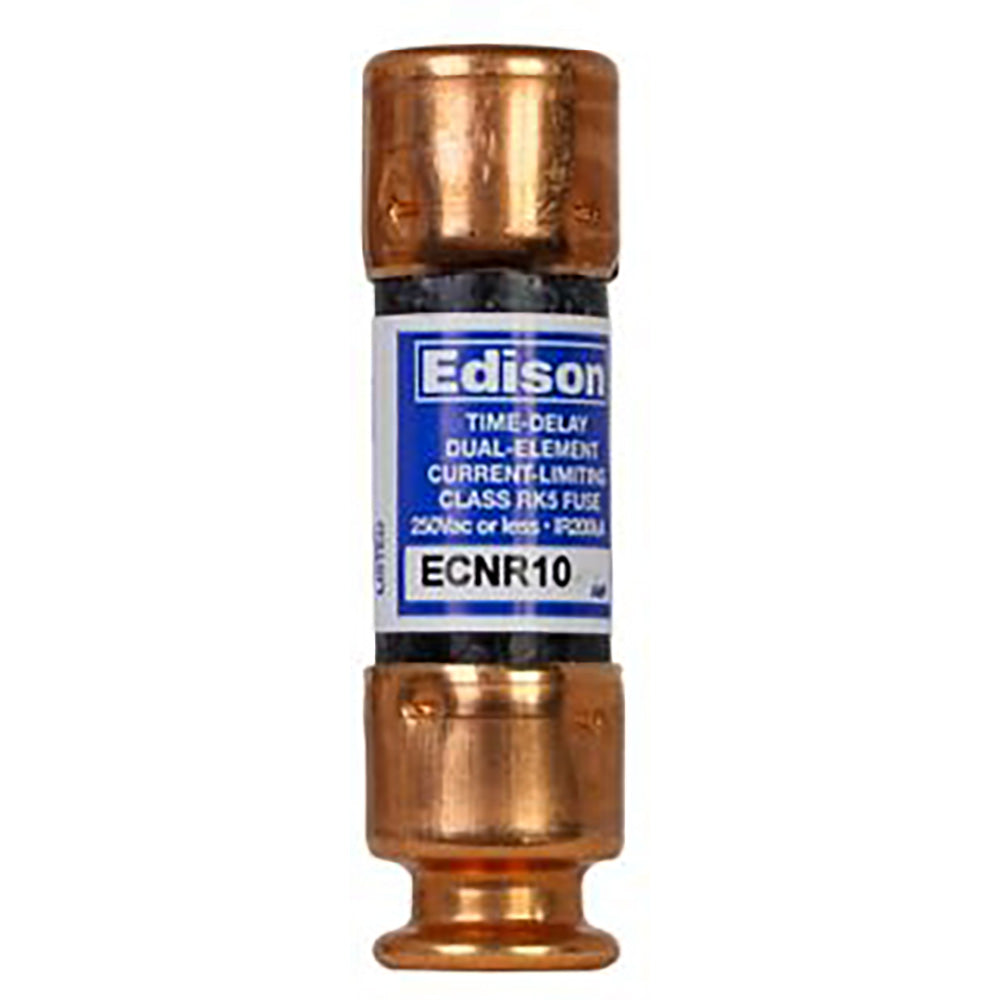

Edison Fuses ECNR10 - RK5 Time-Delay Fuse 10A@250V (200kA AIC)

Edison Fuses ECNR10 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC/DC voltage rating and 10A current rating with a high interrupting capacity of 200kA at 250V. The fuse measures 5.88" in length with a 0.56" diameter ferrule connection and weighs 1.3 lb, constructed for durable single-barrel installation. Compliant with industry standards for RK5 fuses, it provides reliable overcurrent protection in motor control centers, panelboards, and industrial power distribution equipment.

Key Features & Specifications

• Type: Low-voltage RK5 time-delay fuse with ferrule connection
• Voltage Rating: 250V AC/DC
• Current Rating: 10A
• Dimensions: 5.88"L x 1.6"W x 1.6"H
• Weight: 1.3 lb
• Diameter: 0.56"
• Class Rating: RK5
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@250V
• Standards: UL/CSA listed
• Applications: Motor protection, industrial control panels, power distribution

Product Identification

• UPC: 782634507284
• GTIN: 00782634507284
