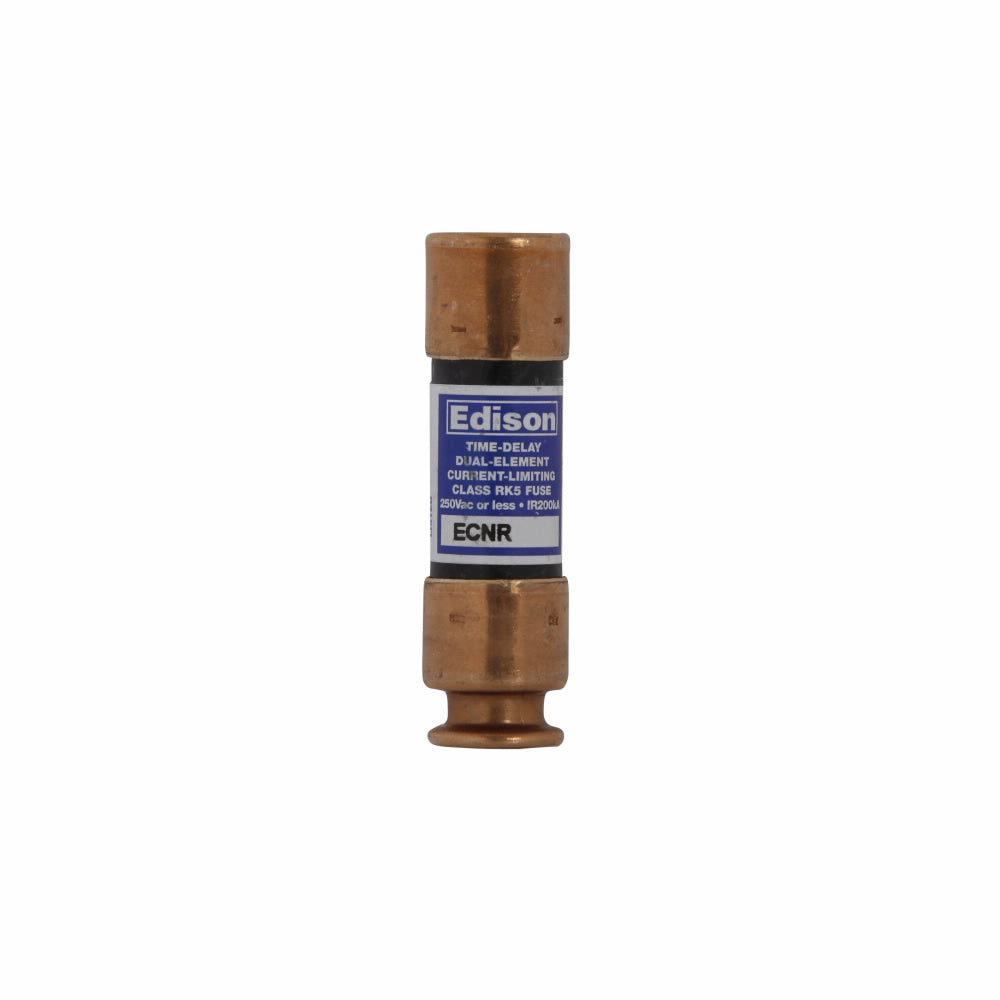

Edison Fuses ECNR1.5 - RK5 Time-Delay Fuse 1.5A (200kA@250V Interrupt Rating)

Edison Fuses ECNR1.5 is a low-voltage RK5-class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC/DC voltage rating and 1.5A current rating with a high interrupting capacity of 200kA at 250V. The compact ferrule-connected fuse measures 2" in length with a 0.56" diameter barrel construction, weighing 1.5 lb for easy panel integration. Compliant with industry standards for RK5 fuses, it provides reliable overcurrent protection in motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: ECNR series time-delay fuse with ferrule connection
• Voltage Rating: 250V AC/DC
• Current Rating: 1.5A
• Dimensions: 2" L × 0.56" W × 0.56" H
• Standards: RK5 class rating
• Applications: Motor controls, transformers, power distribution
• AIC rating: 200kA@250V
• Connection: Ferrule
• Barrels: 1
• Diameter: 0.56"
• Weight: 1.5 lb

Product Identification

• UPC: 78263450696
• GTIN: 00782634506966
