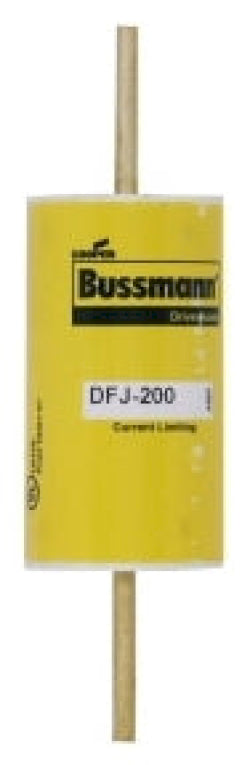

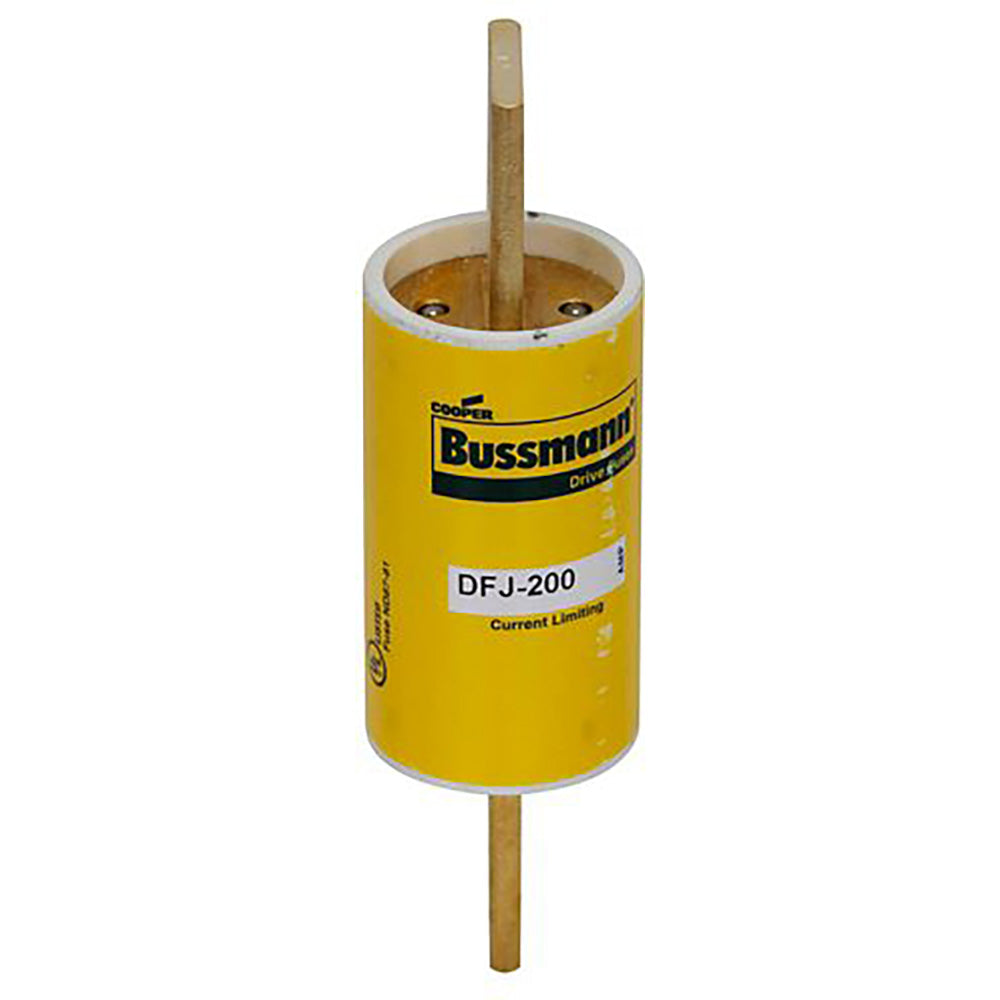

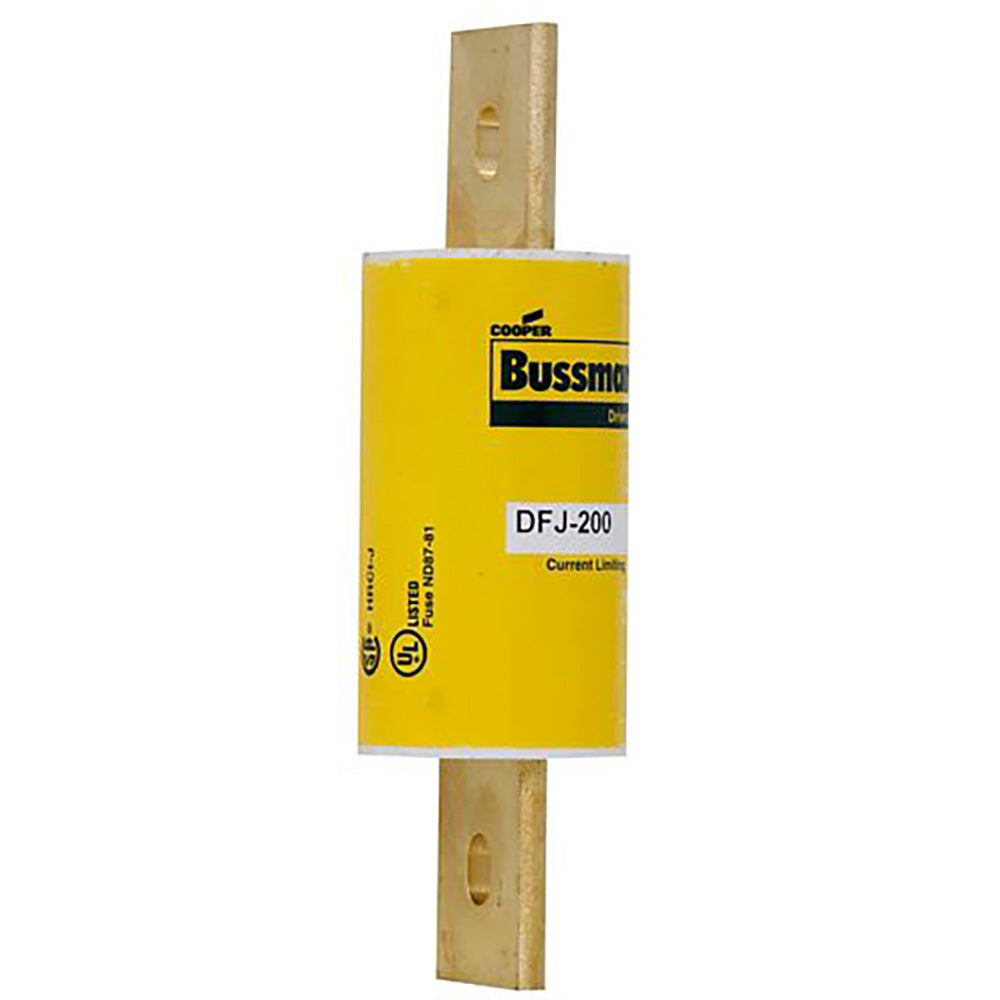

Bussmann DFJ-200 - Class J Time-Delay Fuse 200A (200kA Interrupting Rating)

The Bussmann DFJ-200 is a Class J low-voltage fuse engineered to provide reliable circuit protection in industrial power distribution systems. It features a 200A current rating and 600V AC voltage rating, capable of interrupting up to 200kA fault currents at rated voltage. The fuse construction utilizes a single-barrel design with compact dimensions of 6" length × 2" width × 1" height and weighs 1 lb for space-efficient panel mounting. Certified to UL, CSA, and CE standards, this fuse meets rigorous safety requirements for industrial applications including motor branch circuits, feeder protection, and industrial control panels where high interrupting capacity is critical.

Key Features & Specifications

• Type: Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 6" L × 2" W × 1" H
• Standards: UL, CSA, CE certified
• Applications: Industrial power distribution, motor branch circuits, feeder protection
• AIC rating: 200kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 051712653466
• GTIN: 00051712653466
