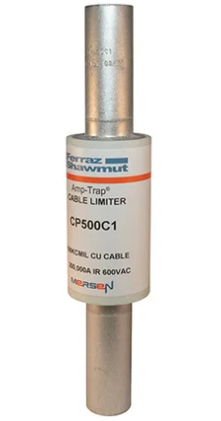

Mersen CP500C1 - Cable Protector Fuse 500A 600V (200kA AIC Rating)

Mersen CP500C1 is a low voltage cable protector fuse designed for safeguarding electrical circuits and equipment from overcurrent conditions. This fuse operates at 600V AC/DC with a 500A current rating and features a tubular connection design measuring 9.38 inches in length. It carries UL certification (File E305297) and provides 200kA interrupting capacity at 600V, suitable for industrial power distribution systems. The fuse maintains reliable operation across a temperature range of -25 to 70°C (-13 to 158°F) and weighs 5 lb, constructed for demanding electrical protection applications.

Key Features & Specifications

• Type: CP Class cable protector fuse with tubular construction
• Voltage Rating: 600V AC/DC
• Current Rating: 500A
• Dimensions: 9.38 inches length
• Standards: UL listed to File E305297
• Applications: Industrial power distribution systems, cable protection
• Class Rating: Cable Protector
• Connection: Tubular
• Wire Size: 500KCmil
• AIC Rating: 200kA@600V
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001931636
