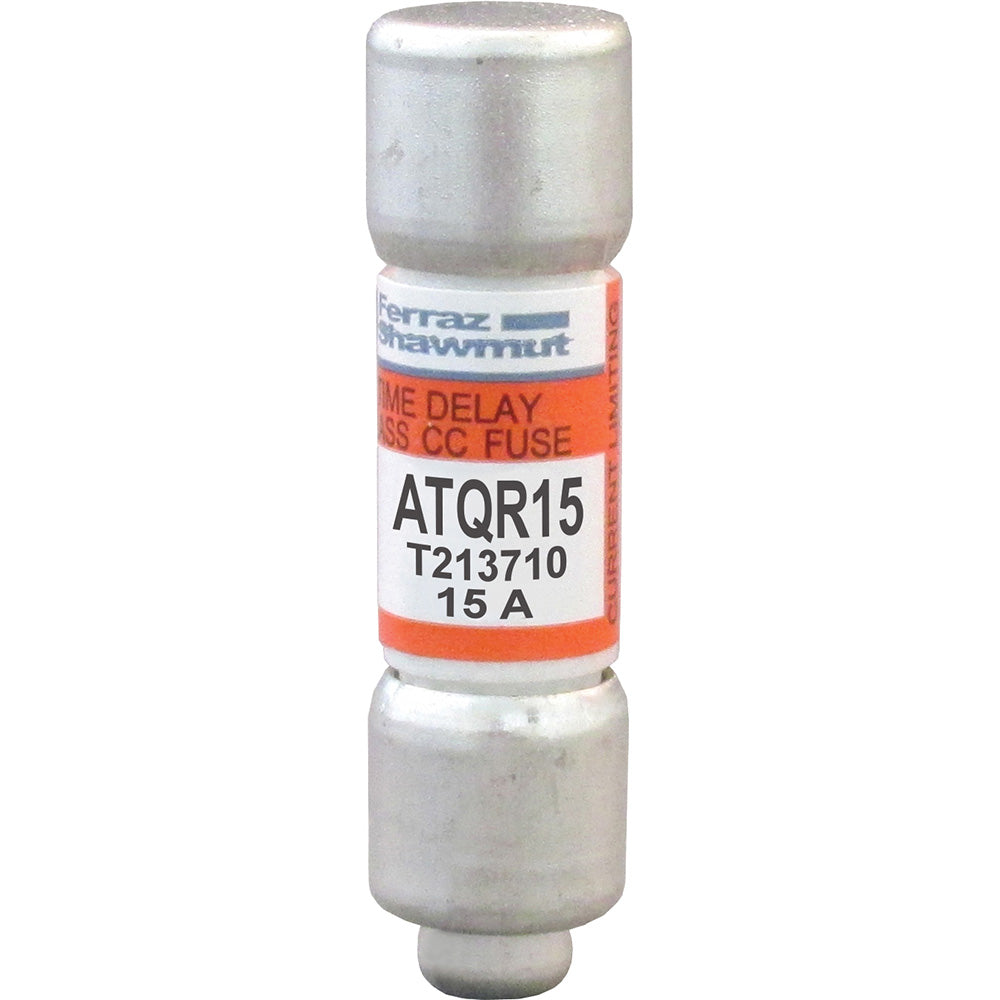

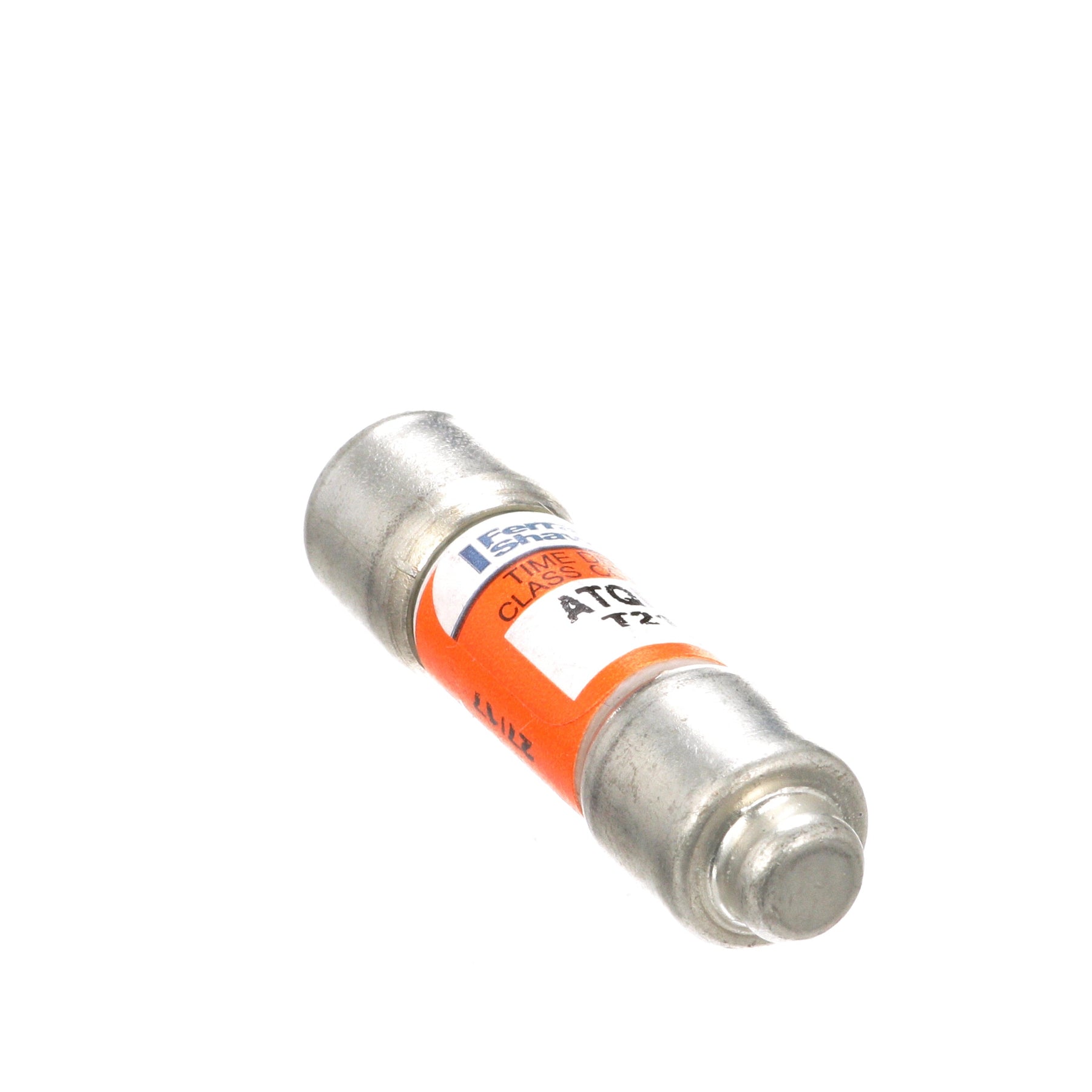

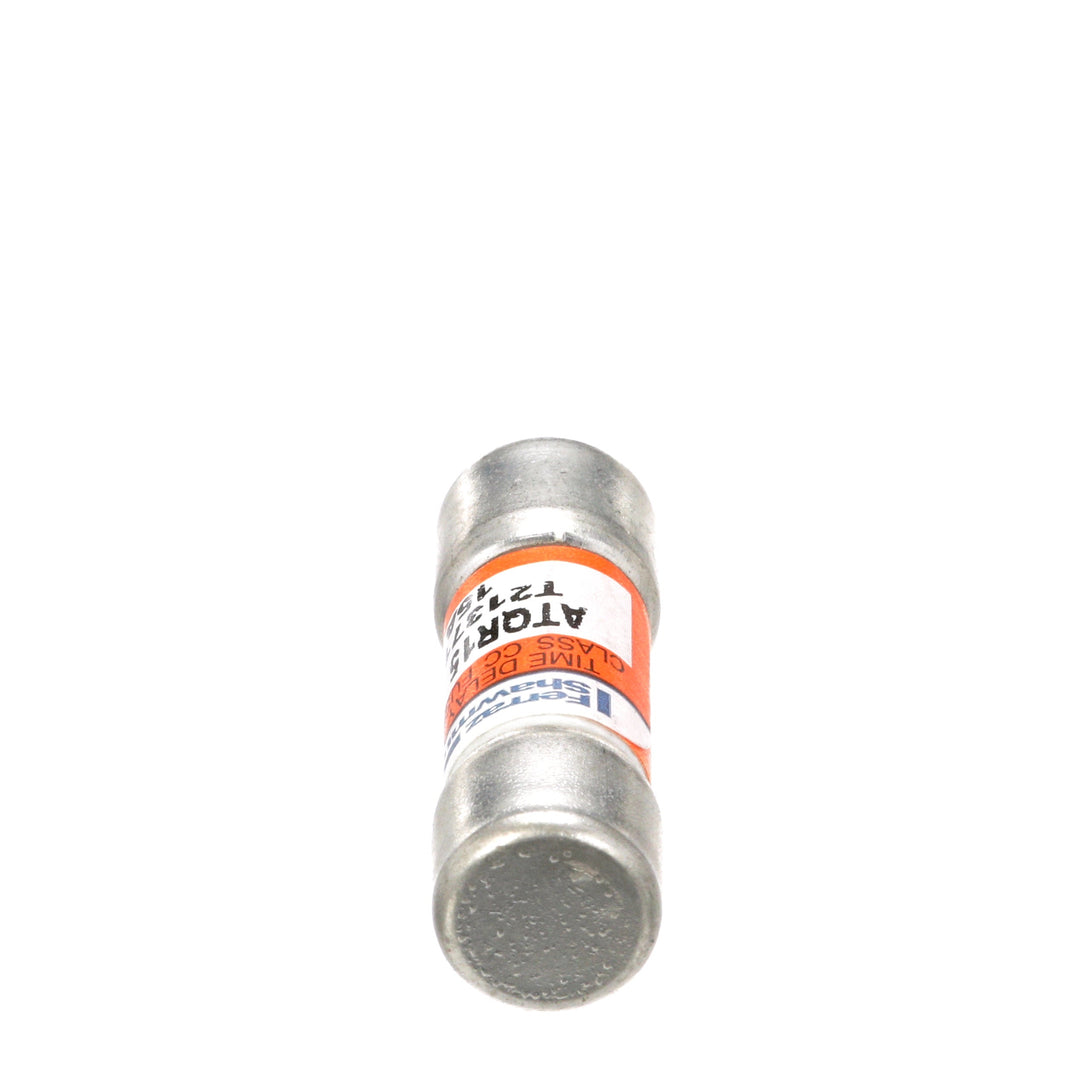

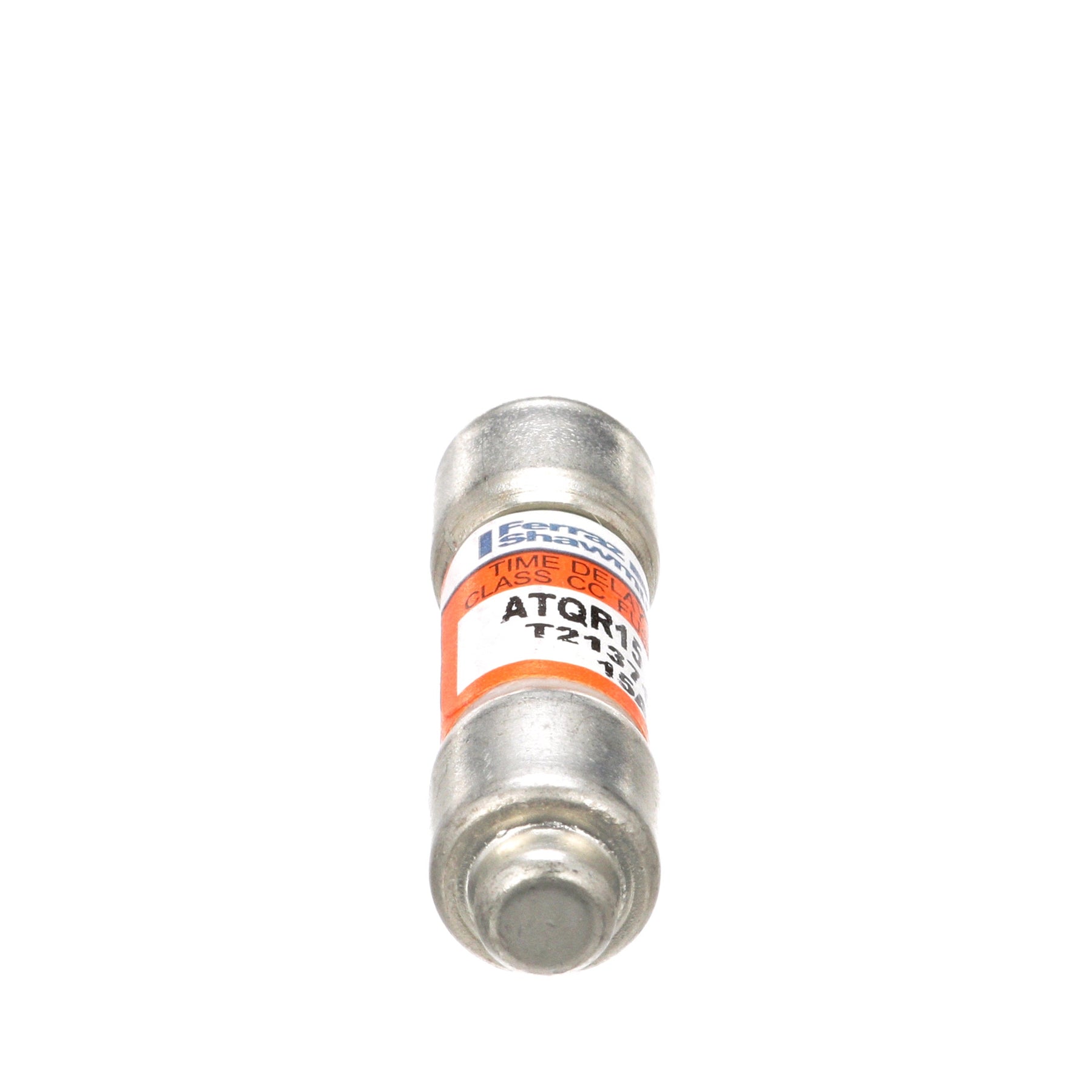

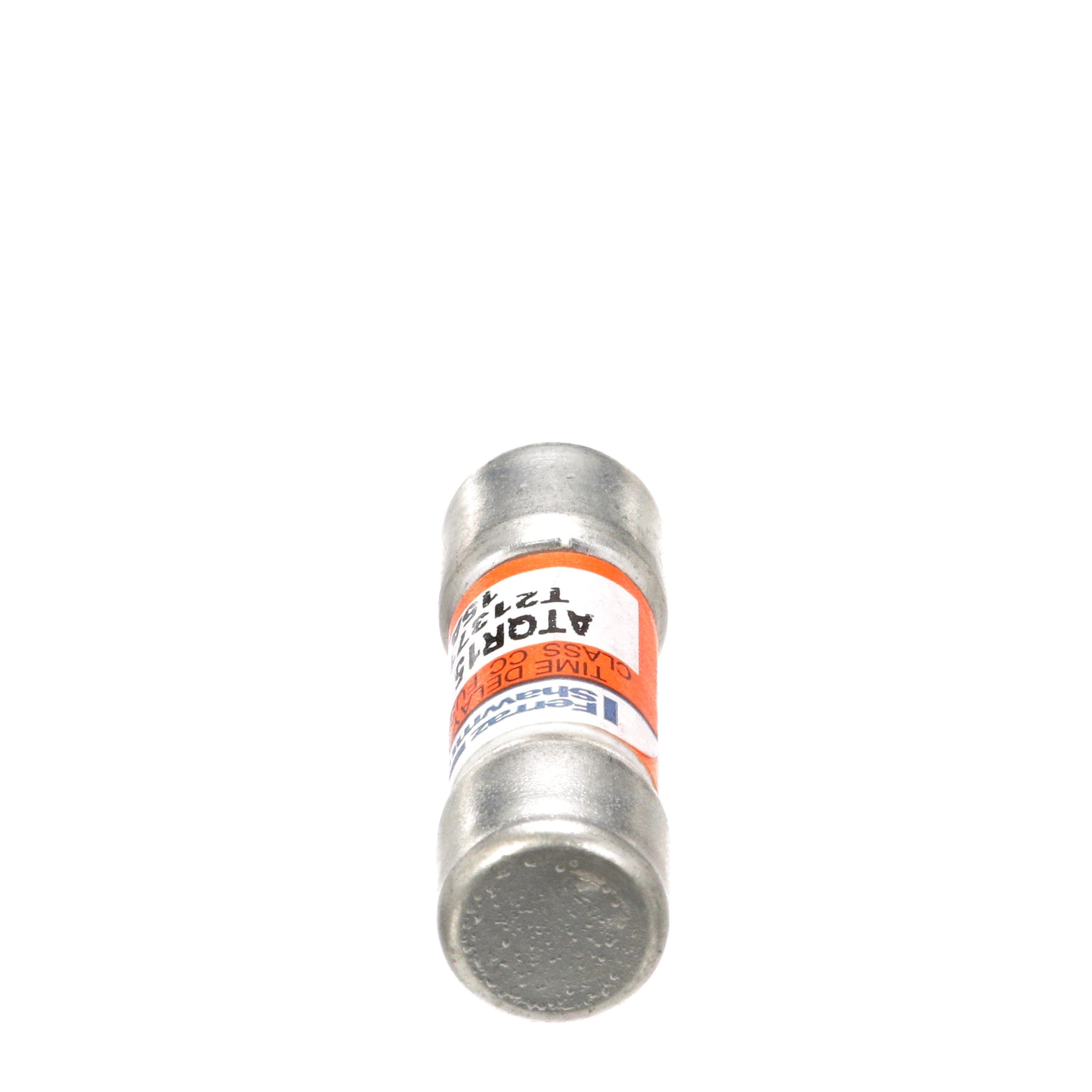

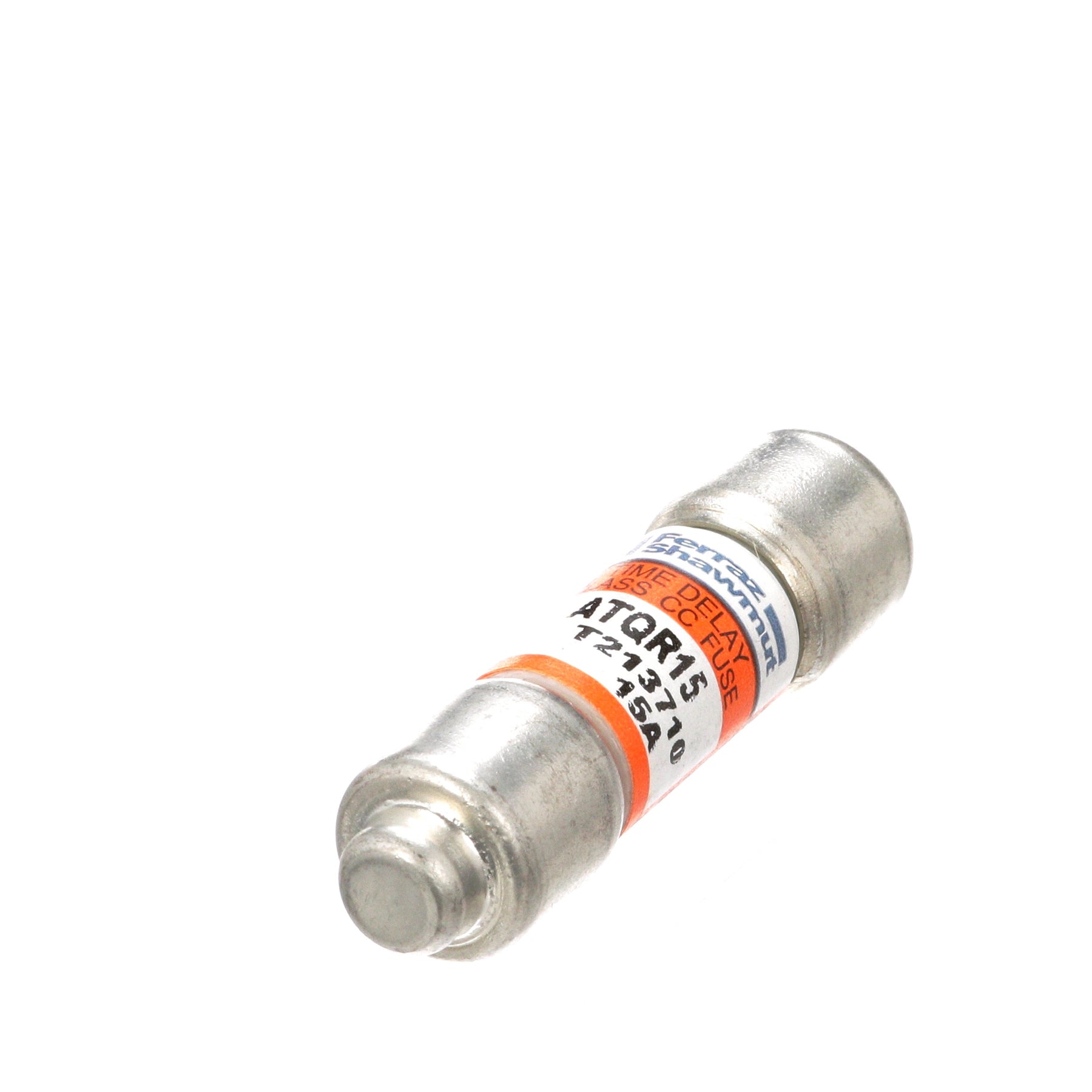

Cutler Hammer ATQR15 - Class CC Fuse 15A 600V (200kA AIC Rating)

Cutler Hammer ATQR15 is a current-limiting fuse designed for protecting sensitive electrical components and equipment from short-circuit faults. It features a 600V AC voltage rating with a 15A current rating and 200kA interrupting capacity at 600V AC. The fuse construction utilizes a single-barrel design measuring 1-1/2 inches in length with 0.41 inch diameter and weighs 5 lb. This Class CC fuse complies with UL/CSA certification standards for industrial applications. Typical applications include protection of control circuits, transformers, and motor controllers in industrial power distribution systems.

Key Features & Specifications

• Type: Current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 1-1/2 inch length x 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Control circuits, transformers, motor controllers
• AIC rating: 200kA@600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 5 lb

Product Identification

• UPC: 782001904685
• GTIN: 00782001904685
