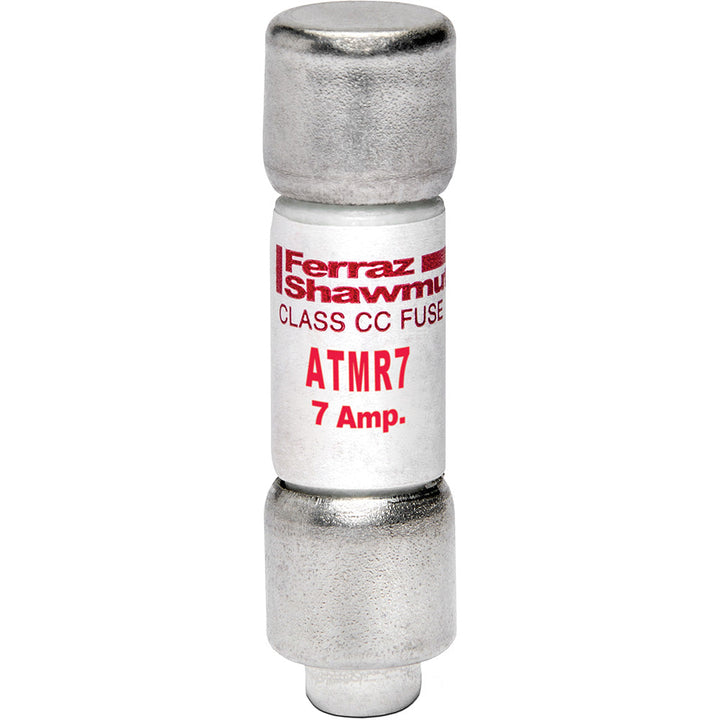

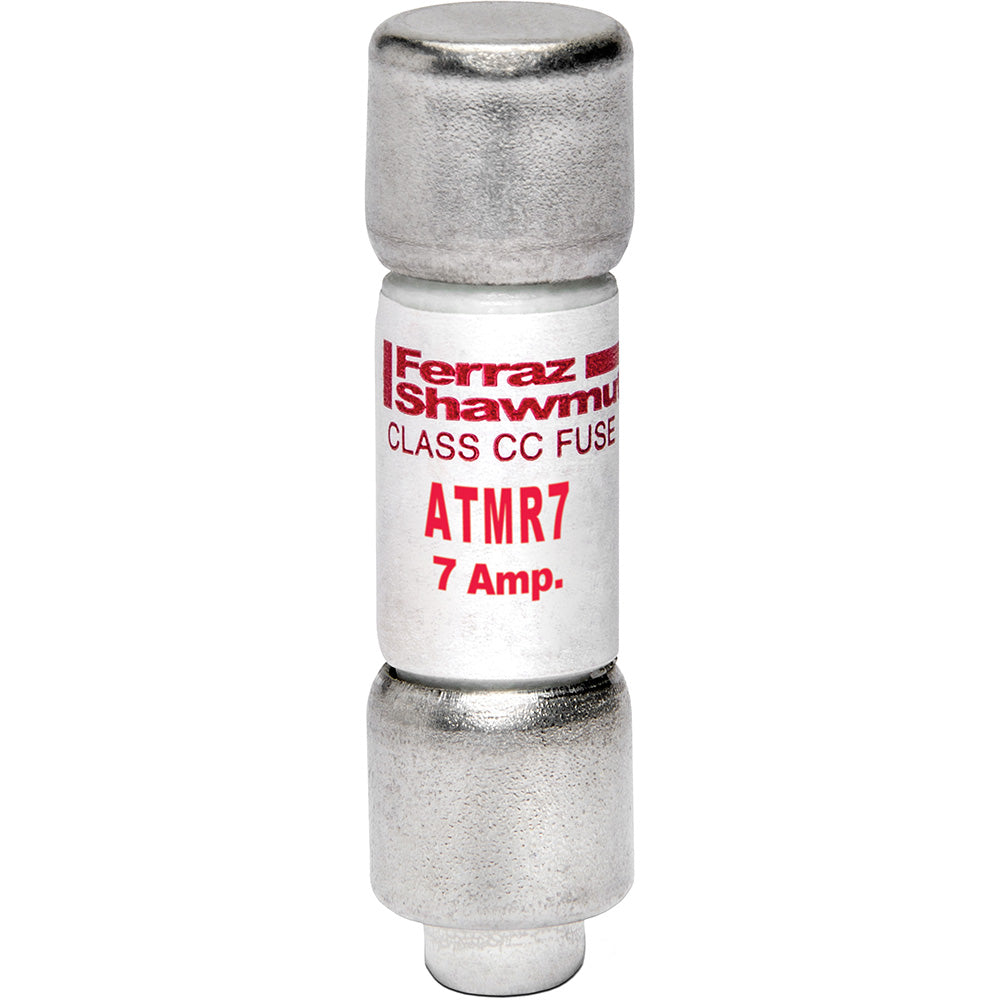

Mersen ATMR7 - Class CC Fuse 7A 600V (200kA AIC)

Mersen ATMR7 is a Class CC low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 7A current capacity and 200kA interrupting capacity at rated voltage, housed in a compact 1-1/2" cylindrical body with 0.41" diameter. The UL/CSA-certified fuse utilizes Mersen's Amp-Trap technology with single-barrel construction, meeting stringent safety standards for equipment protection. Typical applications include motor control centers, transformers, and power distribution panels requiring reliable short-circuit protection.

Key Features & Specifications

• Type: Current-limiting fuse, Class CC, single barrel
• Voltage: 600V AC
• Current: 7A
• Dimensions: 1-1/2" length x 0.41" diameter
• Weight: 0.02 lb
• Standards: UL/CSA certified
• AIC rating: 200kA@600V
• Applications: Motor controls, transformers, power distribution
• Construction: Ceramic body with silver element
• Country of Origin: Mexico

Product Identification

• UPC: 782001903916
• GTIN: 00782001903916
