Mersen ATMR6 - Class CC Fuse 6A 600V (200kA AIC)

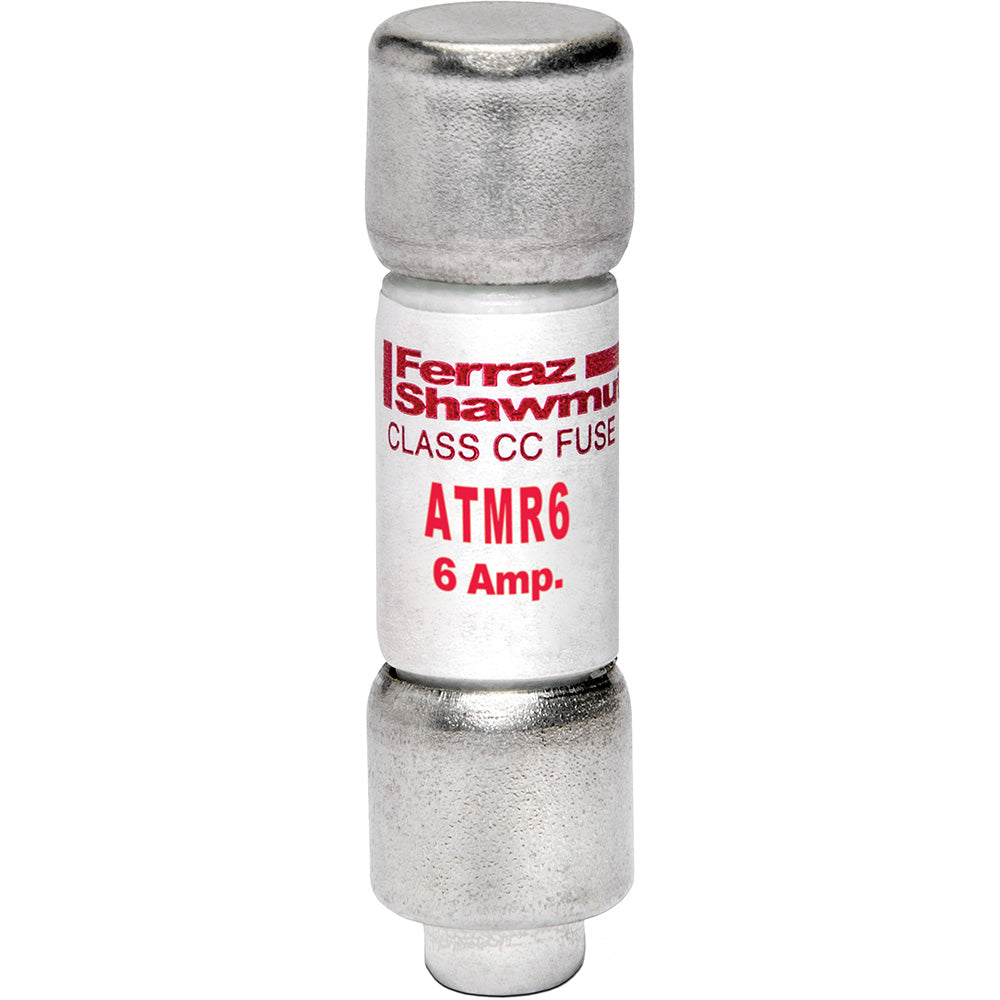

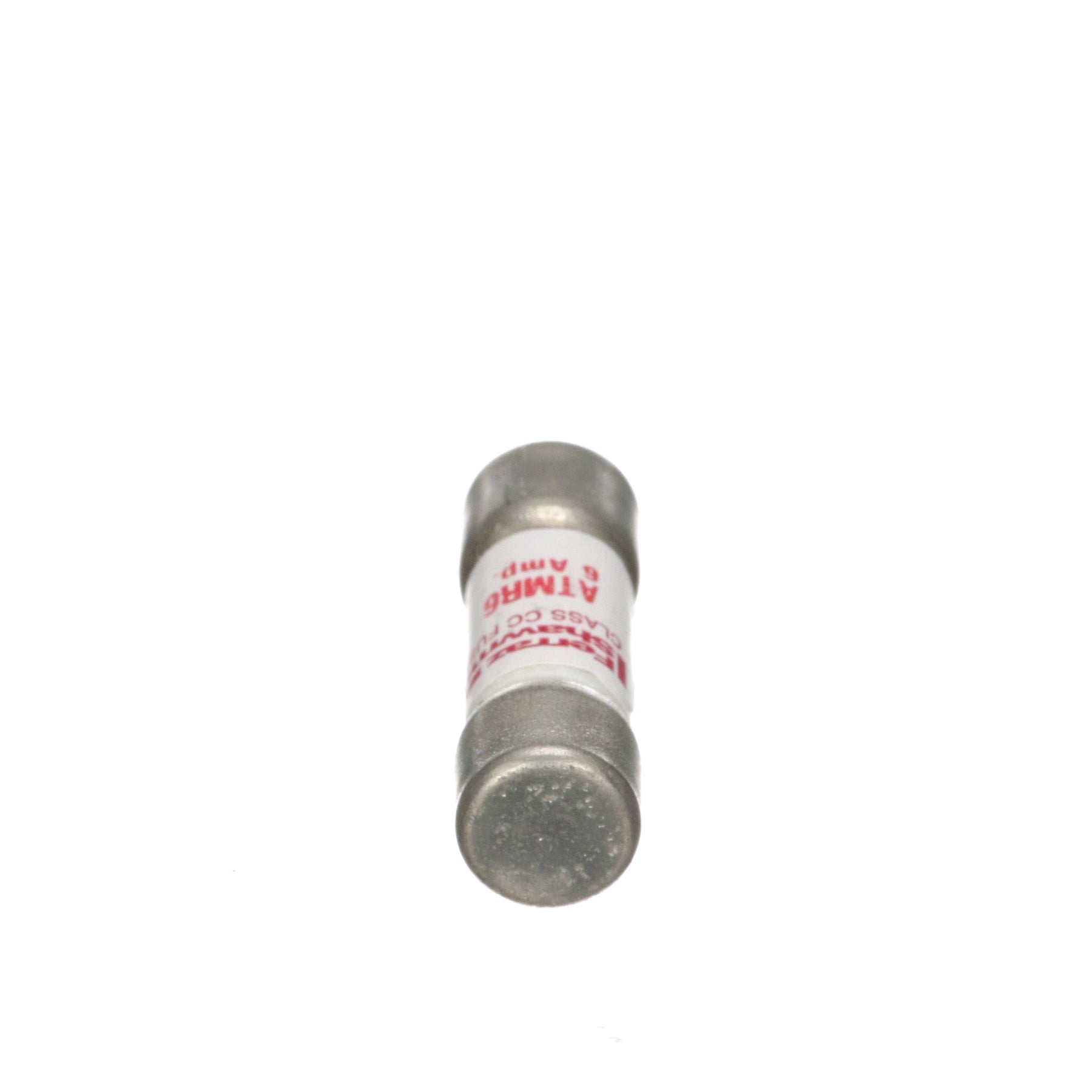

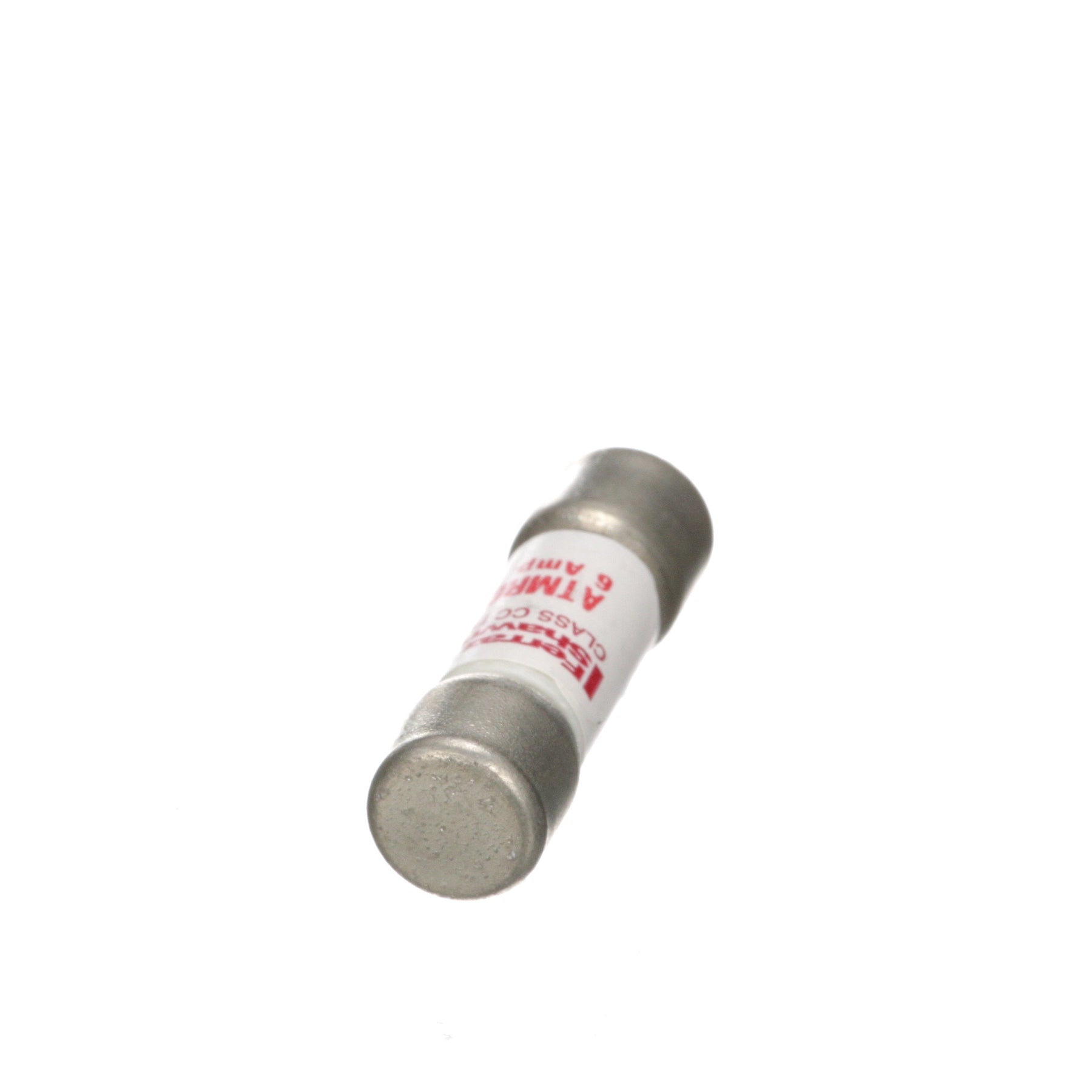

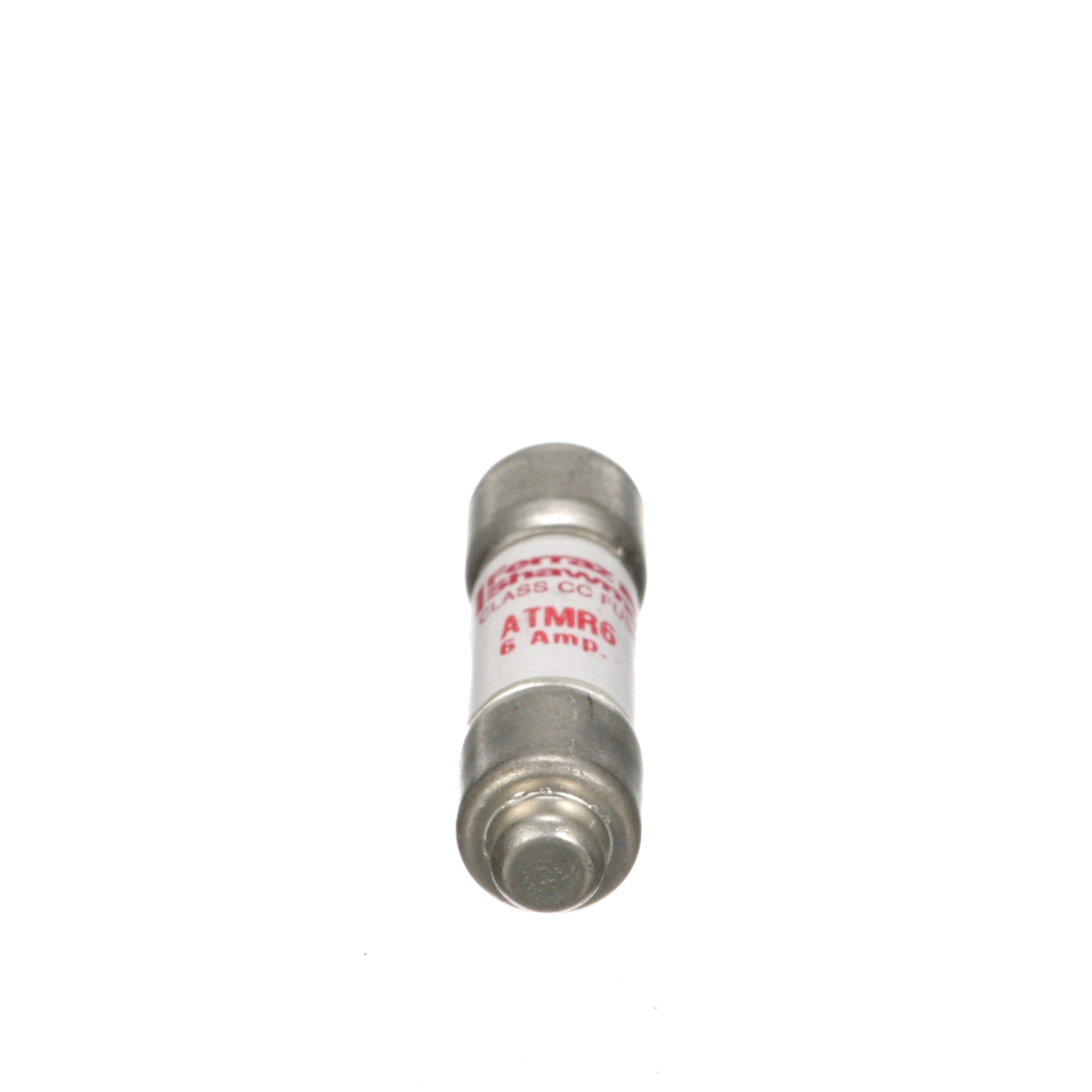

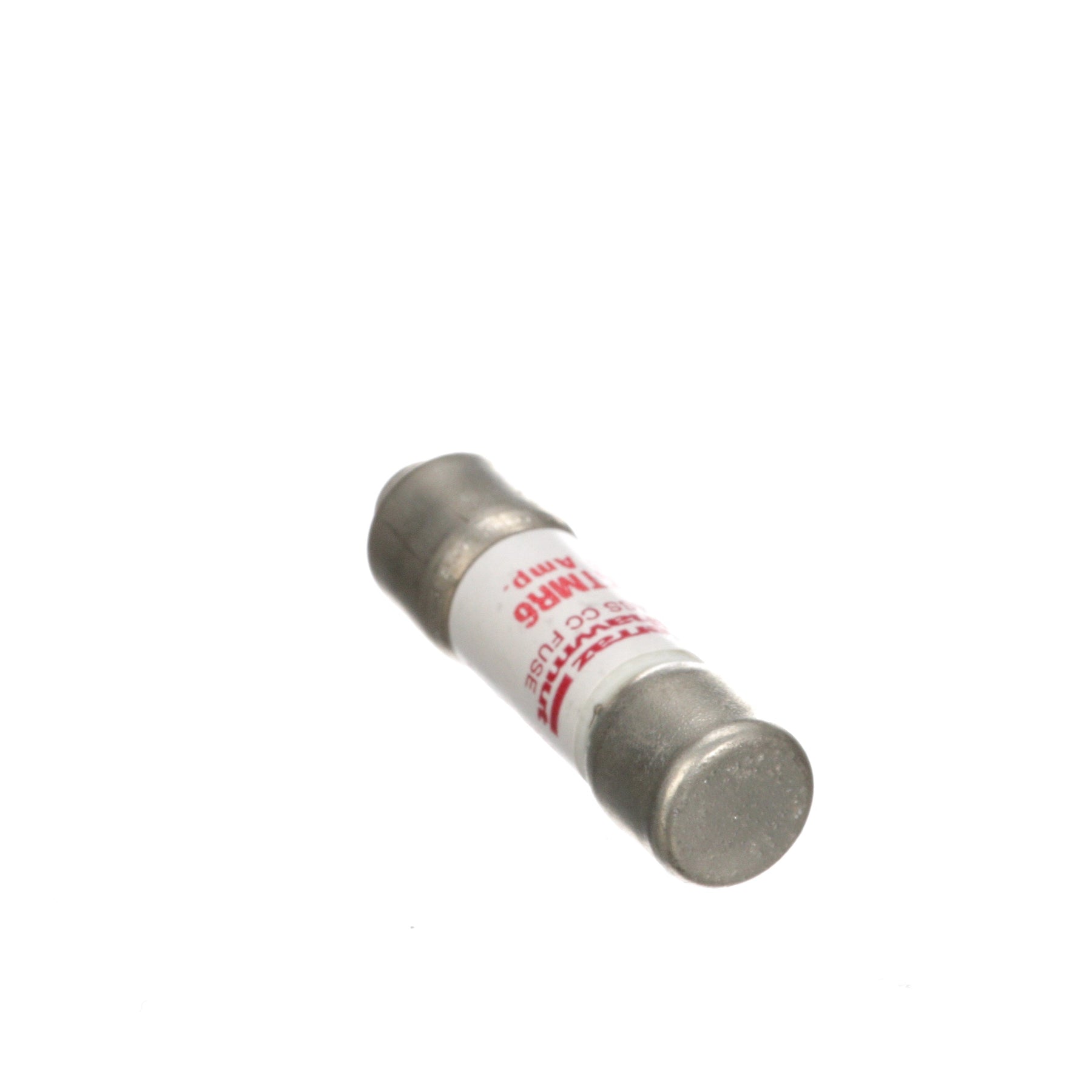

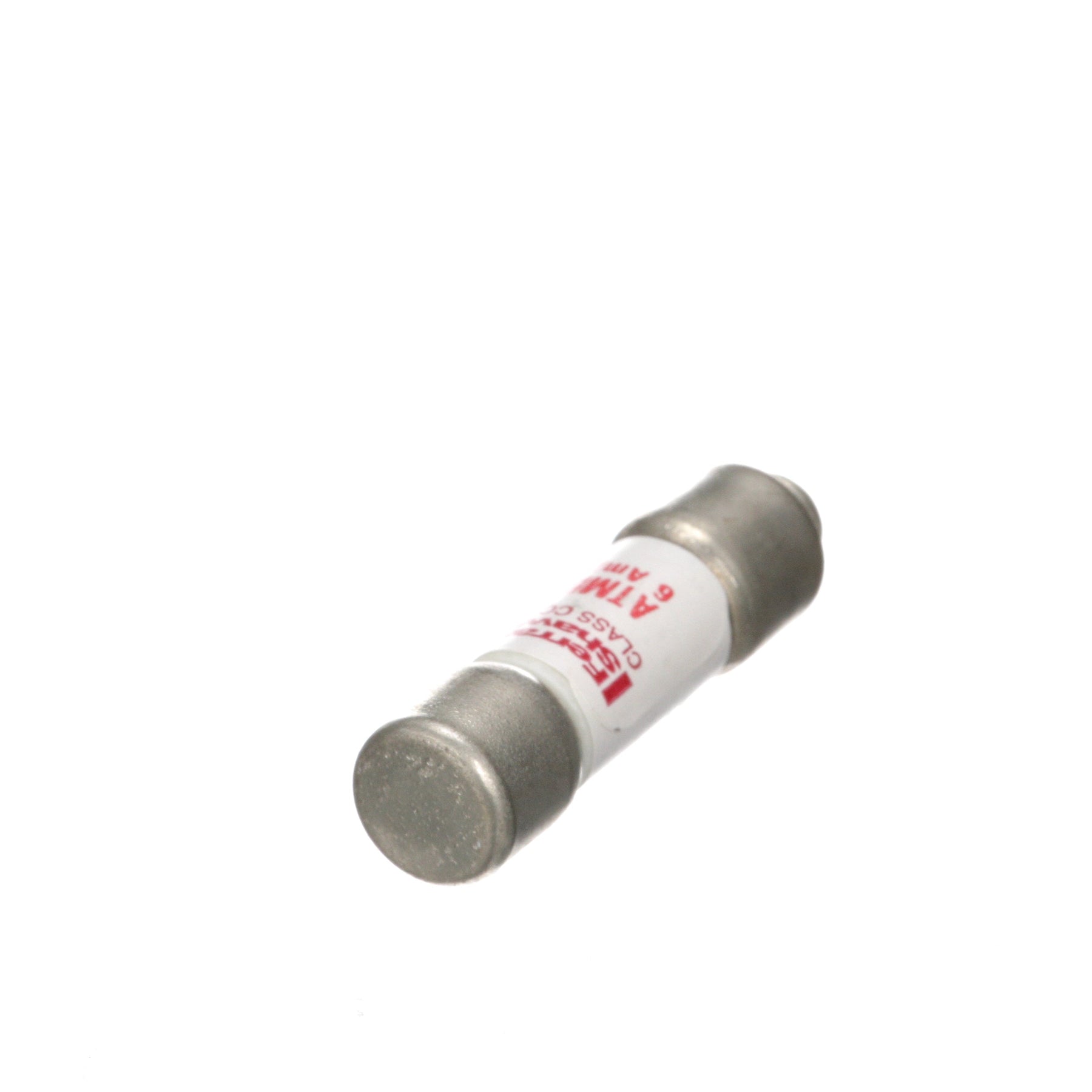

Mersen ATMR6 is a Class CC low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 6A current capacity and 200kA interrupting capacity at rated voltage, housed in a compact 1-1/2" cylindrical body with 0.41" diameter. The UL/CSA certified fuse utilizes Mersen's Amp-Trap technology with single-barrel construction for reliable overcurrent protection in demanding environments. Typical applications include motor control centers, transformers, and power distribution equipment requiring precise fault current interruption.

Key Features & Specifications

• Type: Class CC current-limiting fuse with Amp-Trap technology
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 1-1/2" length x 0.41" diameter
• Weight: 5 lb
• Standards: UL/CSA certified
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001903909
• GTIN: 00782001903909
