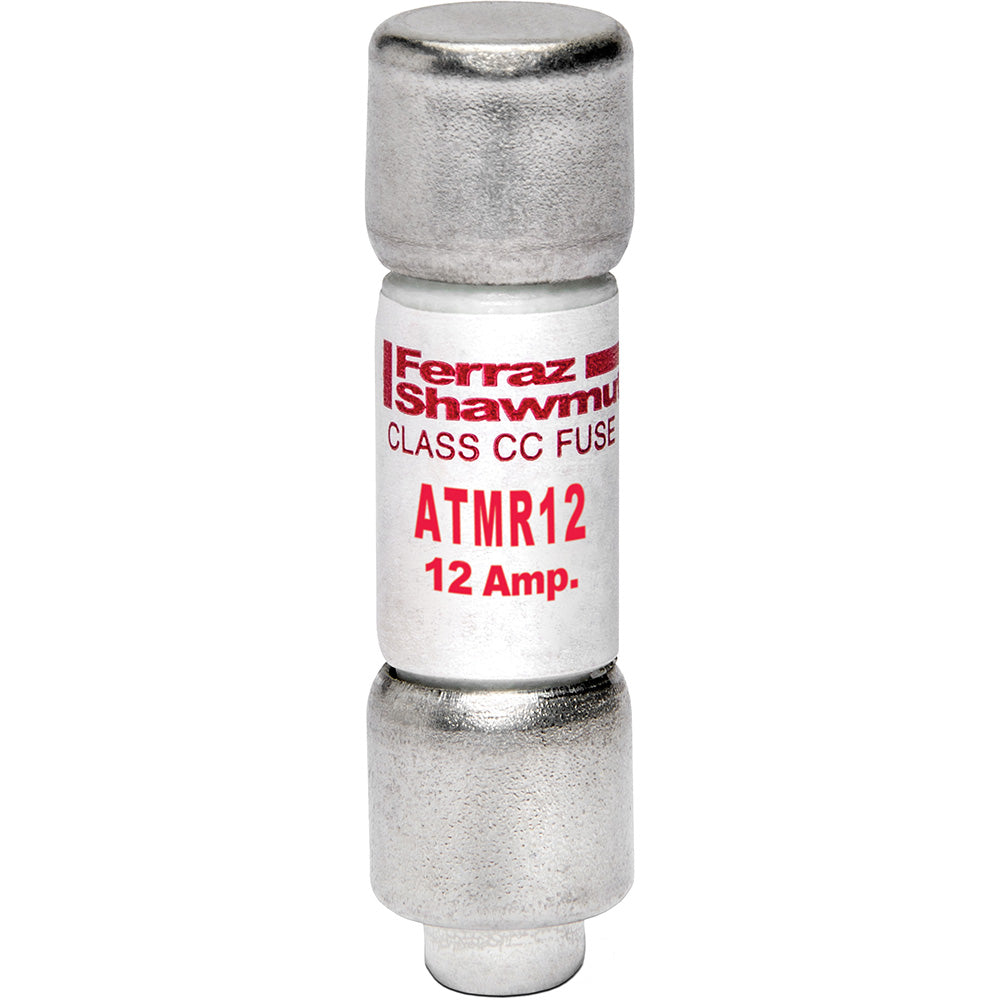

Cutler Hammer ATMR12 - Class CC Fuse 12A 600V (200kA AIC)

Cutler Hammer ATMR12 is a Class CC low-voltage current-limiting fuse designed for protecting control circuits, transformers, and motor loads from short-circuit and overload conditions. It features a 600V AC voltage rating and a 12A current rating, providing reliable circuit protection in industrial applications. The fuse is constructed as a single-barrel design with a compact 1-1/2 inch body length and 0.41 inch diameter, weighing only 0.02 lb for easy installation. Certified to UL/CSA standards, this Amp-Trap series fuse offers 200kA interrupting capacity at 600V AC, ensuring compliance with industrial safety requirements. Typical applications include industrial control panels, transformer protection, and motor branch circuits where space-constrained, high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Control circuits, transformers, motor loads
• AIC rating: 200kA@600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 0.02 lb
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 078200190454
• GTIN: 00782001904548
