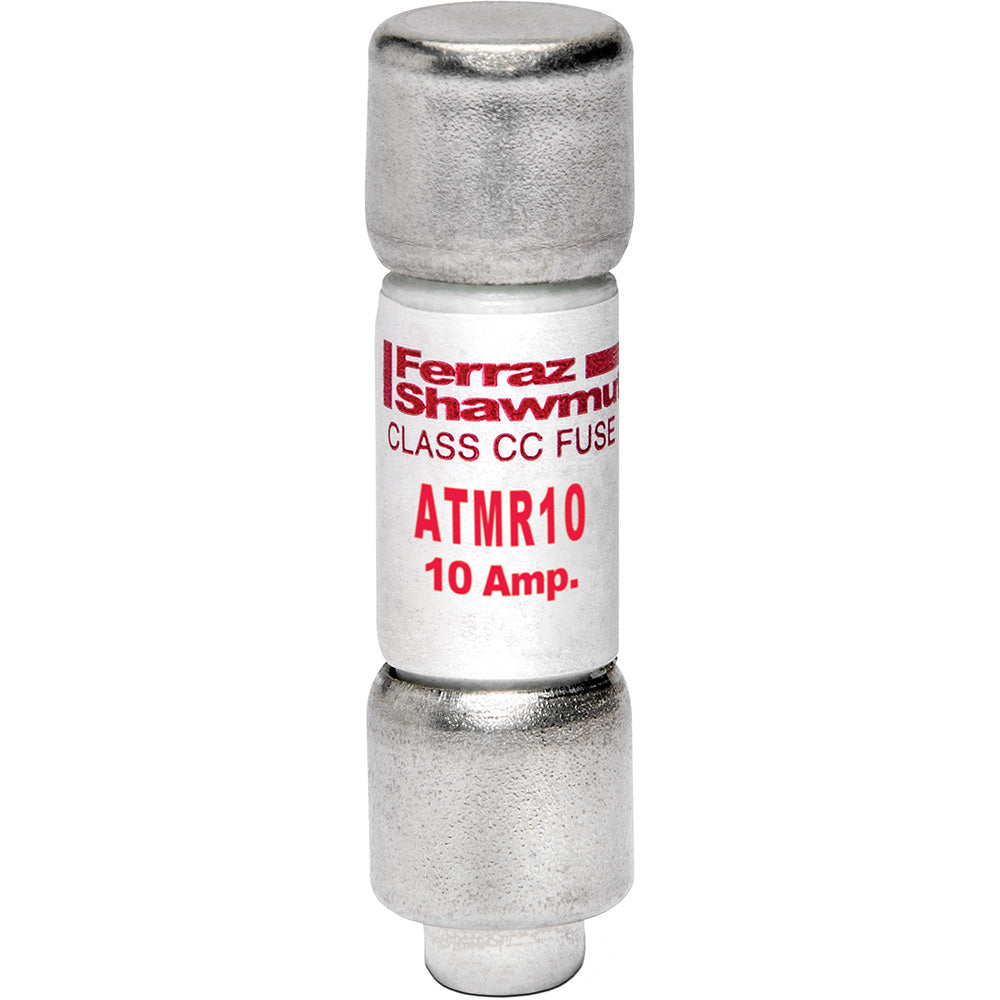

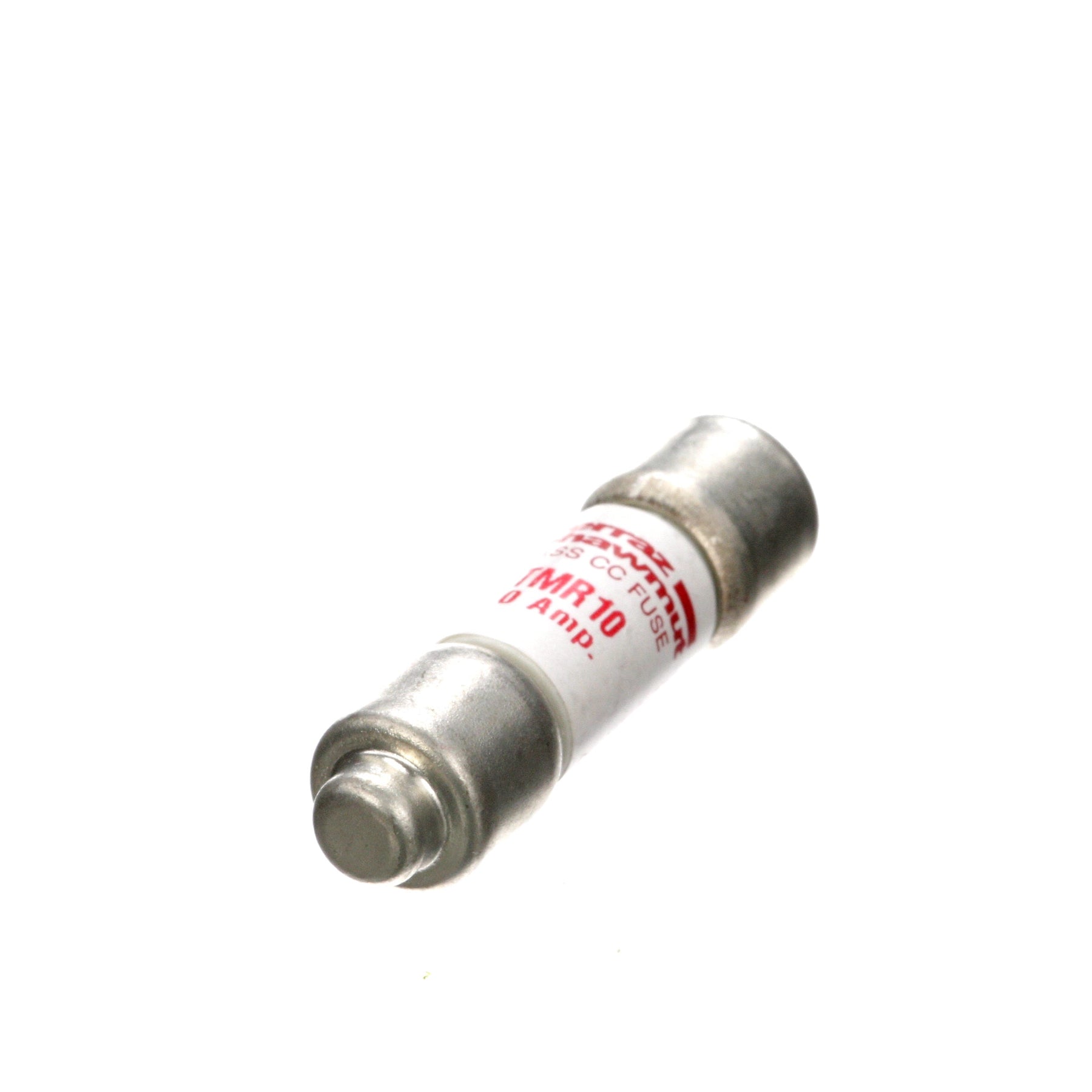

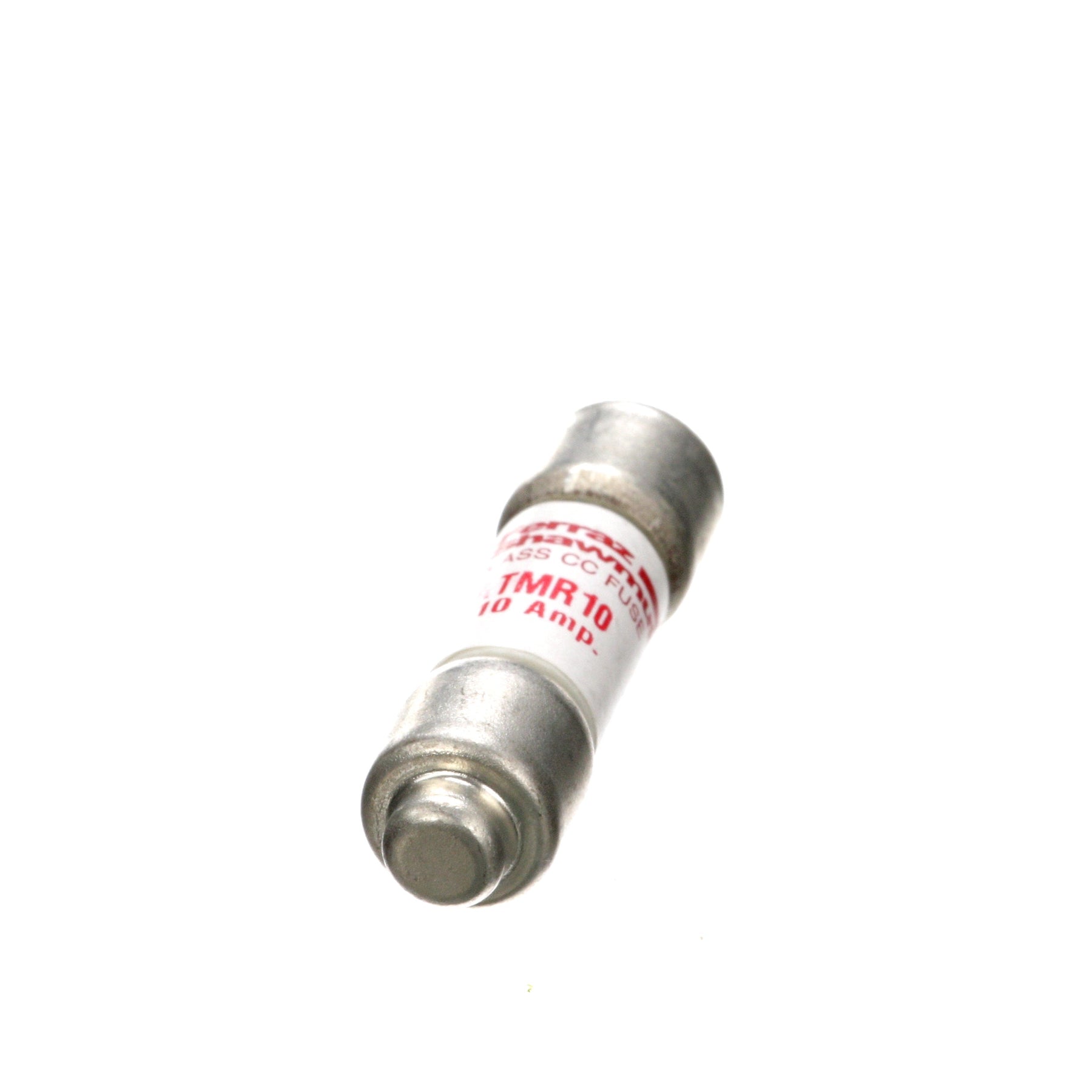

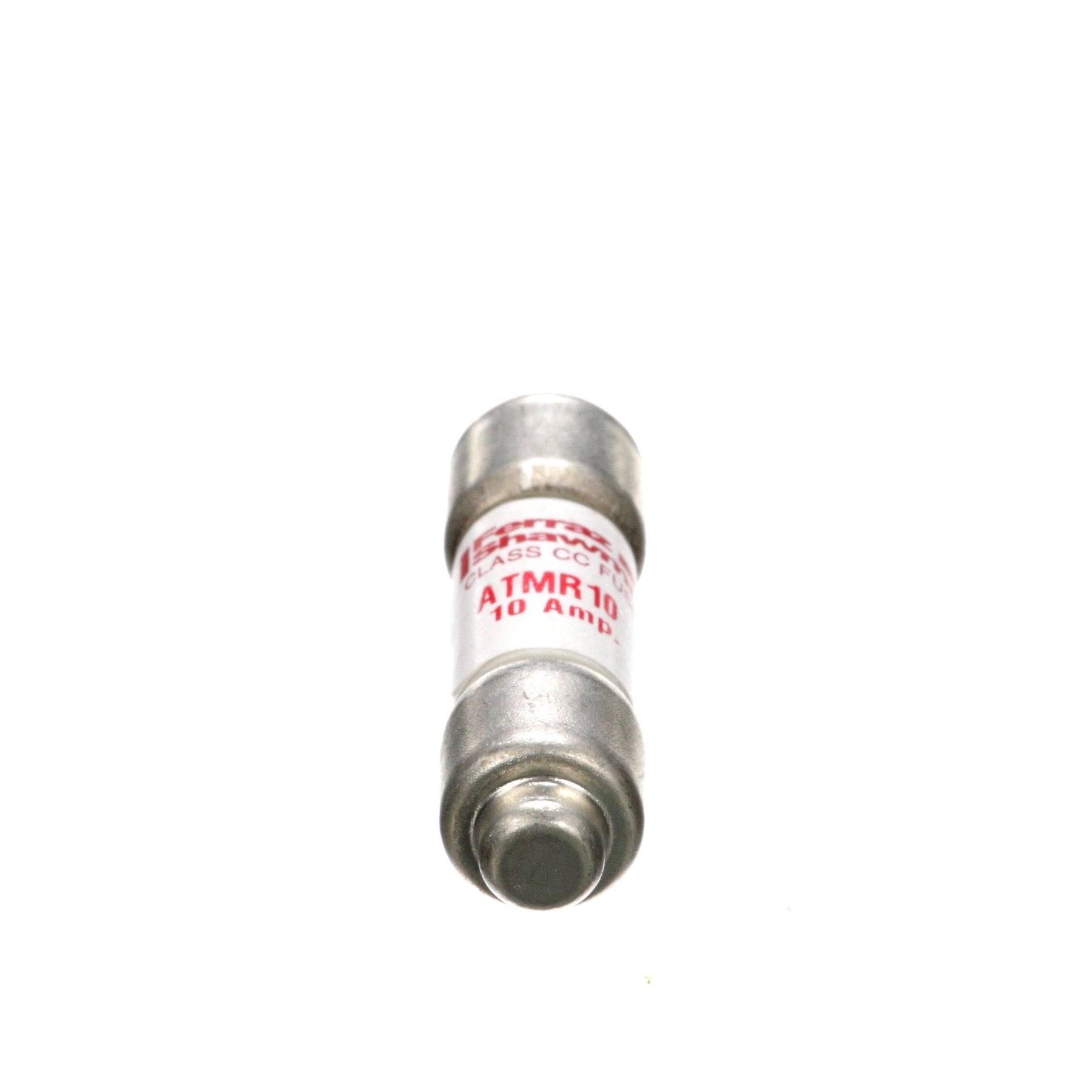

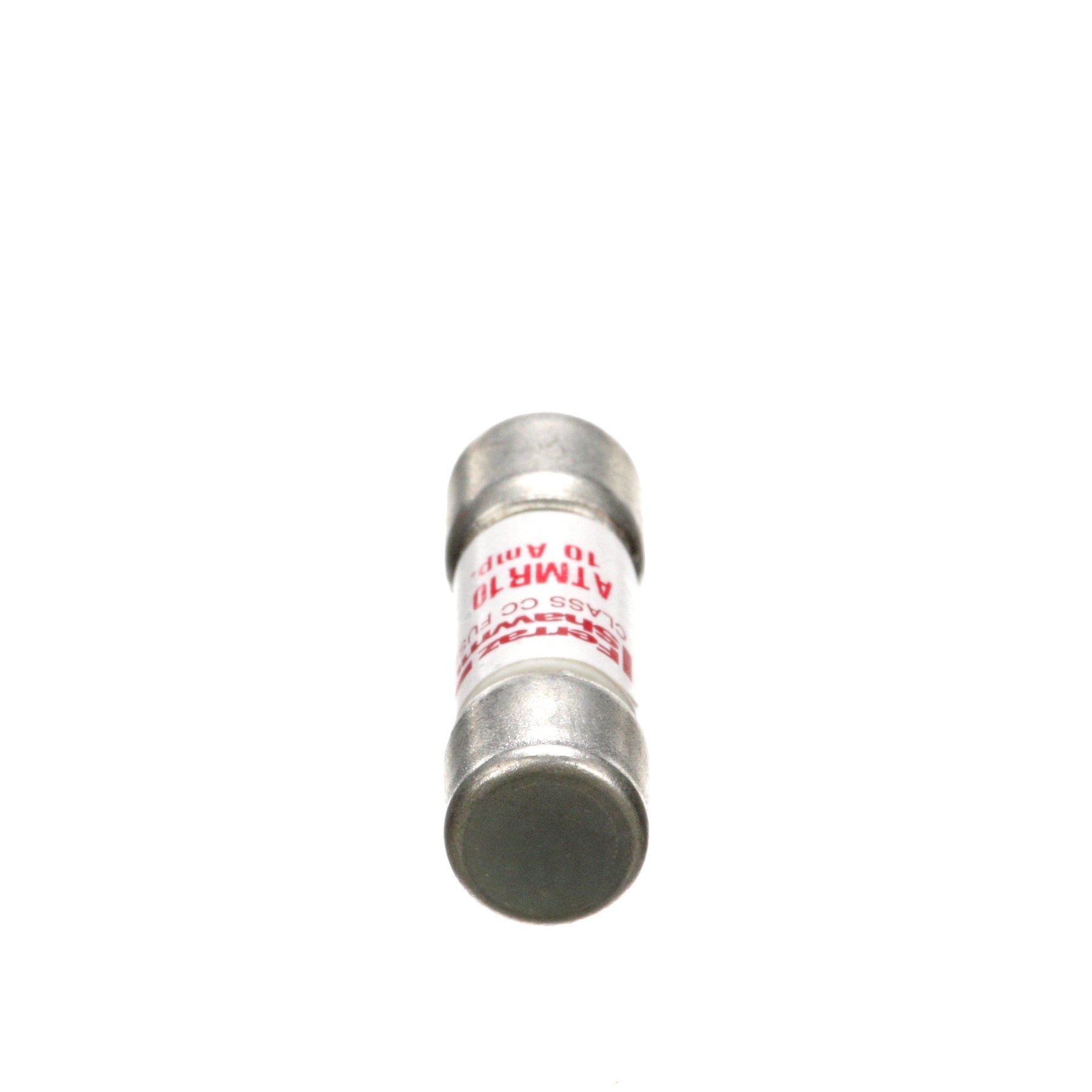

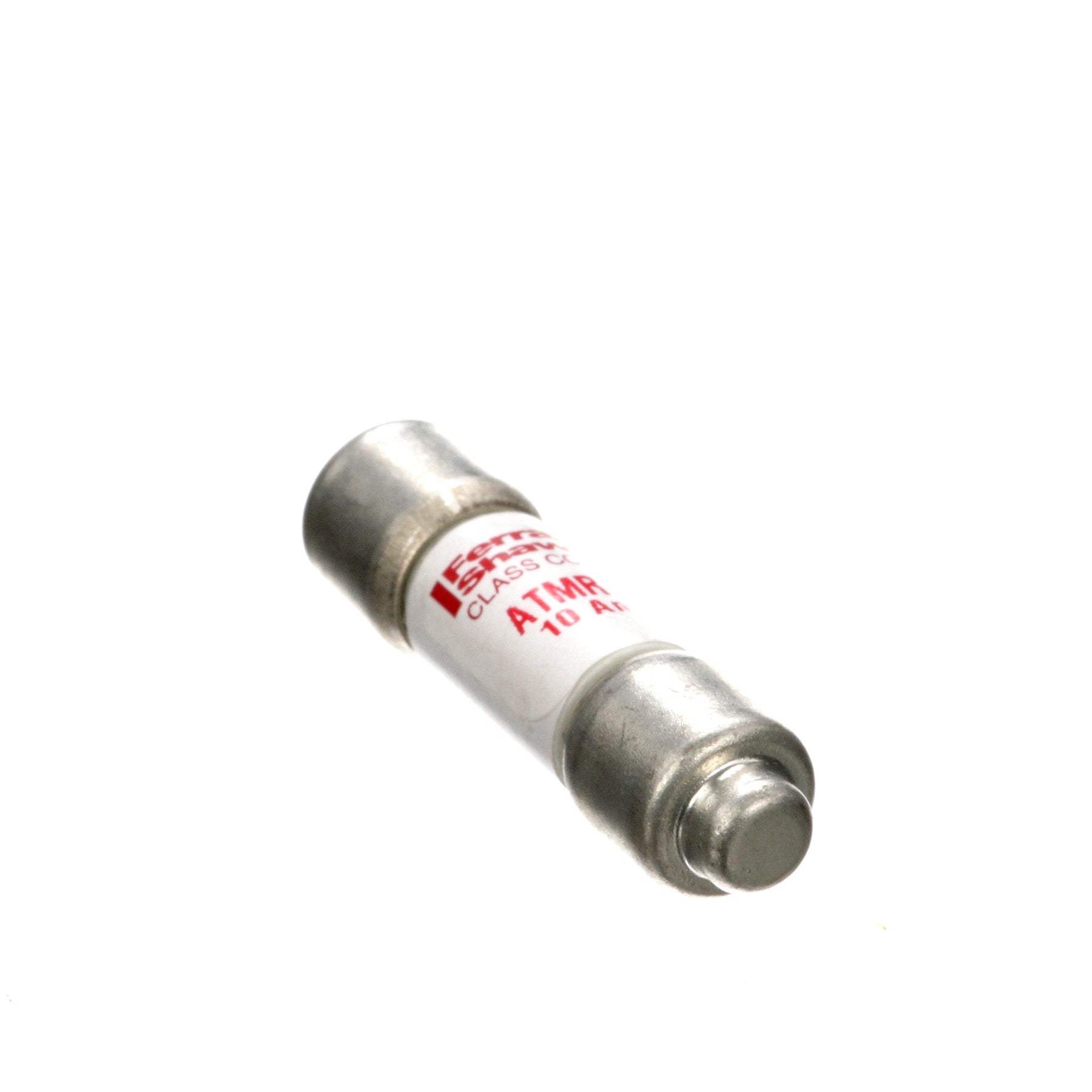

Cutler-Hammer ATMR10 - Class CC Fuse 10A 600V (200kA AIC Rating)

The Cutler-Hammer ATMR10 is a Class CC low-voltage current-limiting fuse designed to provide reliable circuit protection in industrial applications. It features a 10A current rating and 600V AC voltage rating with a high 200kA interrupting capacity at 600V for superior fault protection. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter single-barrel construction and weighs 5 lb. Certified to UL/CSA standards, this Eaton Amp-Trap series fuse meets rigorous industry requirements for safety and performance. Typical applications include protection of control circuits, transformers, and motor circuits where space constraints and high fault currents are concerns.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Control circuits, transformers, motor circuit protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 5 lb
• Certification: UL/CSA
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001904531
• GTIN: 00782001904531
