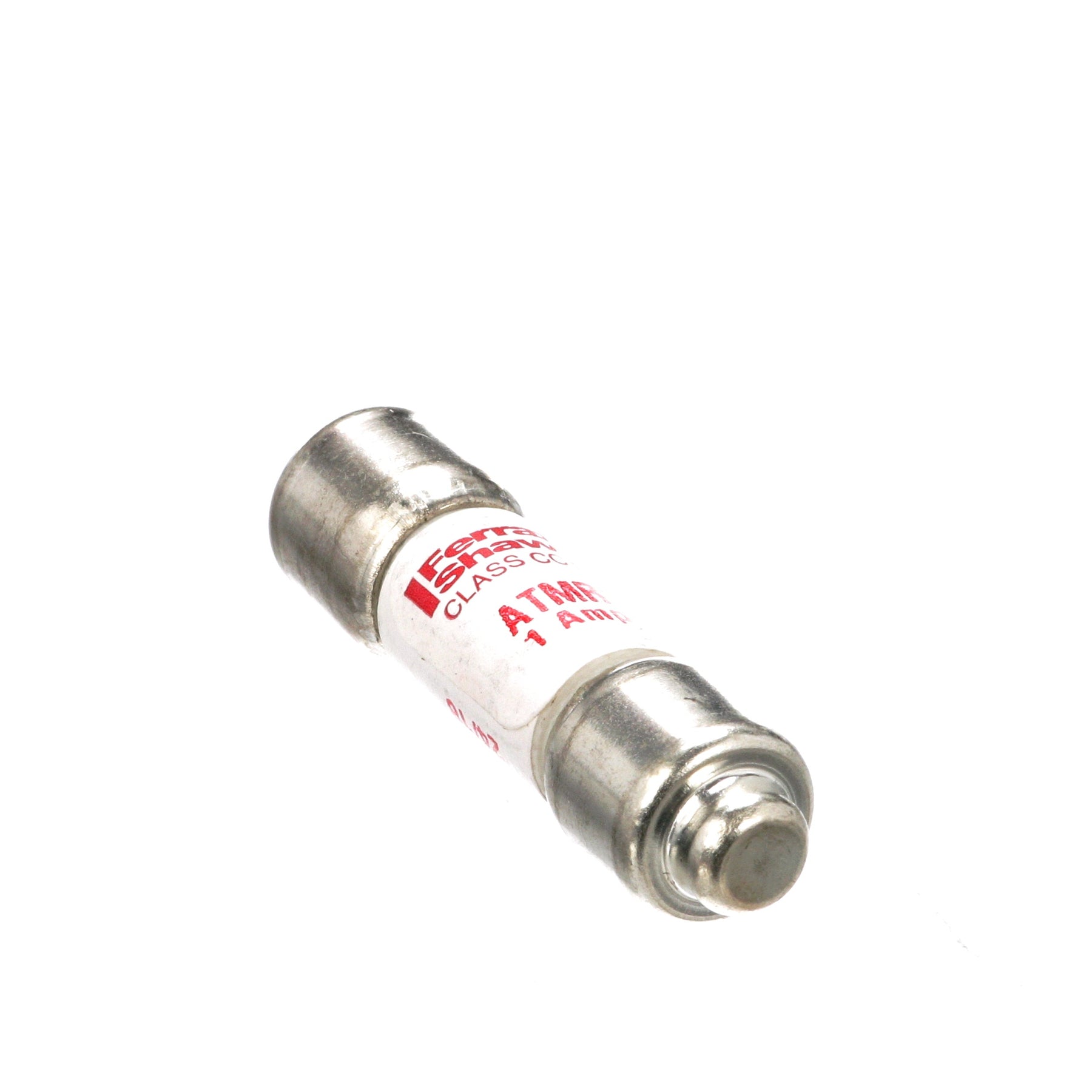

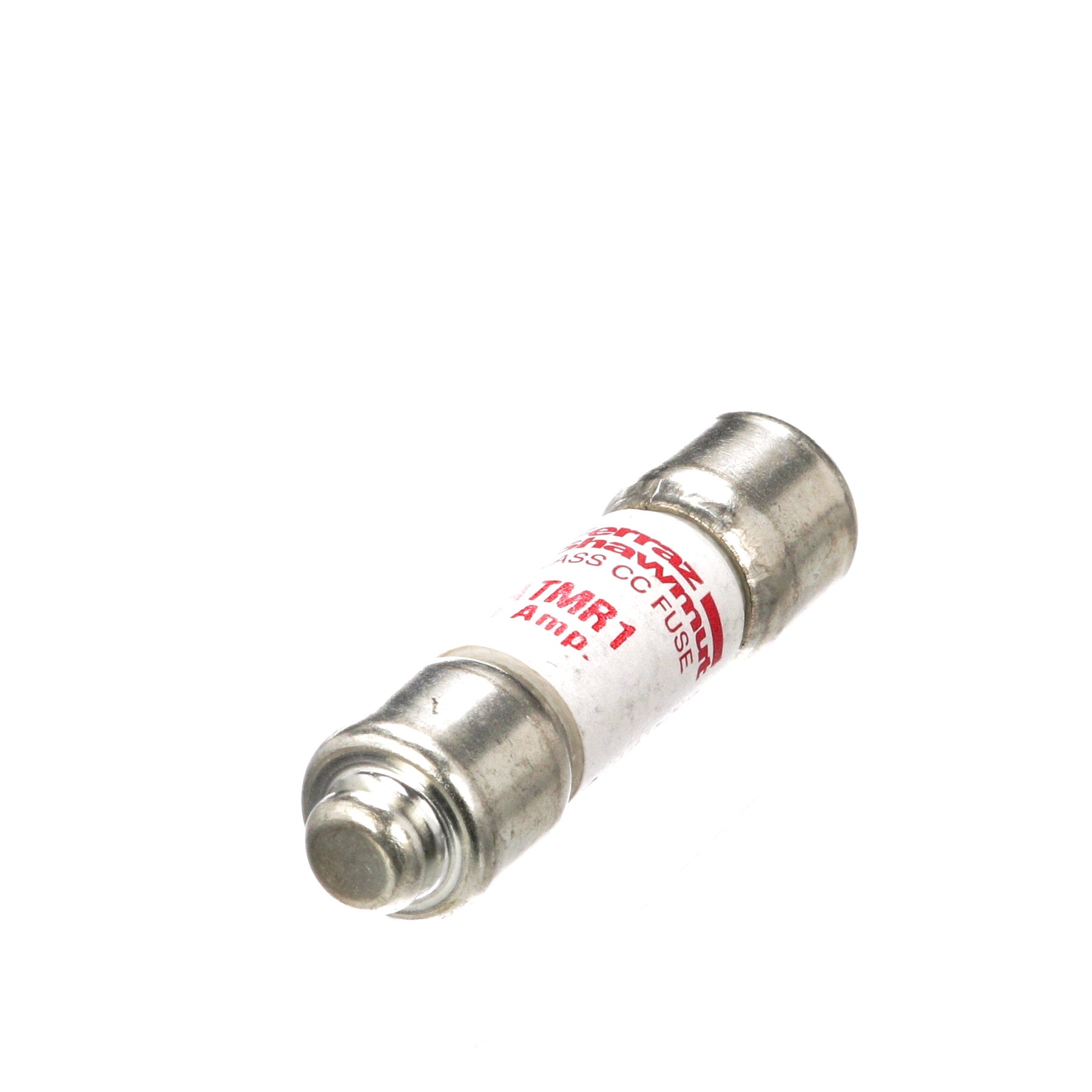

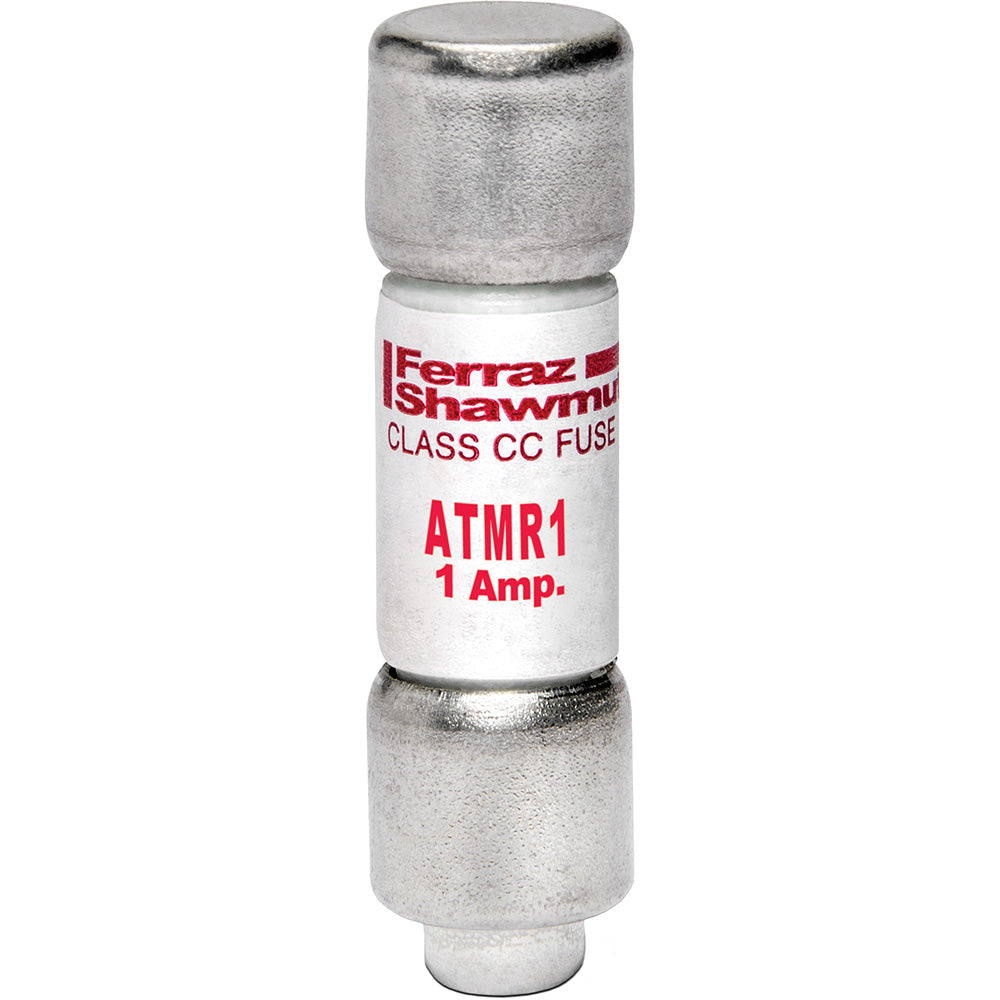

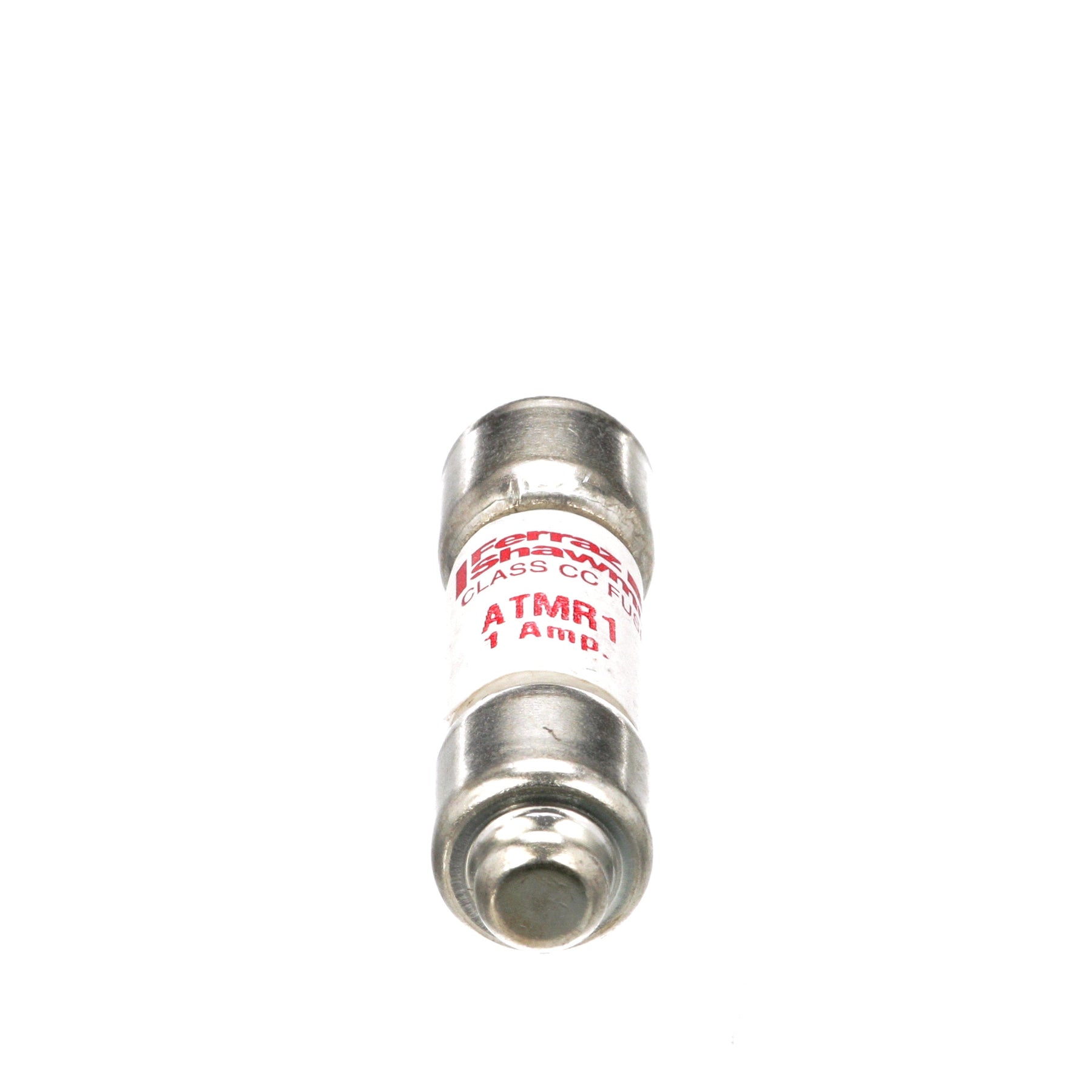

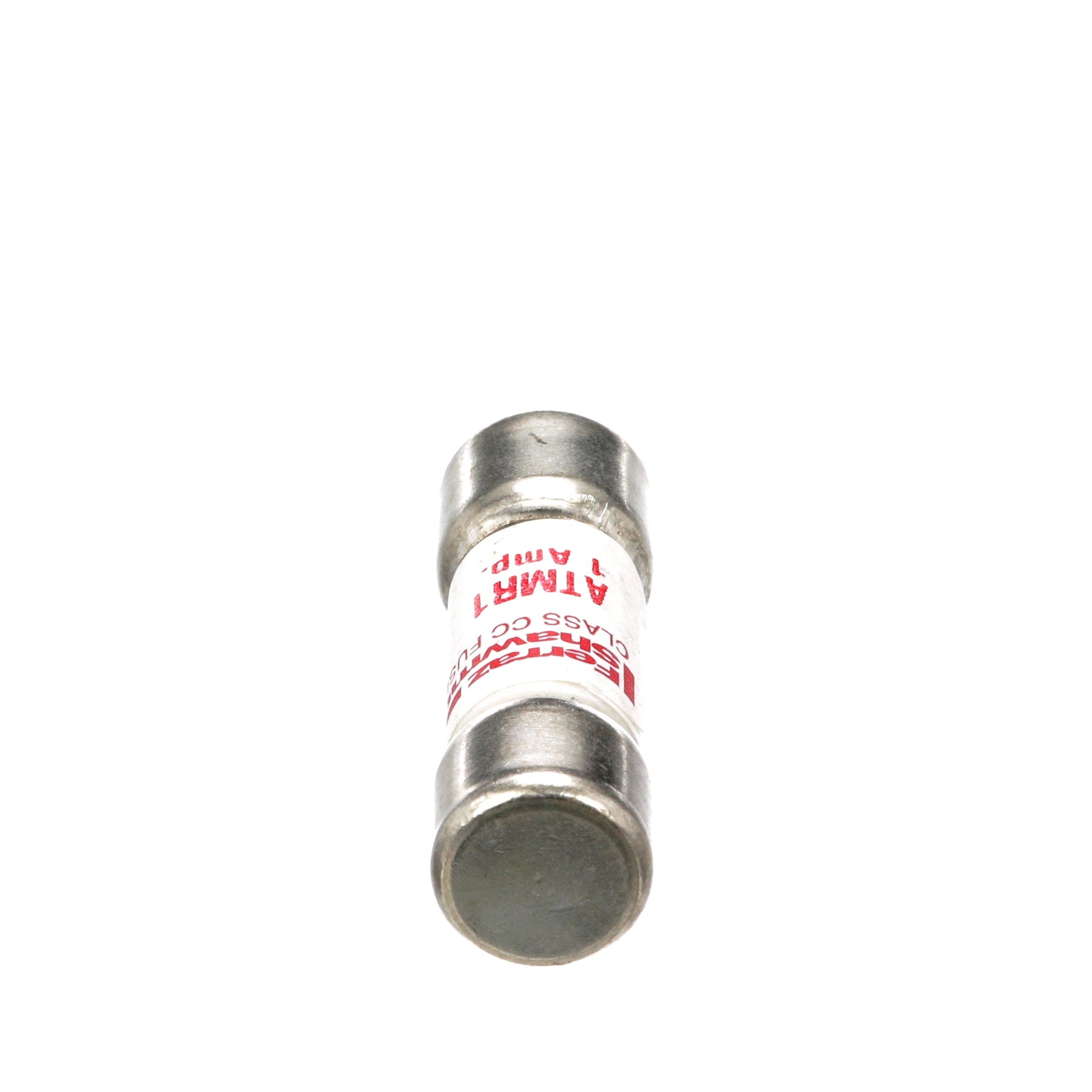

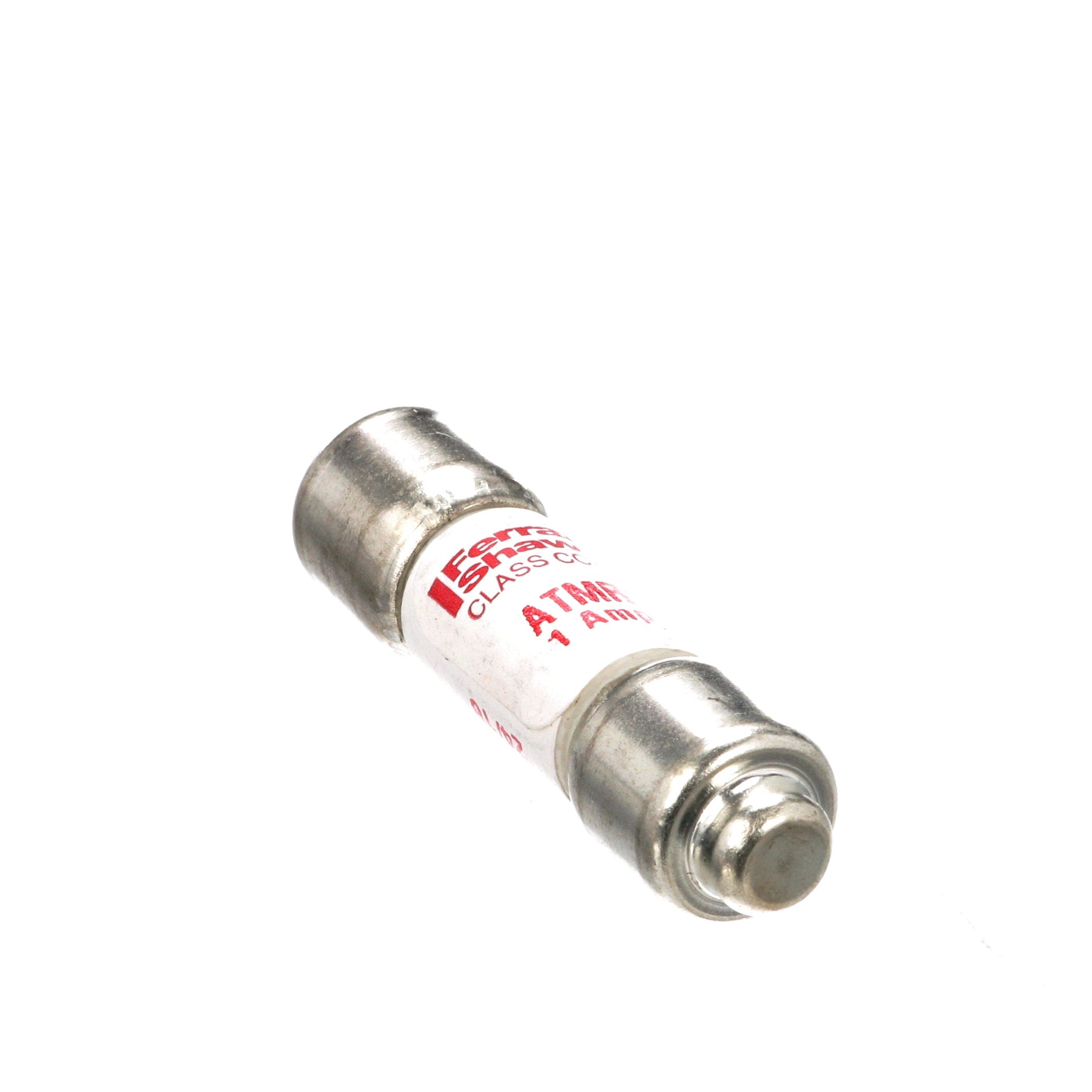

Mersen ATMR1 - Class CC Fuse 1A 600V (200kA AIC)

Mersen ATMR1 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This UL/CSA-certified Class CC fuse features a 600V AC rating and 1A current capacity with a 200kA interrupting rating at 600V for reliable short-circuit protection. The compact cylindrical design measures 1-1/2 inches in length with a 0.41-inch diameter and 5 lb weight, constructed as a single-barrel fuse for space-efficient installations. Compliant with North American safety standards, it's engineered for motor control centers, panelboards, and other equipment requiring precise overcurrent protection in commercial and industrial environments.

Key Features & Specifications

• Type: Current-limiting Class CC fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL/CSA certified
• Applications: Motor control centers, panelboards, industrial equipment
• Class Rating: CC
• AIC rating: 200kA@600V
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001903824
• GTIN: 00782001903824
