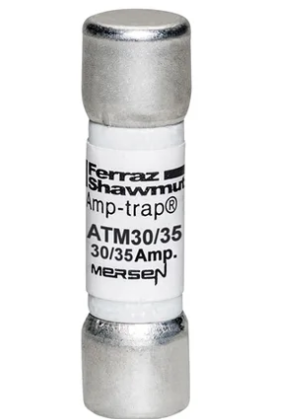

Mersen ATM30/35 - Class AM Fuse 35A 600V (100kA AIC Rating)

Mersen ATM30/35 is a low-voltage fuse designed for motor circuit protection in industrial applications. It features a 600V AC voltage rating with a 35A current rating, providing reliable overload and short-circuit protection. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter and utilizes a single-barrel construction with Class AM rating. Certified to UL and CSA standards, this fuse offers 100kA interrupting capacity at 600V for robust fault protection. Typical applications include motor branch circuits, industrial control panels, and power distribution systems requiring coordinated protection.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, Class AM motor protection
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL, CSA certified
• Applications: Motor circuits, industrial control systems, power distribution
• AIC rating: 100kA @ 600V
• Barrels: 1
• Class Rating: AM
• Weight: 5.19 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001900595
