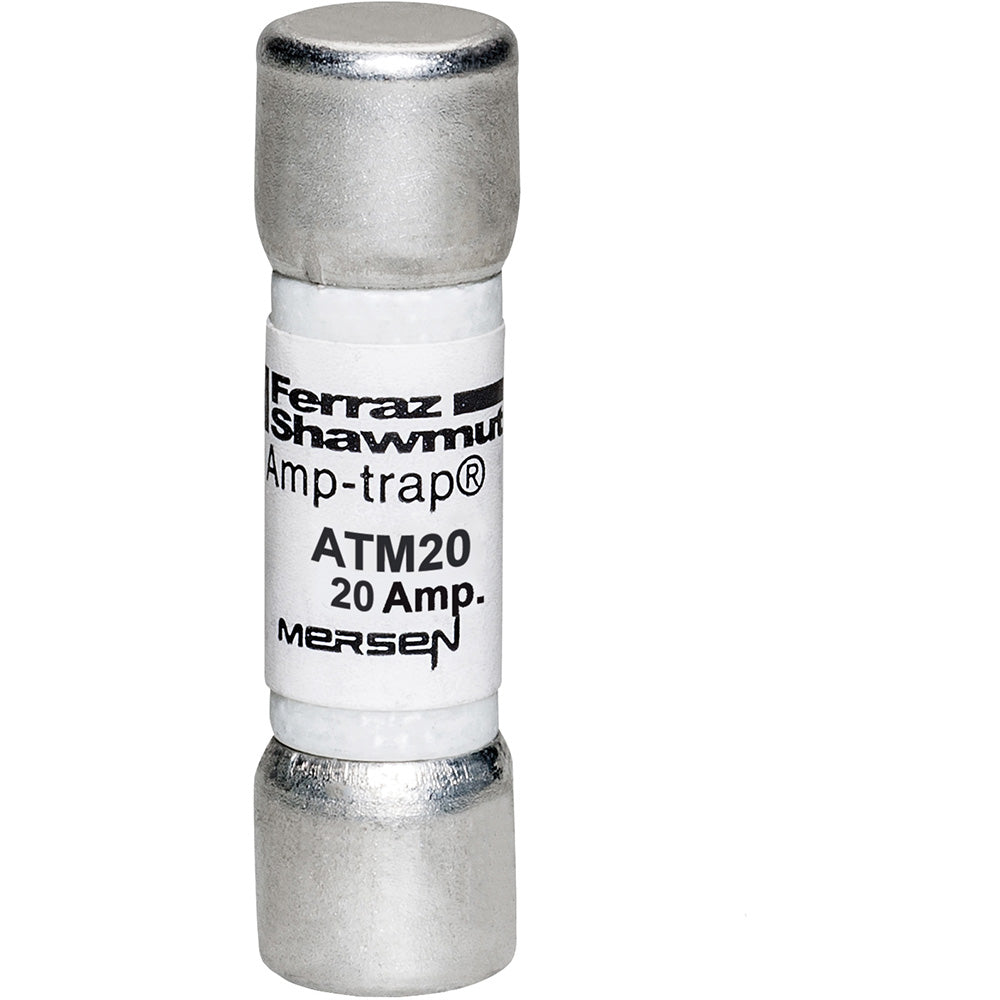

Mersen ATM20 - Midget Fuse 20A 600V (100kA AIC Rating)

Mersen ATM20 is a low-voltage midget fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 20A current capacity and a high interrupting rating of 100kA@600V for reliable short-circuit protection. The compact 1-1/2 inch fuse body with 0.41-inch diameter features a single-barrel design constructed to UL and CSA standards. This Amp-Trap series fuse is manufactured in Mexico for use in motor control centers, panelboards, and other power distribution equipment requiring midget-class protection.

Key Features & Specifications

• Type: ATM class midget fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 20A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Weight: 5 lb
• Standards: UL, CSA certified
• AIC Rating: 100kA@600V
• Class Rating: Midget
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001900700
• GTIN: 00782001900700
