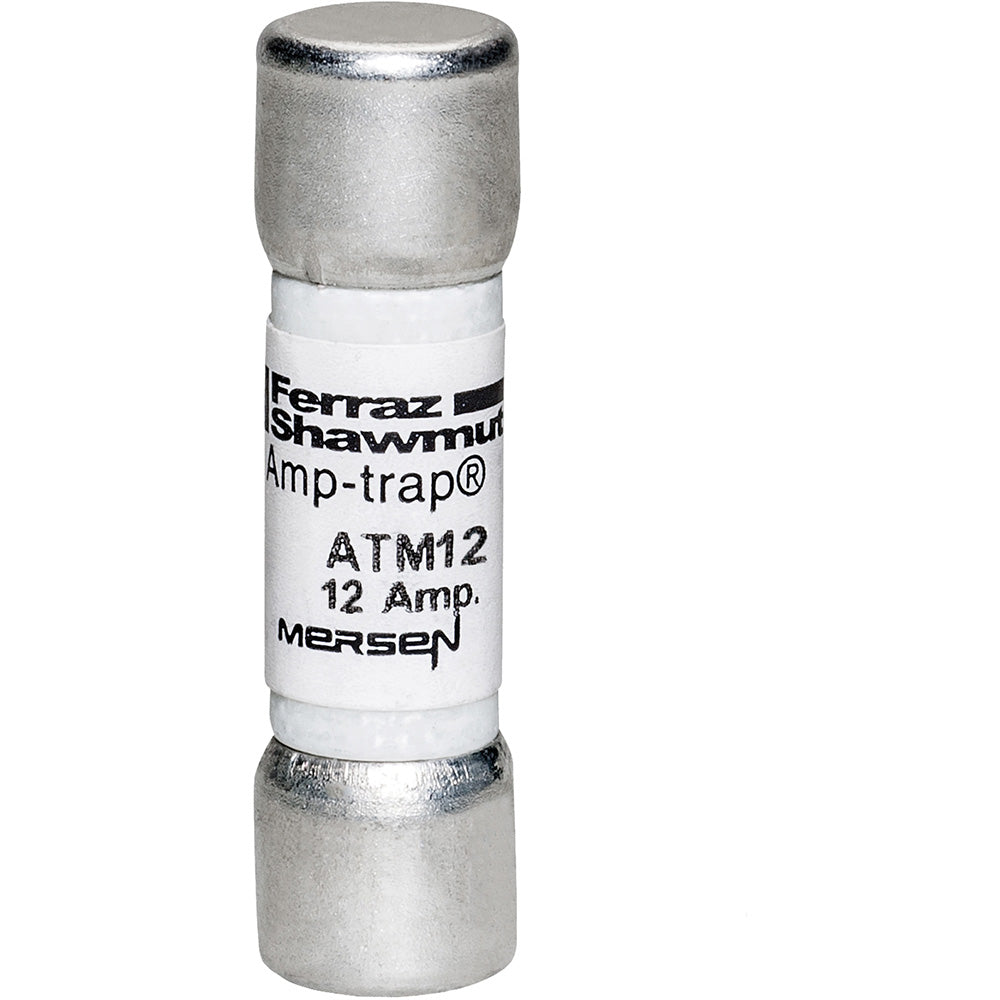

Mersen ATM12 - ATM Class Fuse 12A 600V (100kA AIC)

Mersen ATM12 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 600V-rated fuse handles 12A continuous current with a 100kA interrupting capacity at rated voltage, featuring a compact midget-class design with a 0.41-inch diameter and 1-1/2-inch length. Constructed with a single-barrel configuration and weighing 5 lb, it meets CSA and UL safety standards for reliable overcurrent protection in motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (ATM class)
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: CSA, UL listed
• Applications: Motor controls, transformers, power distribution
• Class Rating: Midget
• Barrels: 1
• AIC rating: 100kA@600V
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001900687
• GTIN: 00782001900687
