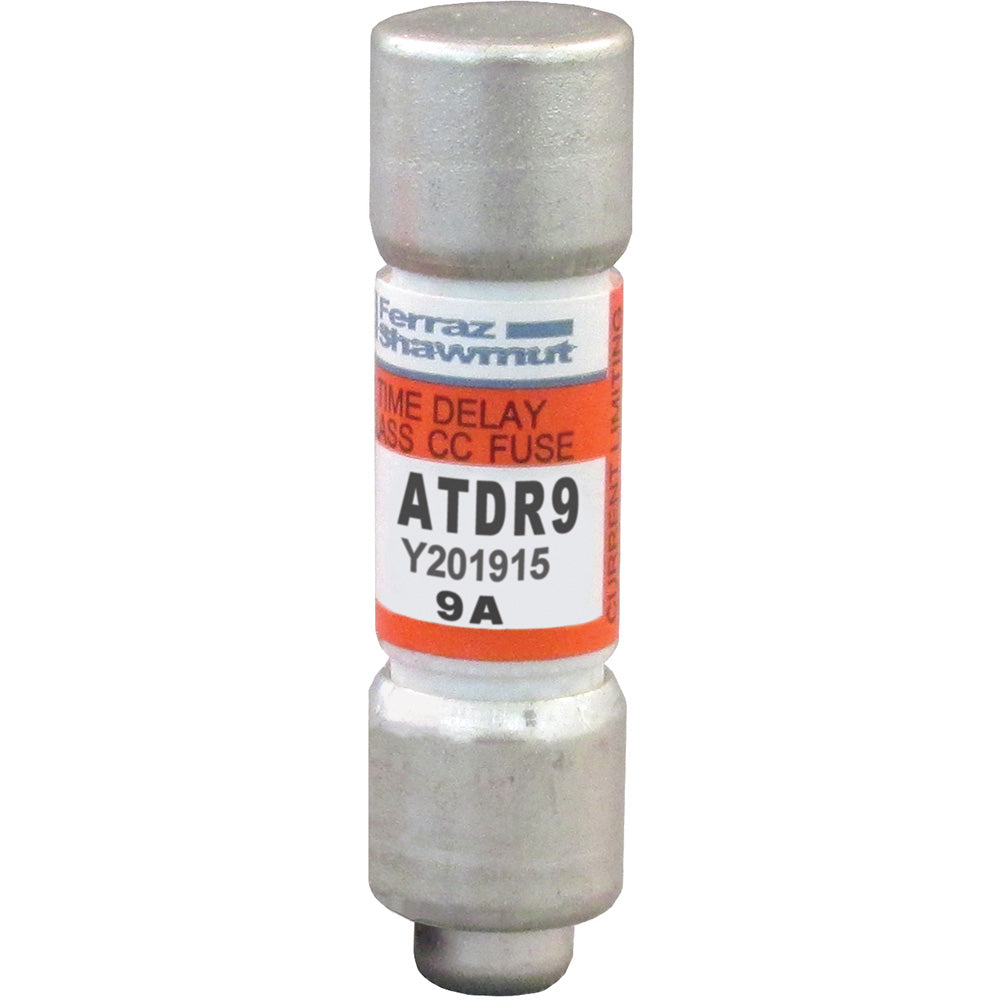

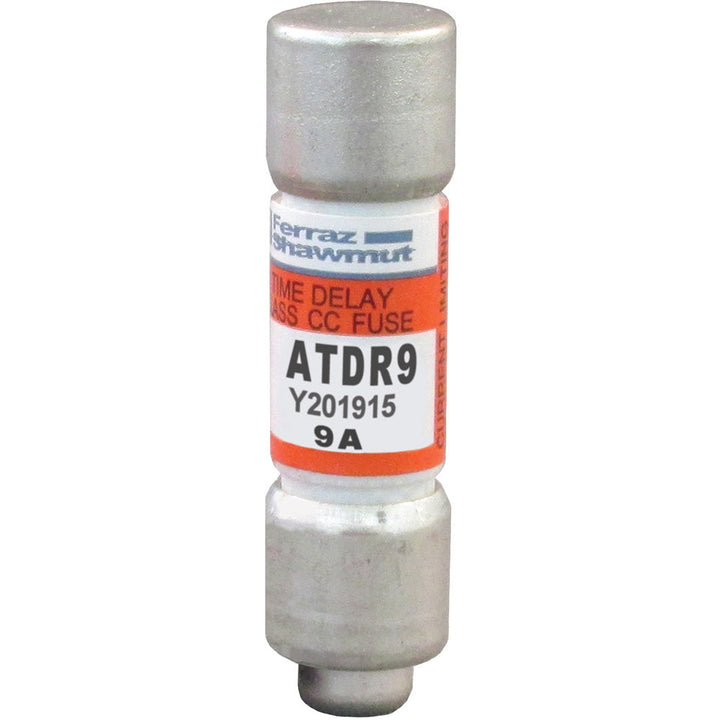

Mersen ATDR9 - Class CC Fuse 600V/9A (200kA AIC)

Mersen ATDR9 is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating with a 9A current rating and 200kA interrupting capacity at 600V for reliable short-circuit protection. The compact 1-1/2 inch cylindrical design (0.41 inch diameter) with single-barrel construction weighs 0.02 lb and meets UL/CSA safety standards. This Class CC fuse is engineered for protecting control circuits, transformers, and sensitive equipment in manufacturing plants, power distribution systems, and commercial facilities.

Key Features & Specifications

• Type: Current-limiting fuse with silver element in ceramic body
• Voltage Rating: 600V AC/DC
• Current Rating: 9A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL/CSA certified
• Applications: Industrial control circuits, transformers, motor protection
• Class Rating: CC
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 0.02 lb

Product Identification

• UPC: 782001908607
• GTIN: 00782001908607
