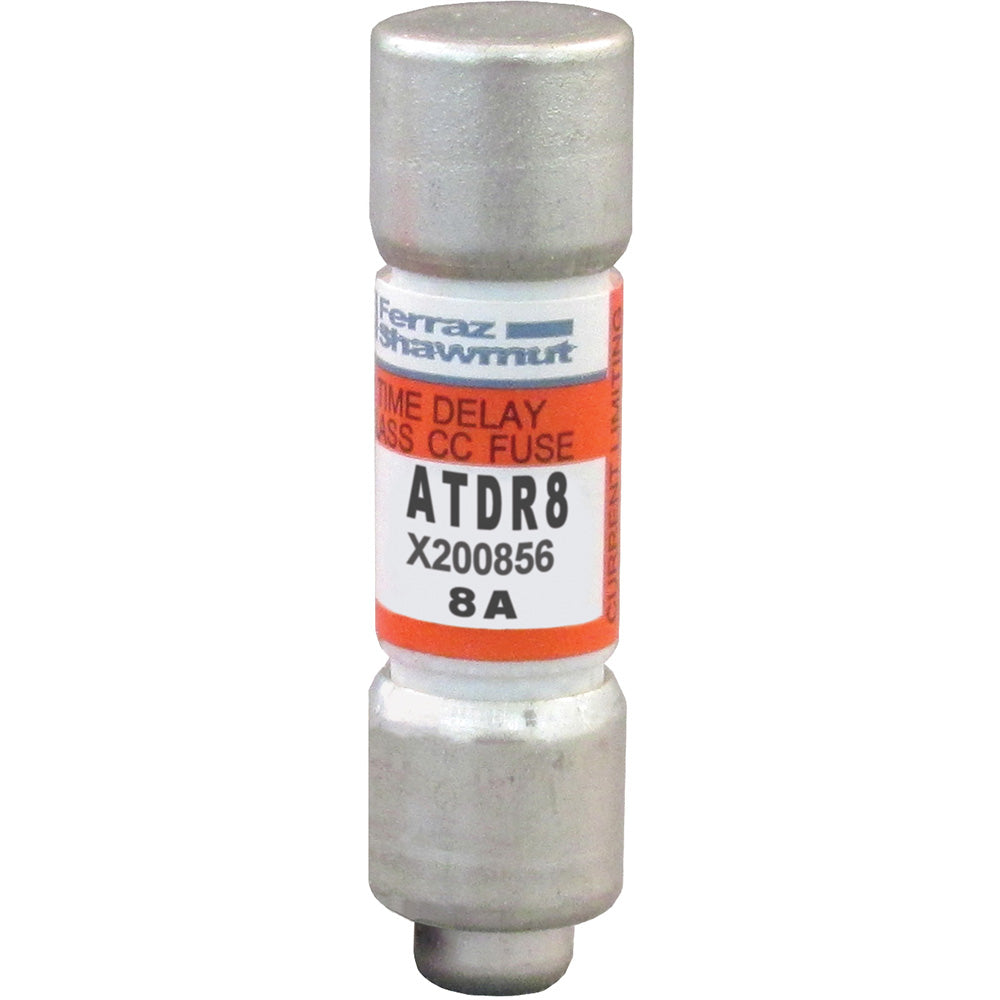

Mersen ATDR8 - Class CC Fuse 8A 600V (200kA AIC Rating)

Mersen ATDR8 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This UL/CSA-certified Class CC fuse features a 600V AC rating with an 8A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The compact 1-1/2" long fuse body with 0.41" diameter contains a single barrel construction with current-limiting technology to protect sensitive equipment. Manufactured in Mexico as part of the Amp-Trap 2000 series, this fuse meets stringent safety standards for industrial power distribution applications including motor control centers and panelboards.

Key Features & Specifications

• Type: ATDR current-limiting fuse (Class CC)
• Voltage Rating: 600V AC
• Current Rating: 8A
• Dimensions: 1-1/2" length x 0.41" diameter
• Weight: 5 lb
• Standards: UL/CSA certified
• AIC Rating: 200kA@600V
• Construction: Single barrel design
• Applications: Industrial power distribution, motor protection

Product Identification

• UPC: 782001901066
• GTIN: 00782001901066
