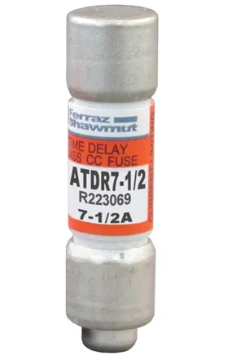

Eaton Cutler-Hammer ATDR7-1/2 - Class CC Fuse 7A 600V (200kA AIC Rating)

Eaton Cutler-Hammer ATDR7-1/2 is a low voltage current-limiting fuse designed for protecting sensitive electrical components and control circuits from short-circuit faults. It features a 7A current rating and 600V AC voltage rating, providing reliable circuit interruption. The fuse has a compact physical profile measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs 0.02 lb, constructed as a single-barrel design. Certified to UL/CSA standards, this Class CC fuse meets industry requirements for safety and performance. Typical applications include industrial control panels, motor control centers, and transformer protection where high interrupting capacity up to 200kA at 600V is necessary.

Key Features & Specifications

• Type: ATDR current-limiting fuse, Class CC rating, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 7A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Control circuits, transformer protection, motor control centers
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 0.02 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001908591
• GTIN: 00782001908591
