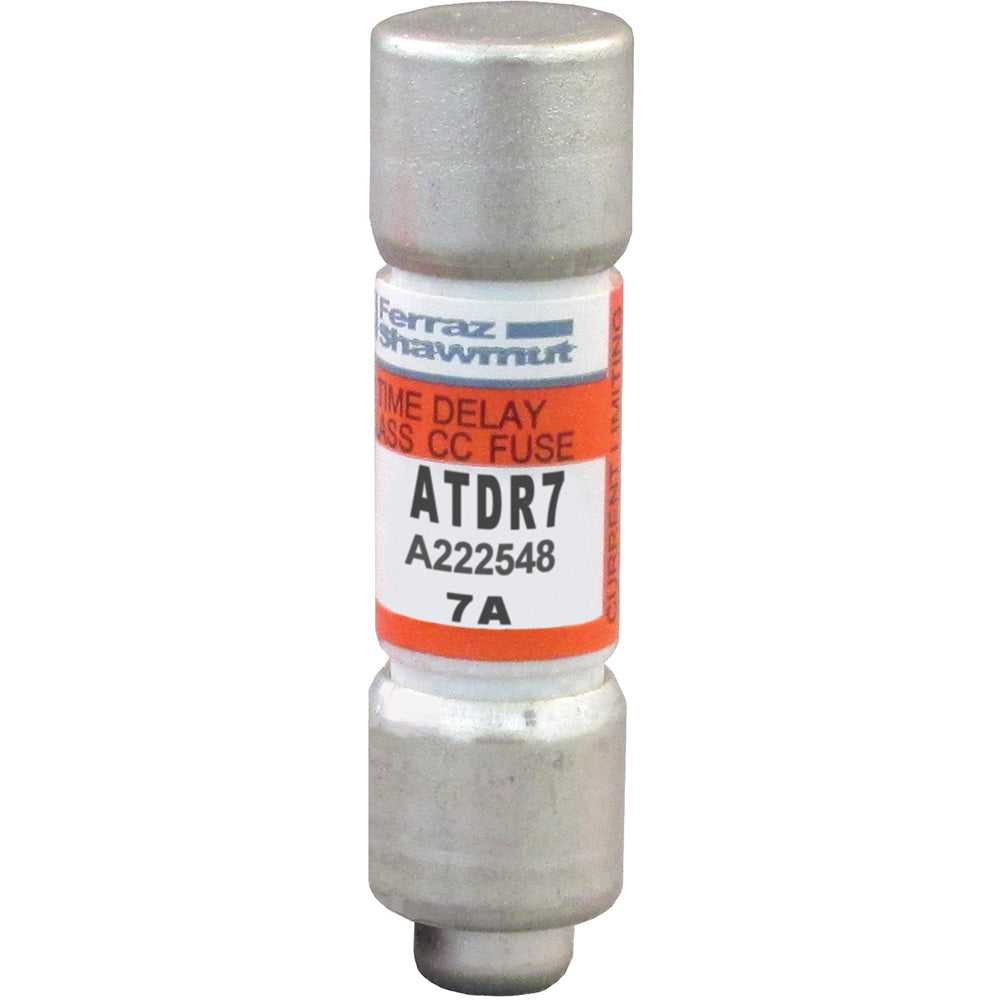

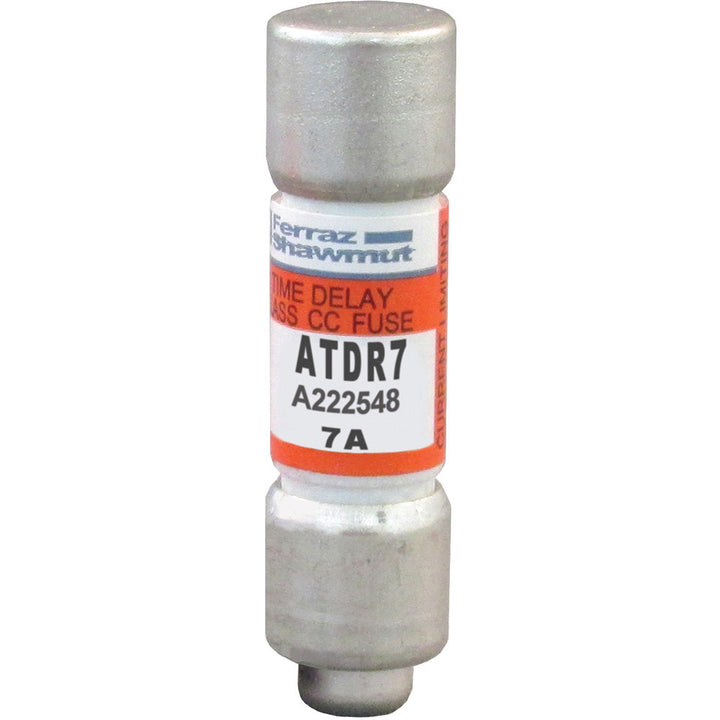

Mersen ATDR7 - Class CC Fuse 600V/7A (200kA AIC)
Regular price
$13.23
$13.23
Regular price
$78.76
$78.76
Sale price
$13.23
$13.23
Save $65.53
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen ATDR7 is a Class CC low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 7A current capacity and 200kA interrupting capacity at rated voltage, housed in a compact 1-1/2-inch cylindrical body with 0.41-inch diameter. UL/CSA certified, this Amp-Trap 2000 series fuse meets stringent safety standards for overcurrent protection in motor control centers, transformers, and power distribution equipment.
Key Features & Specifications
Key Features & Specifications
- Type: Current-limiting fuse with silver element, ceramic body
- Voltage Rating: 600V AC
- Current Rating: 7A
- Dimensions: 1-1/2 in length x 0.41 in diameter
- Standards: UL/CSA certified
- Applications: Motor controls, transformers, industrial power distribution
- Class Rating: CC
- AIC rating: 200kA@600V
- Barrels: 1
- Weight: 5 lb
- UPC: 782001901059
- GTIN: 00782001901059
