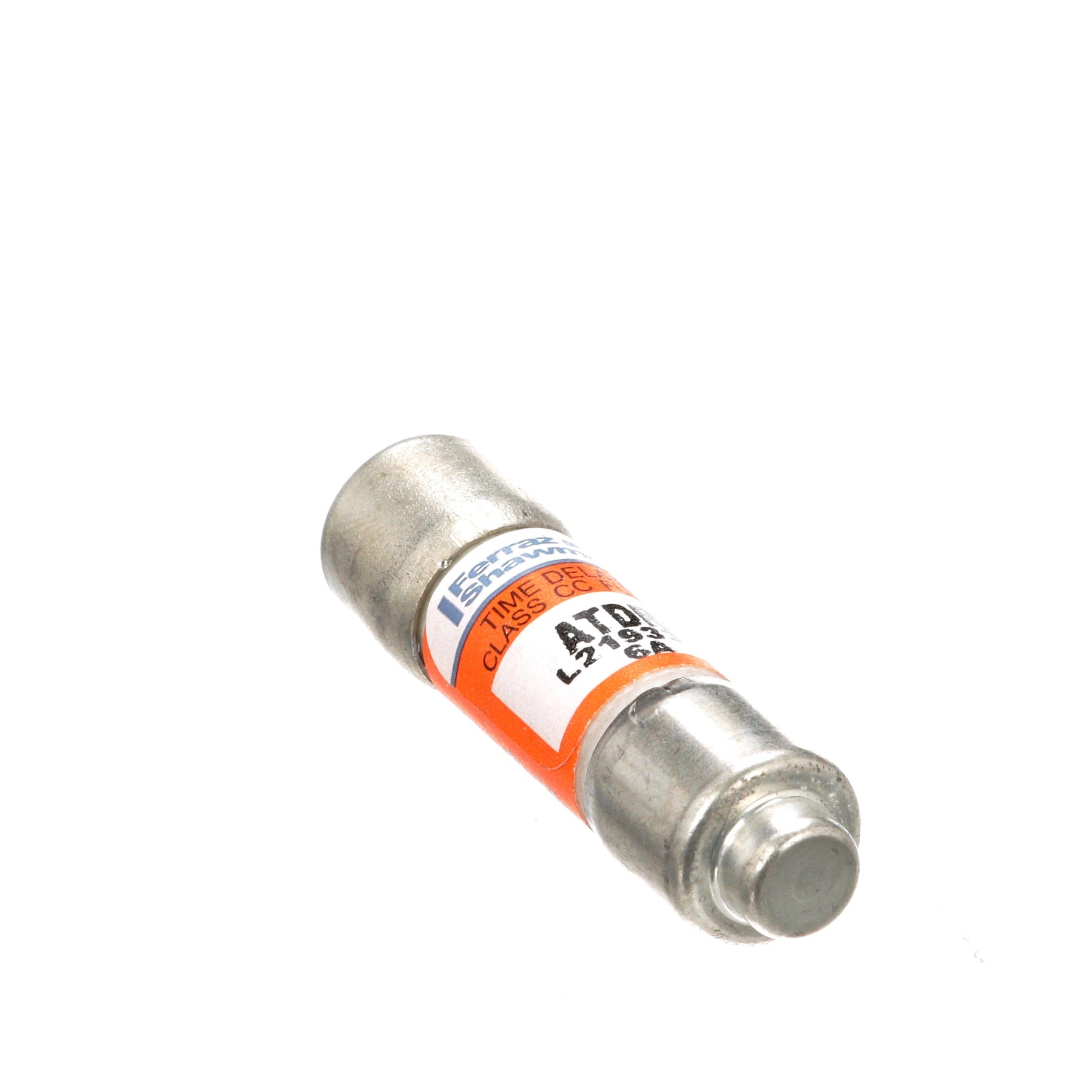

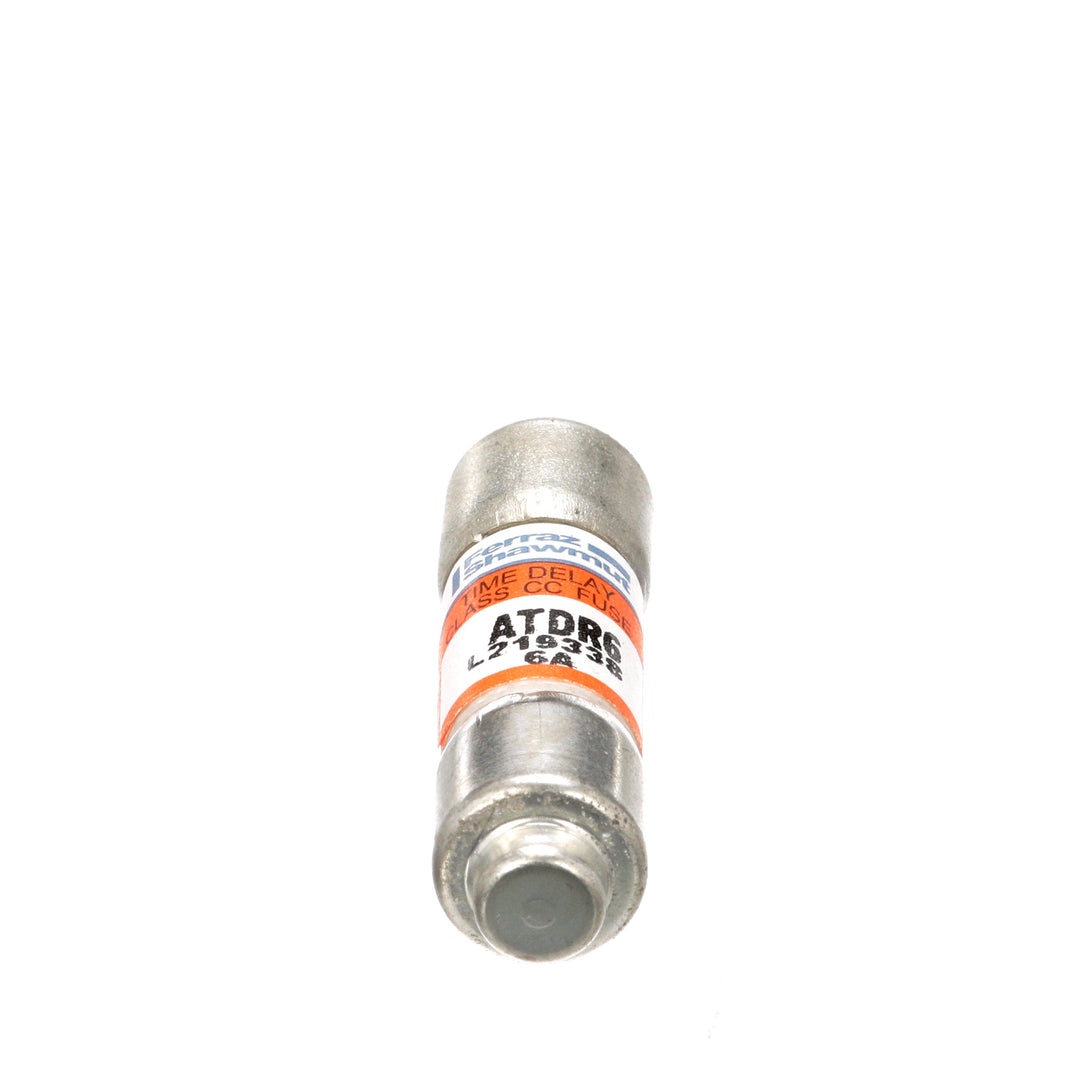

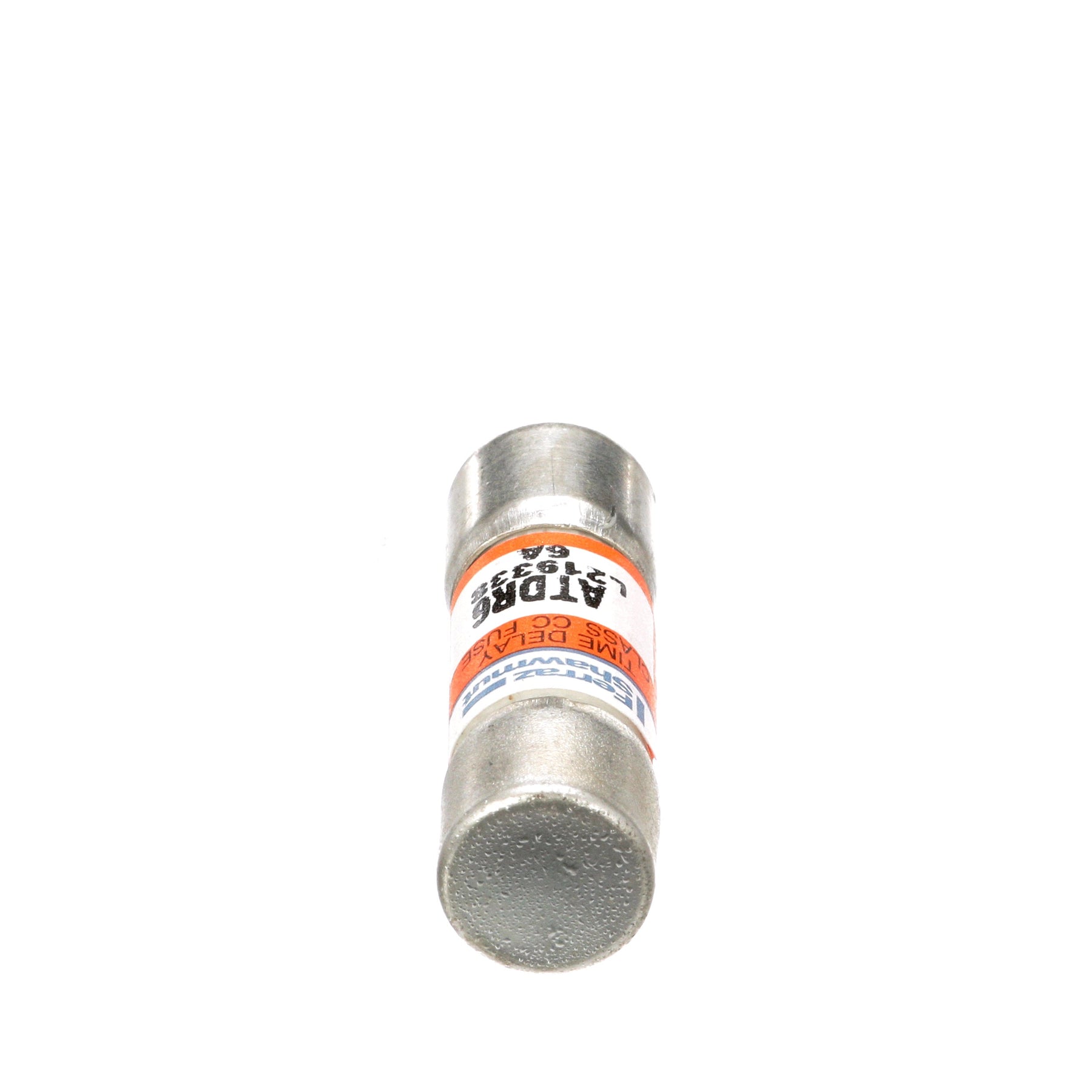

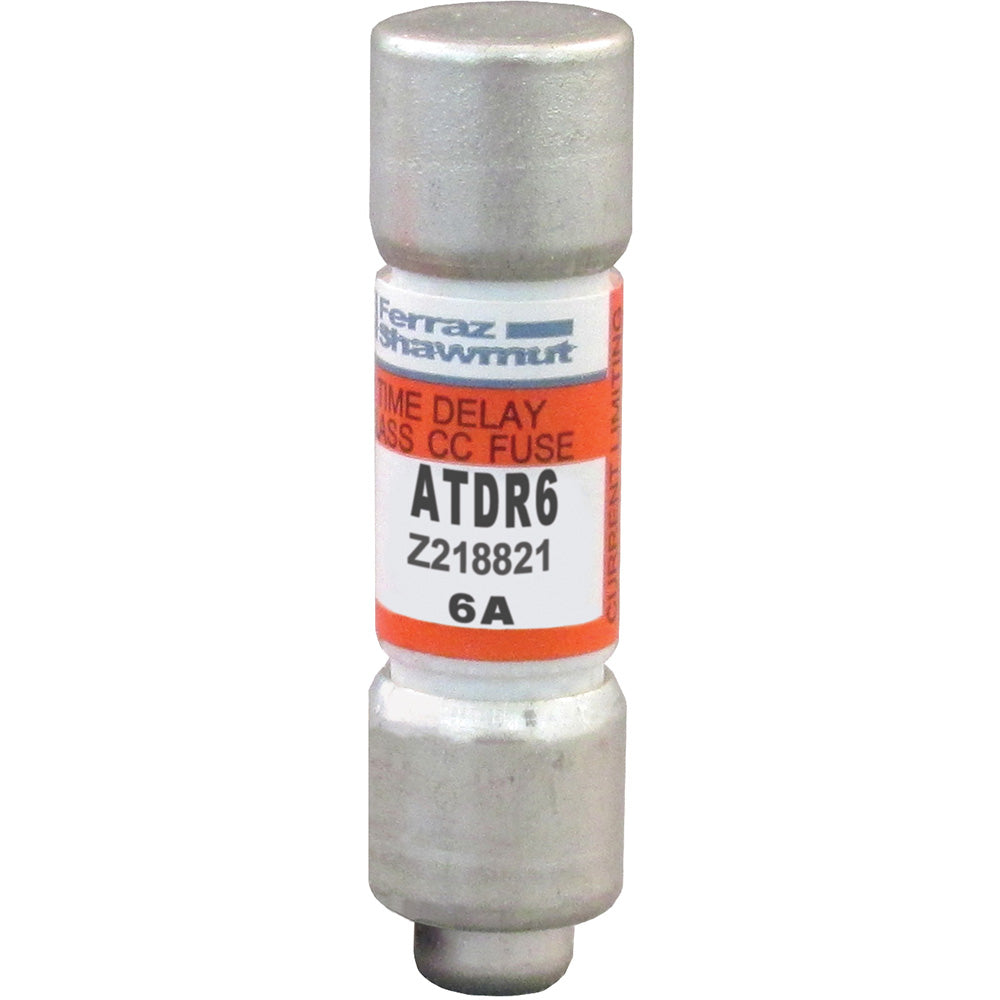

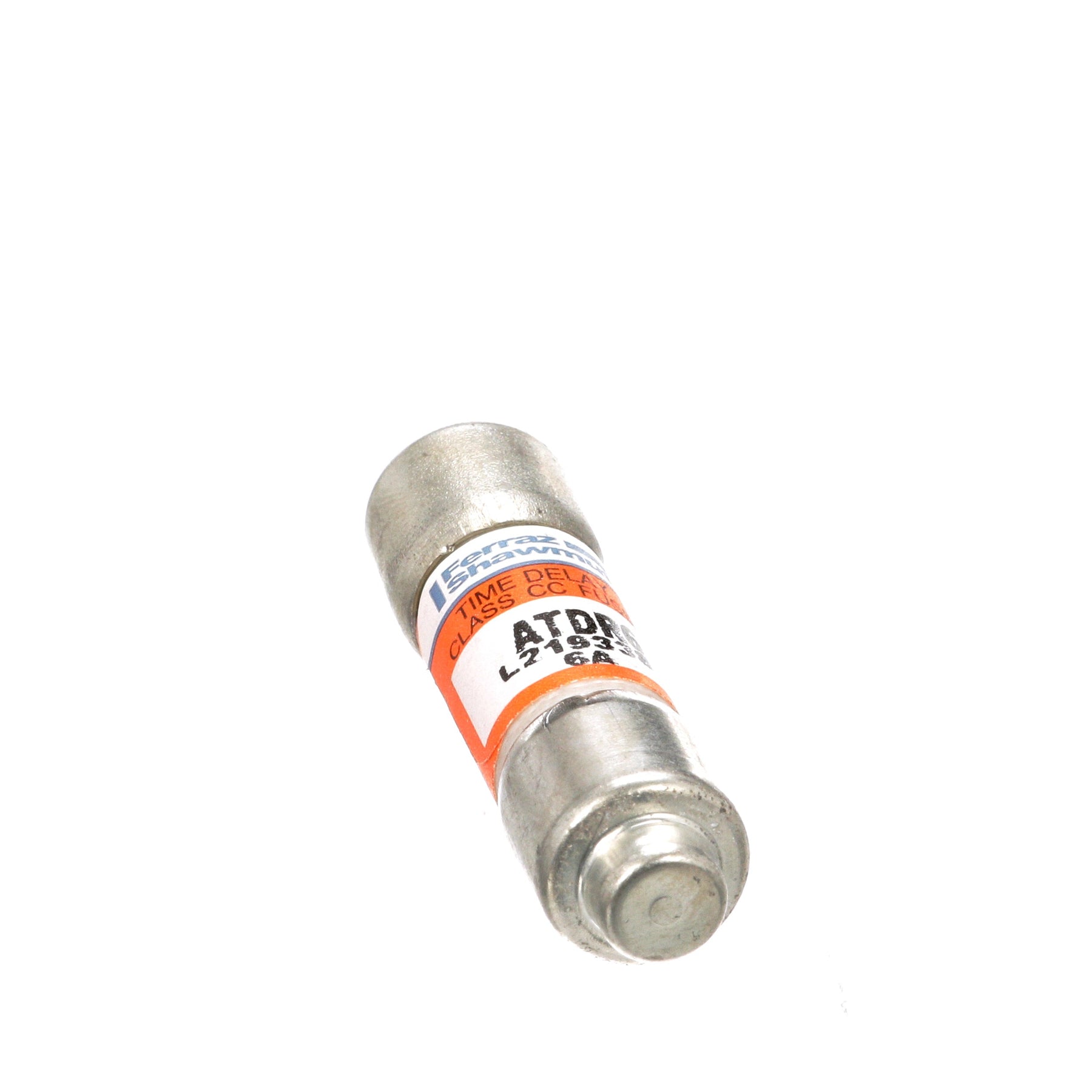

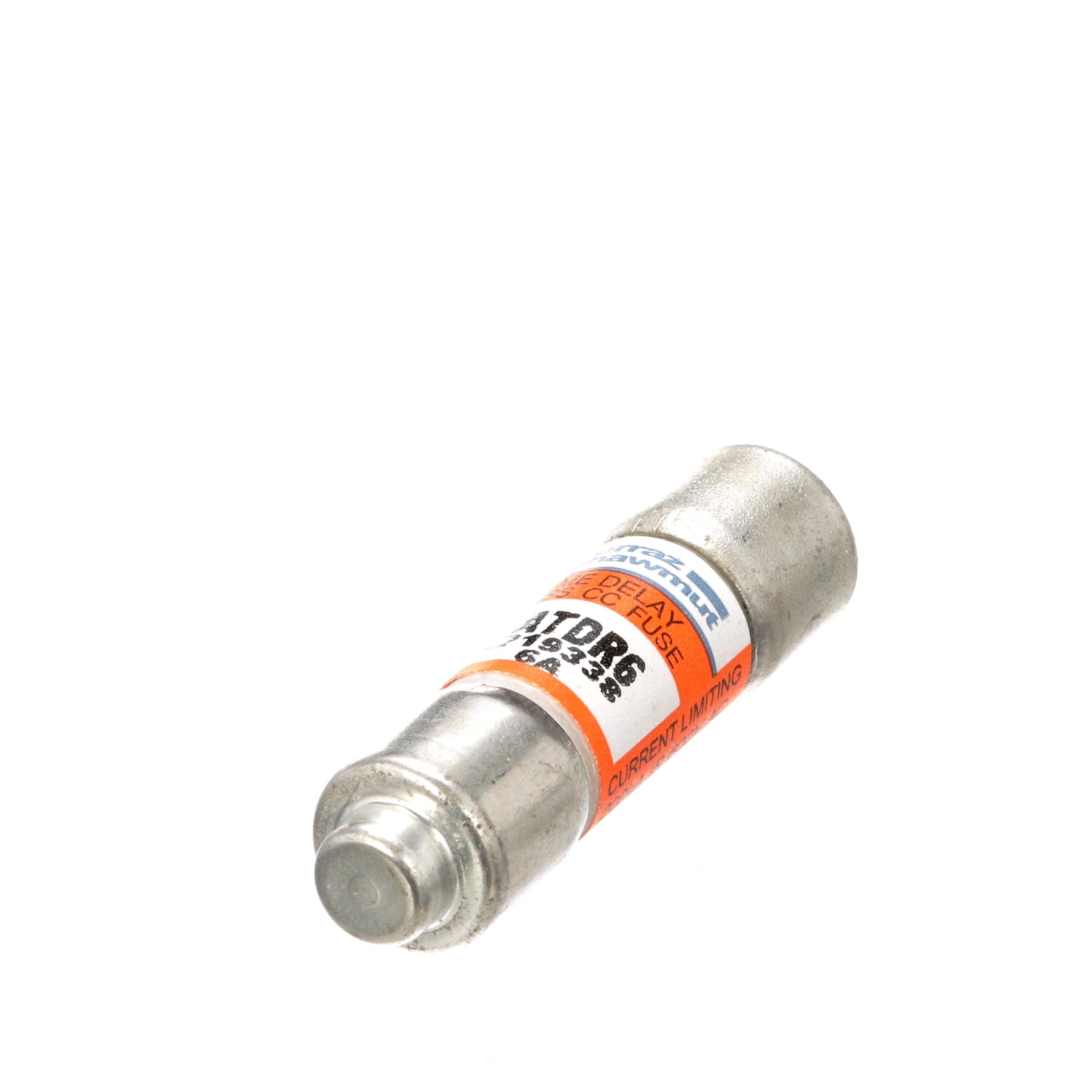

Mersen ATDR6 - Low Voltage Fuse 6A 600V (200kA AIC)

Mersen ATDR6 is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC with a 6A current capacity, it features a compact 1-1/2 inch cylindrical design (0.41" diameter) and UL/CSA-certified construction. The single-barrel CC-class fuse delivers 200kA interrupting capacity at 600V, meeting stringent protection requirements for motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (ATDR series)
• Voltage Rating: 600V AC/DC
• Current Rating: 6A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Weight: 5 lb
• Standards: UL/CSA certified
• Applications: Motor controls, transformers, power distribution
• Class Rating: CC
• Barrels: 1
• AIC rating: 200kA@600V
• Country of Origin: Mexico

Product Identification

• UPC: 782001901035
• GTIN: 00782001901035
