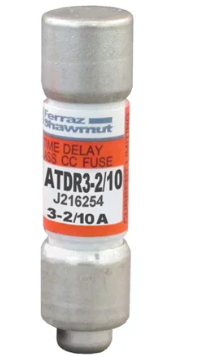

Eaton ATDR3-2/10 - Class CC Fuse 3A 600V (200kA AIC Rating)

Eaton ATDR3-2/10 is a current-limiting fuse designed for protecting sensitive electrical components and control circuits from short-circuit faults. It features a 600V AC voltage rating with a 3A current rating and 200kA interrupting capacity at 600V AC, providing high-performance fault protection in compact applications. The fuse construction includes a single-barrel design with 0.41-inch diameter and 1-1/2-inch length, weighing just 0.02 lb for space-constrained installations. Certified to UL/CSA standards with Class CC rating, this fuse meets rigorous safety requirements for industrial applications. Typical applications include protection of control transformers, motor controllers, and industrial control panels where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: Current-limiting time-delay fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Control transformers, motor controllers, industrial control panels
• AIC rating: 200kA@600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 0.02 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001908546
• GTIN: 00782001908546
