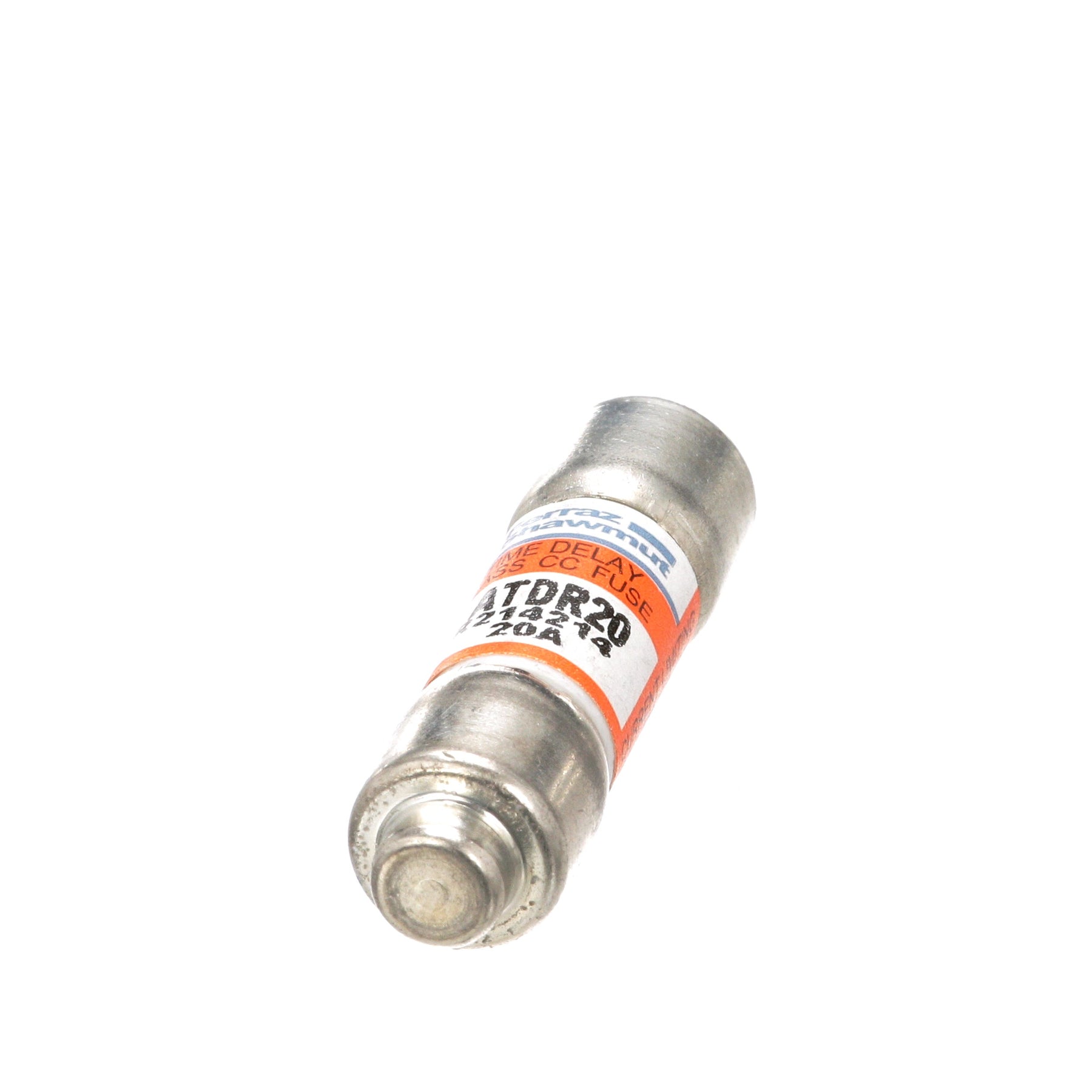

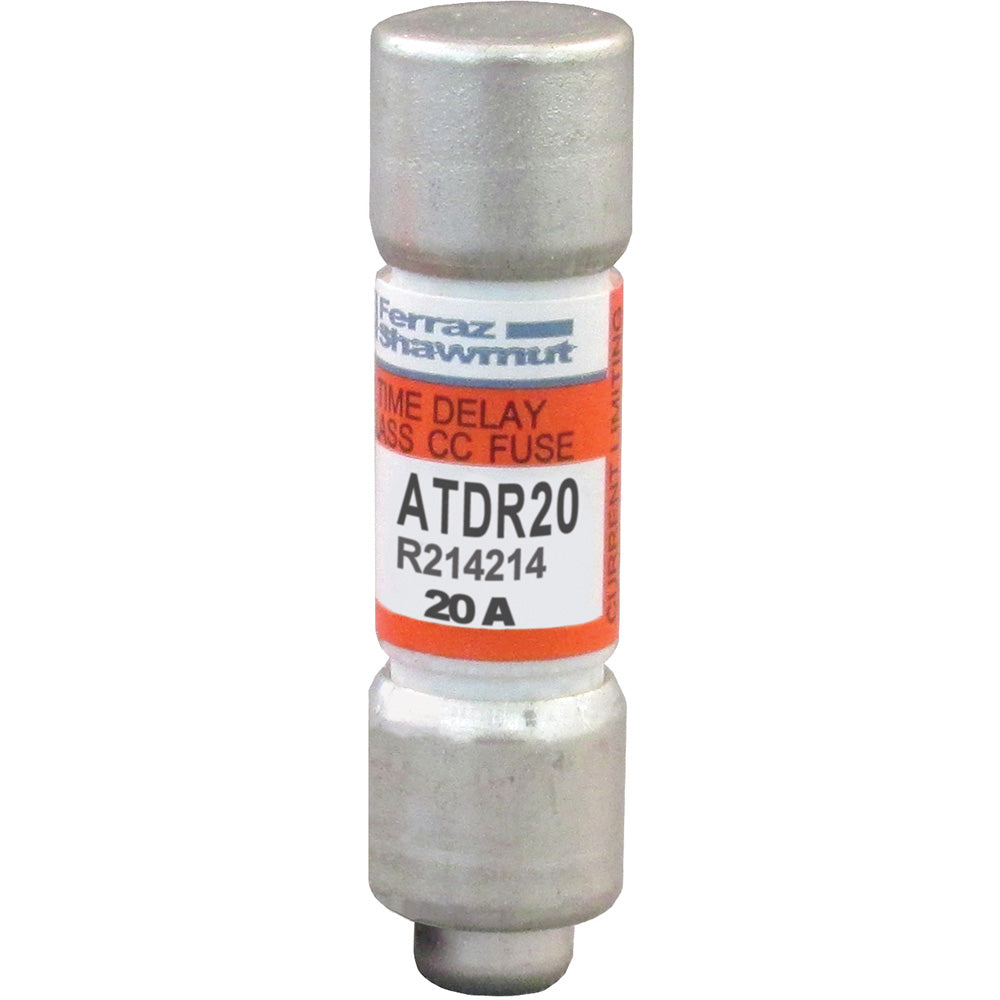

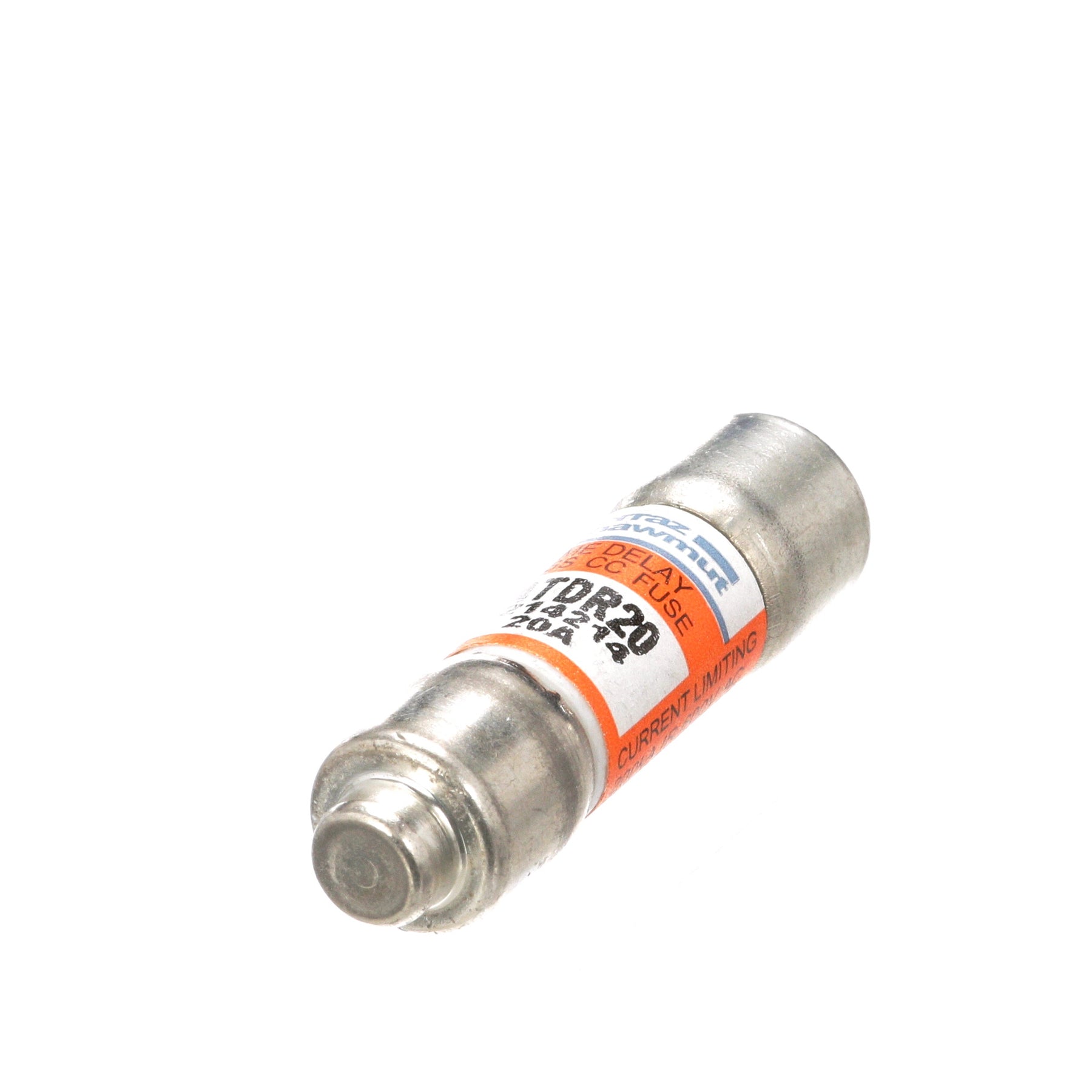

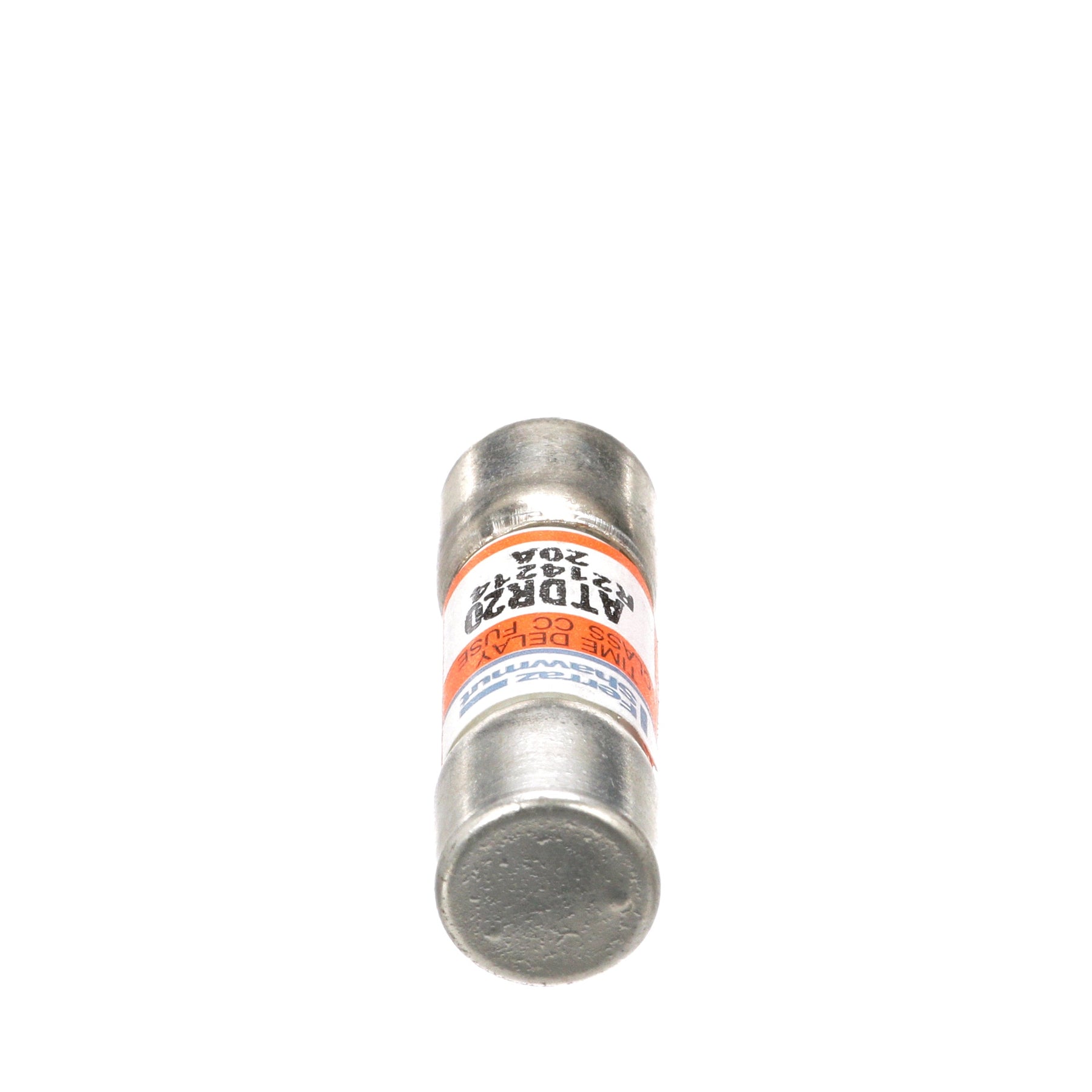

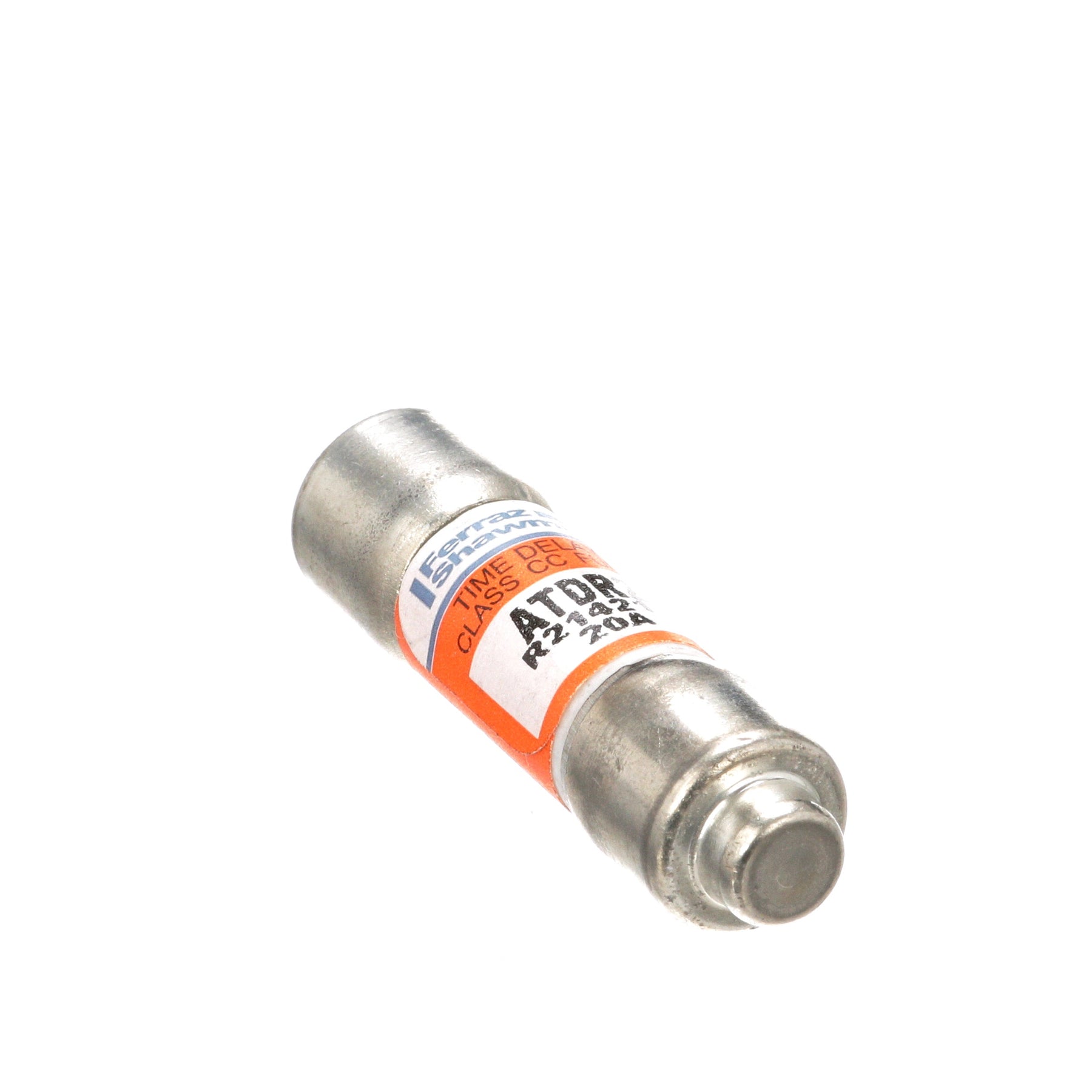

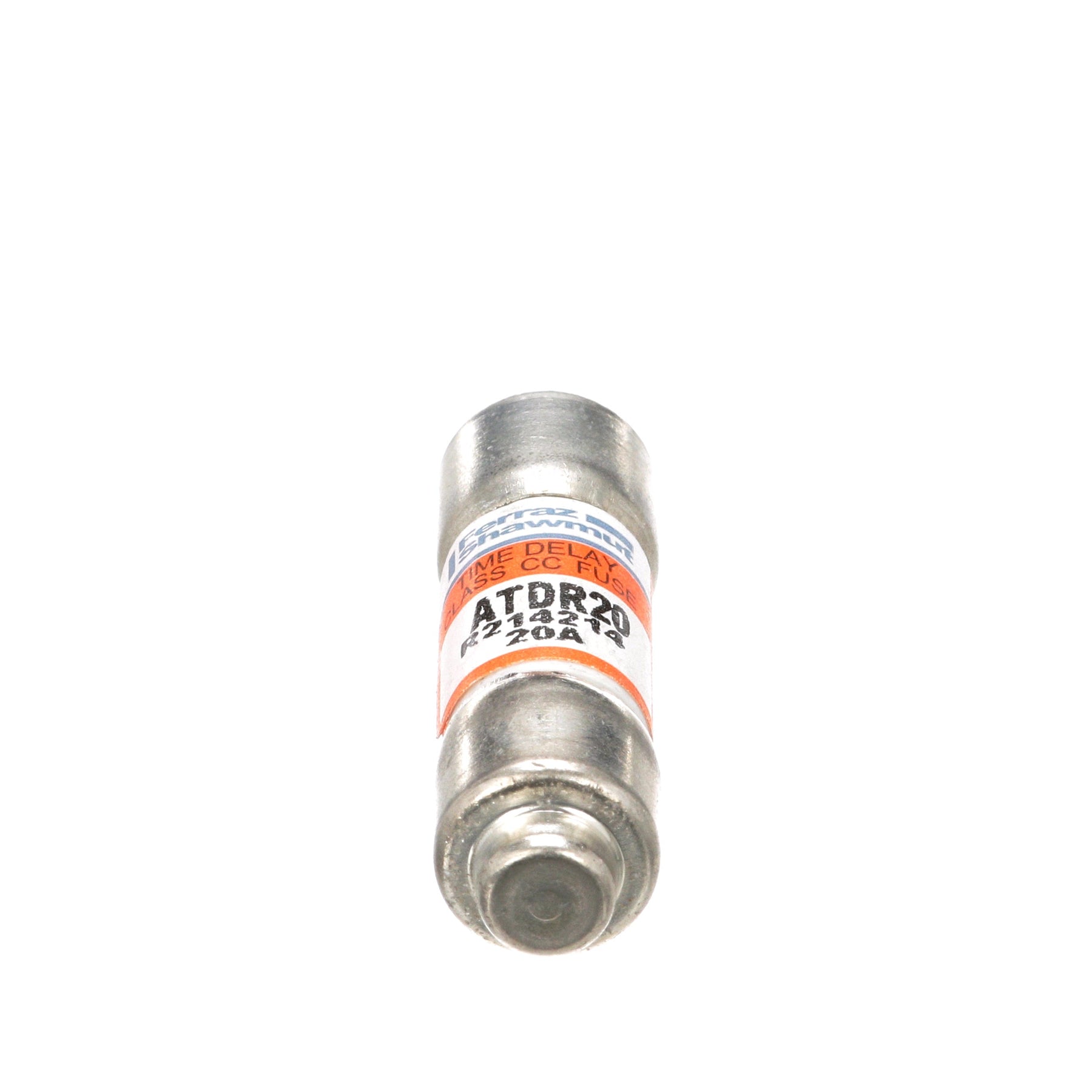

Mersen ATDR20 - Class CC Fuse 20A@600V (200kA AIC Rating)

Mersen ATDR20 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 20A current capacity with a 200kA interrupting rating at 600V for reliable short-circuit protection. The compact cylindrical design measures 1-1/2 inches in length with a 0.41-inch diameter, constructed with UL/CSA-certified materials for safety compliance. This fuse meets stringent industry standards for electrical protection components and is commonly used in control panels, motor circuits, and transformer protection applications.

Key Features & Specifications

• Type: Class CC time-delay fuse with single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 20A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL/CSA certified
• Applications: Industrial control panels, motor circuits, transformer protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 078200190868
• GTIN: 00782001908683
