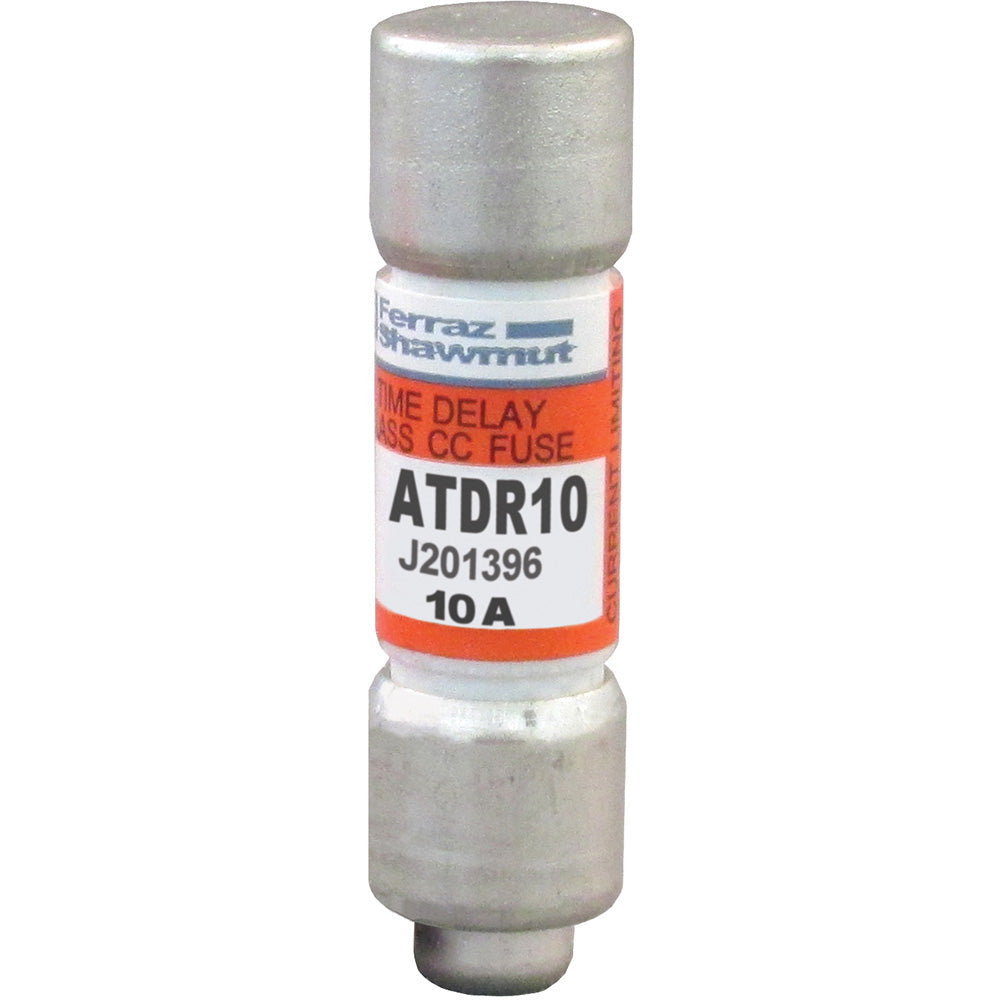

Mersen ATDR10 - Class CC Fuse 600V/10A (200kA AIC)
Regular price
$15.94
$15.94
Regular price
$937.56
$937.56
Sale price
$15.94
$15.94
Save $921.62
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen ATDR10 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 10A current capacity, it features a compact 1-1/2-inch cylindrical design with 0.41-inch diameter and 5 lb weight. UL/CSA-certified with 200kA interrupting capacity at 600V, this Class CC fuse provides reliable short-circuit protection for motor control centers, transformers, and power distribution equipment.
Key Features & Specifications
Key Features & Specifications
- Type: Amp-Trap 2000 series current-limiting fuse (ATDR type)
- Voltage Rating: 600V AC/DC
- Current Rating: 10A
- Dimensions: 1-1/2 in length x 0.41 in diameter
- Standards: UL/CSA certified
- Applications: Motor controls, transformers, power distribution
- Class Rating: CC
- Barrels: 1
- AIC rating: 200kA@600V
- Weight: 5 lb
- Country of Origin: Mexico
- UPC: 782001901073
- GTIN: 00782001901073
