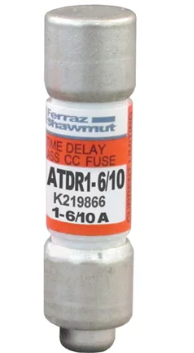

Eaton ATDR1-6/10 - Class CC Fuse 1A 600V (200kA AIC Rating)

Eaton ATDR1-6/10 is a Class CC low-voltage current-limiting fuse designed for circuit protection in industrial control applications. It features a 600V AC voltage rating with a 1A current rating and provides 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse construction utilizes a single-barrel design measuring 1-1/2 inches in length with 0.41 inches diameter and weighs 0.02 lb, built to UL/CSA standards for safety compliance. This Amp-Trap 2000 series fuse is manufactured in Mexico and is typically applied in control circuits, transformer protection, and motor branch circuits where Class CC protection is specified.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Industrial control circuits, transformer protection, motor branch circuits
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 0.02 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001900939
• GTIN: 00782001900939
