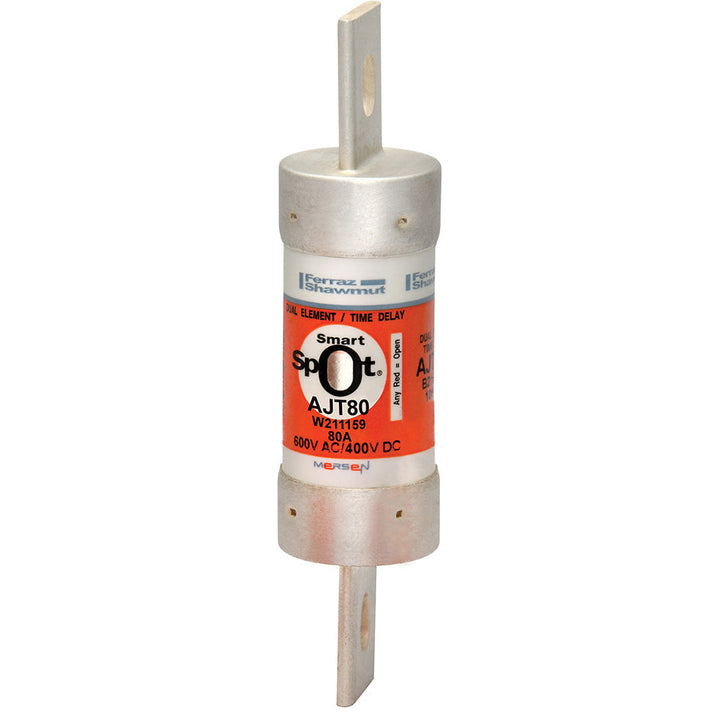

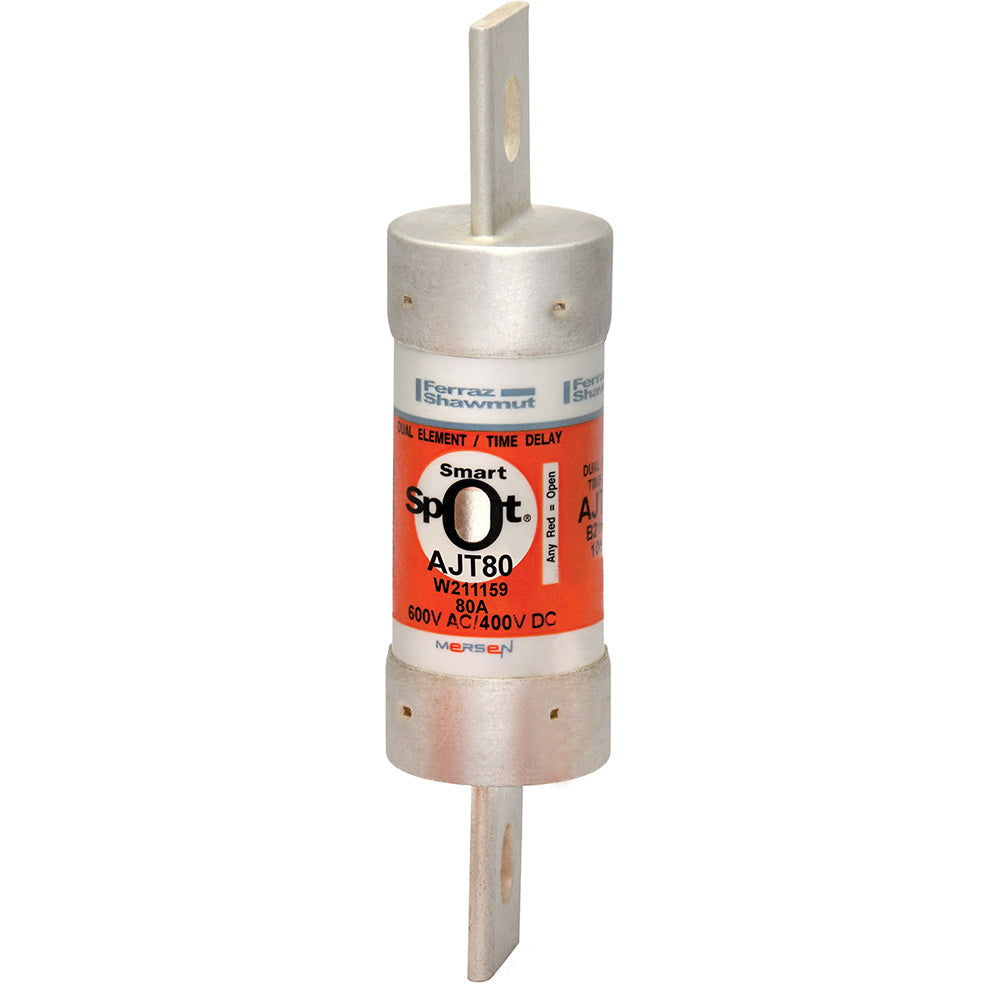

Mersen AJT80 - Class J Fuse 80A 600V (200kA AIC)
Regular price
$44.77
$44.77
Regular price
$288.93
$288.93
Sale price
$44.77
$44.77
Save $244.16
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen AJT80 is a Class J low-voltage fuse designed for circuit protection in industrial power distribution systems. Rated for 600V AC/DC operation with a 80A current rating, it features a compact 4-5/8" body (1.06" diameter) constructed with a single-barrel design and UL/CSA-certified components. The fuse meets stringent industry standards with a 200kA interrupting capacity at 600V, providing reliable protection for motor circuits, transformers, and feeder lines in harsh electrical environments.
Key Features & Specifications
Key Features & Specifications
- Type: Amp-Trap 2000 series, Class J time-delay fuse
- Voltage Rating: 600V AC/DC
- Current Rating: 80A
- Dimensions: 4-5/8" length x 1.06" diameter
- Weight: 5 lb
- Standards: UL/CSA certified
- AIC Rating: 200kA@600V
- Barrels: 1
- Applications: Motor protection, transformers, industrial feeders
- UPC: 782001962661
- GTIN: 00782001962661
