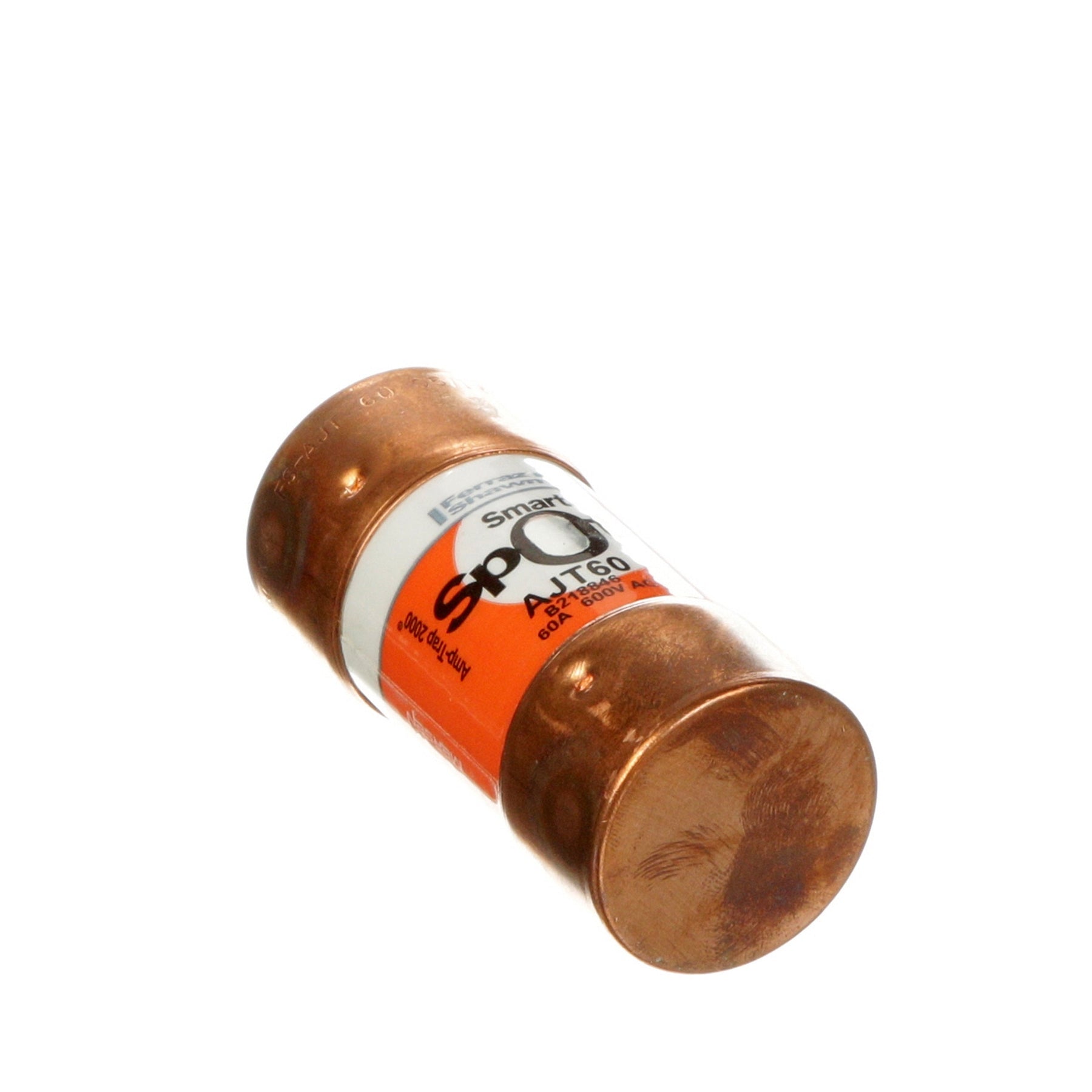

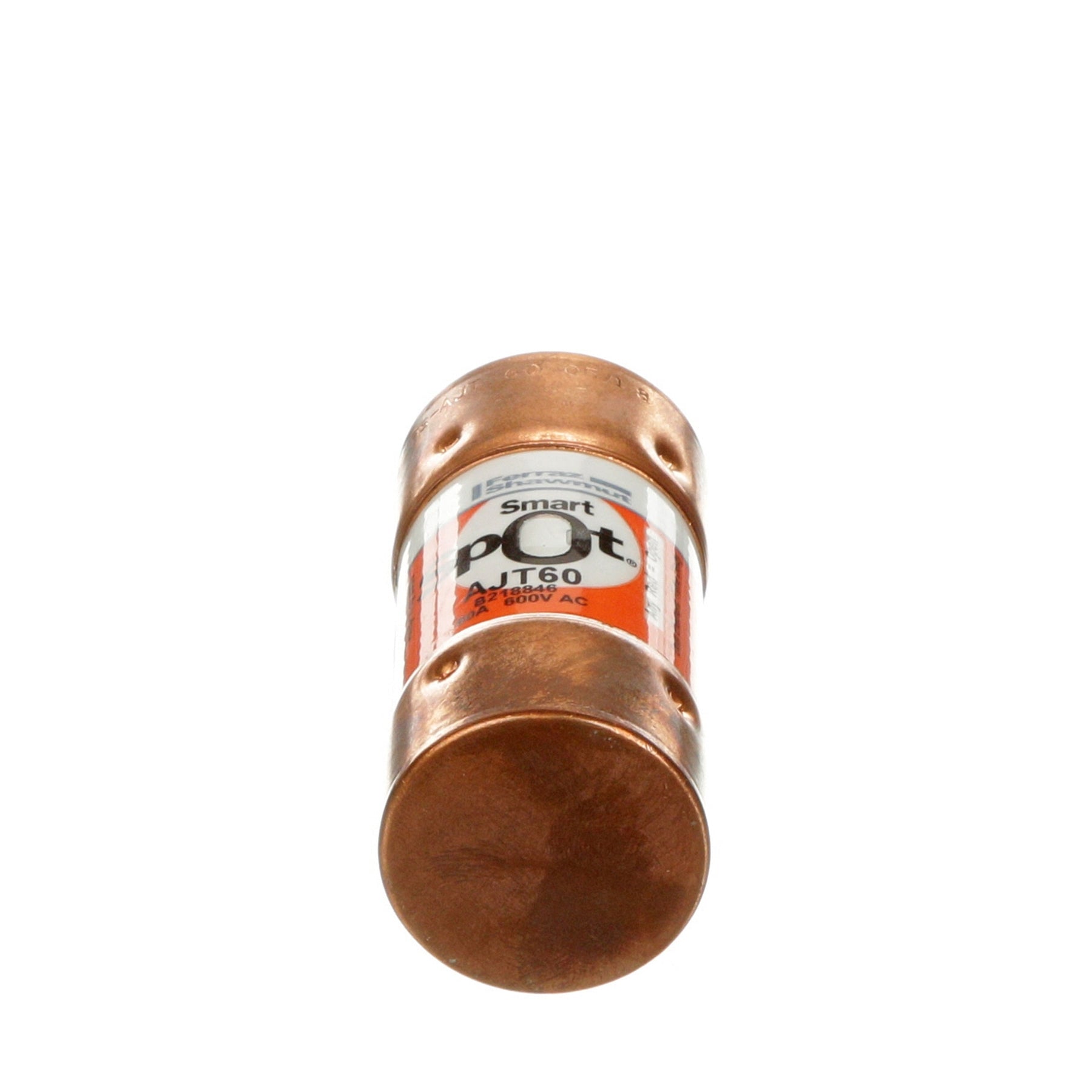

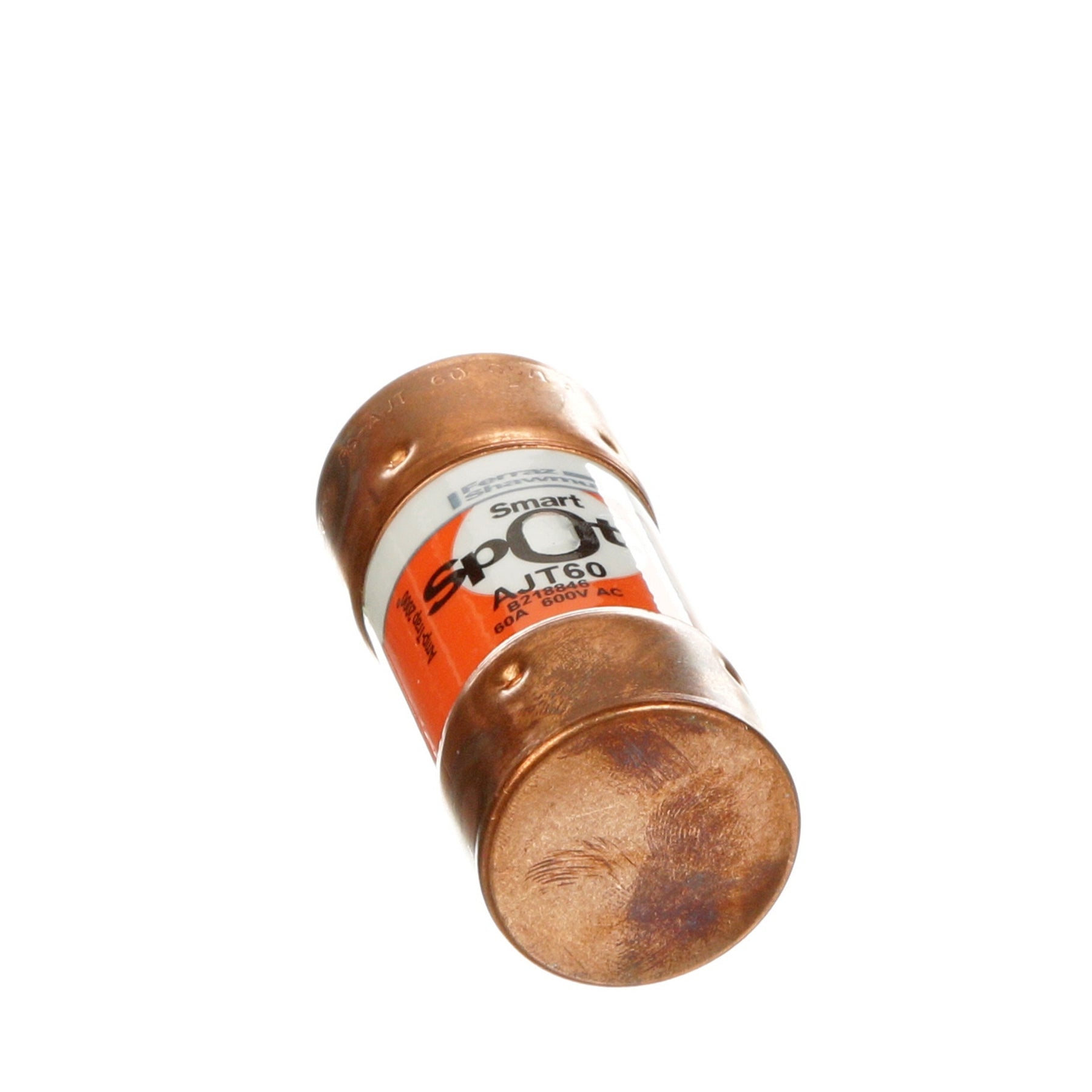

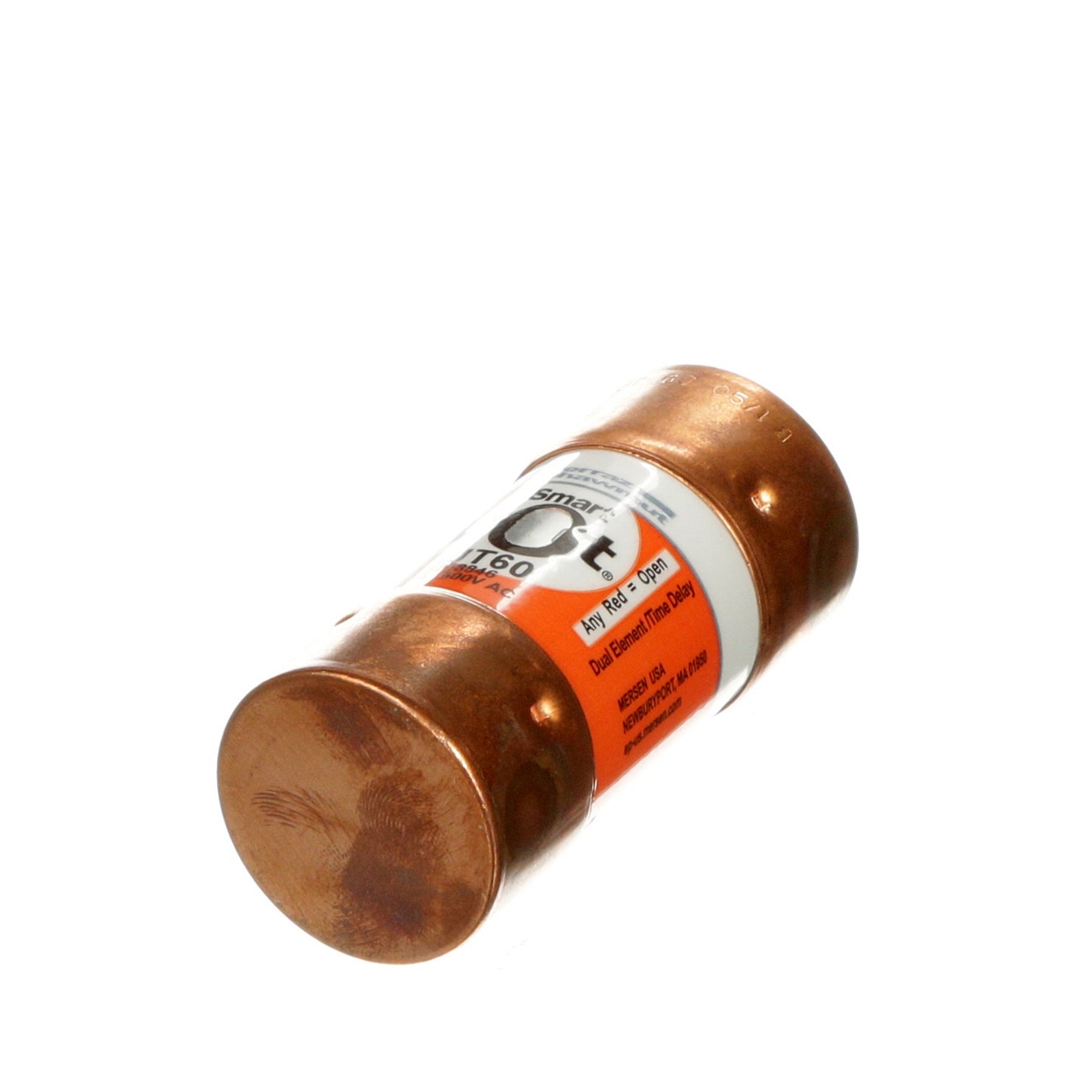

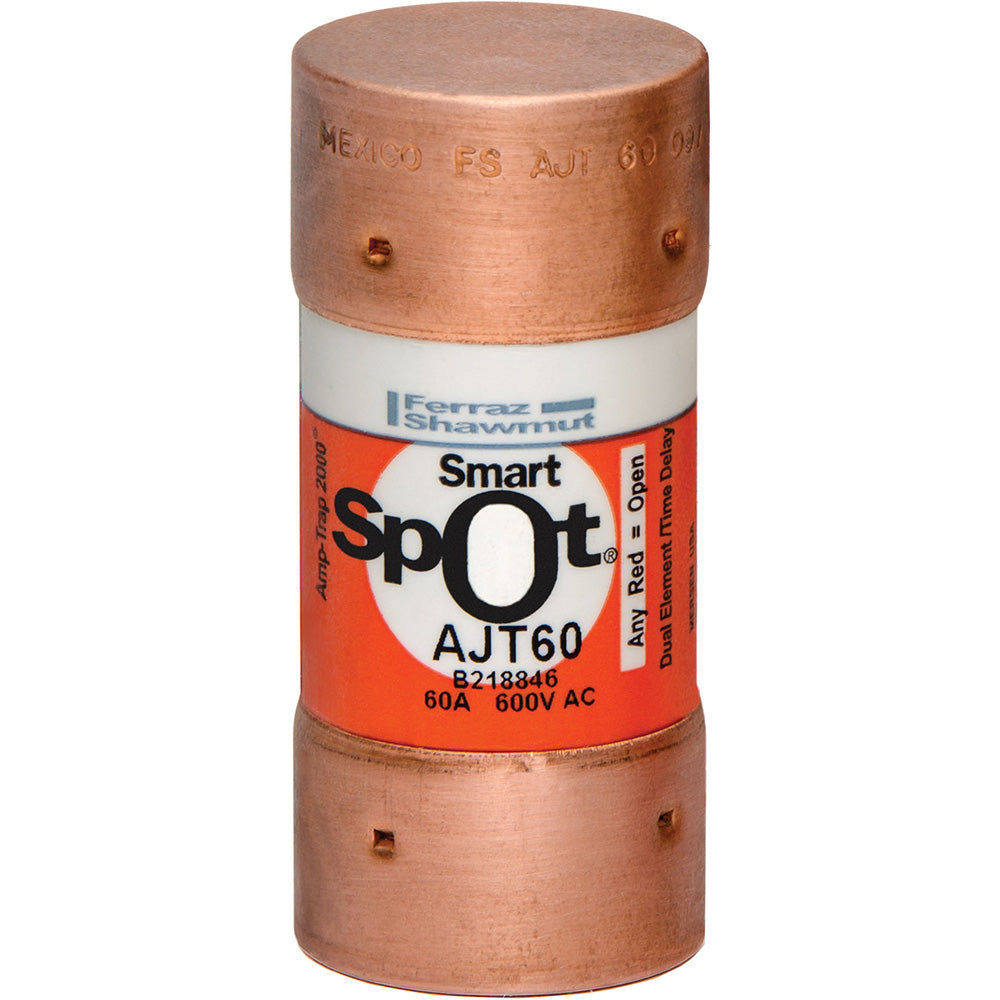

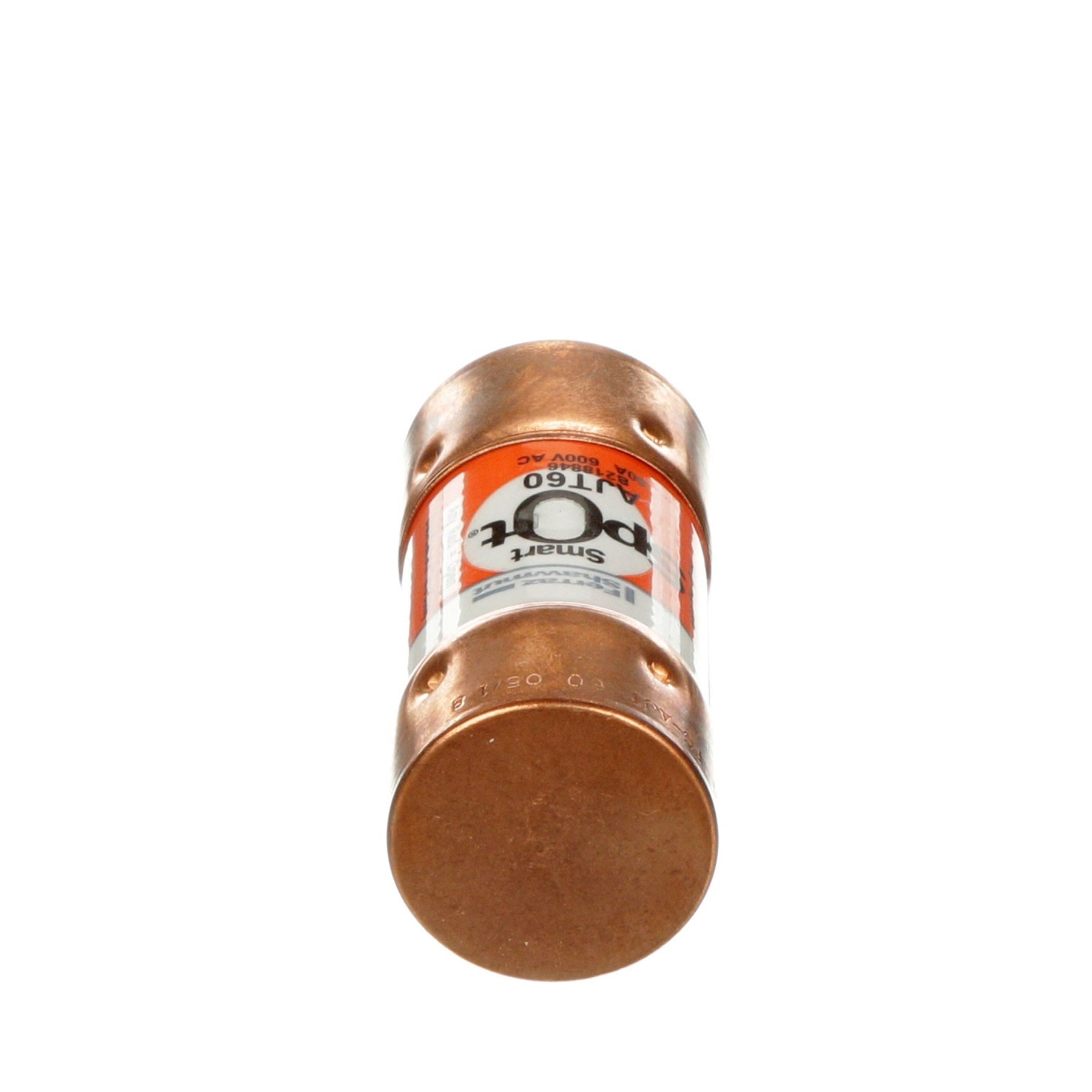

Mersen AJT60 - Class J Fuse 60A (200kA AIC @600V)

Mersen AJT60 is a Class J low-voltage fuse designed for circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 60A current capacity, it features a compact 2-3/8" body with 1.06" diameter and single-barrel construction. UL/CSA certified with a 200kA interrupting rating at 600V, this Amp-Trap 2000 series fuse provides reliable protection for motor circuits, transformers, and feeder lines in harsh electrical environments.

Key Features & Specifications

• Type: AJT Class J time-delay fuse with sand-filled ceramic body
• Voltage Rating: 600V AC/DC
• Current Rating: 60A
• Dimensions: 2-3/8" length x 1.06" diameter
• Weight: 5 lb
• Standards: UL/CSA certified
• Applications: Motor protection, transformer circuits, industrial feeders
• Class Rating: J
• Barrels: 1
• AIC rating: 200kA@600V
• Country of Origin: Mexico

Product Identification

• UPC: 782001962388
• GTIN: 00782001962388
