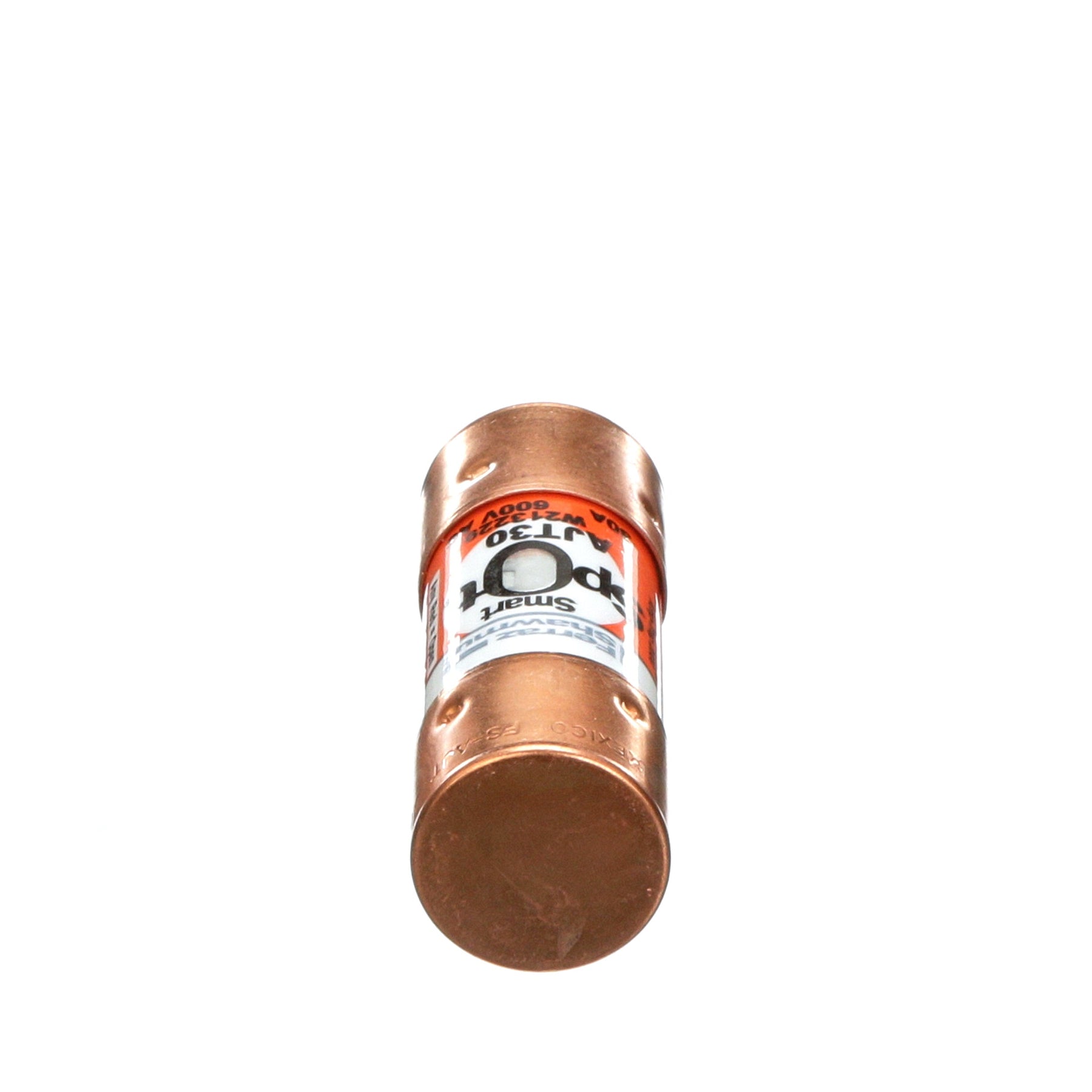

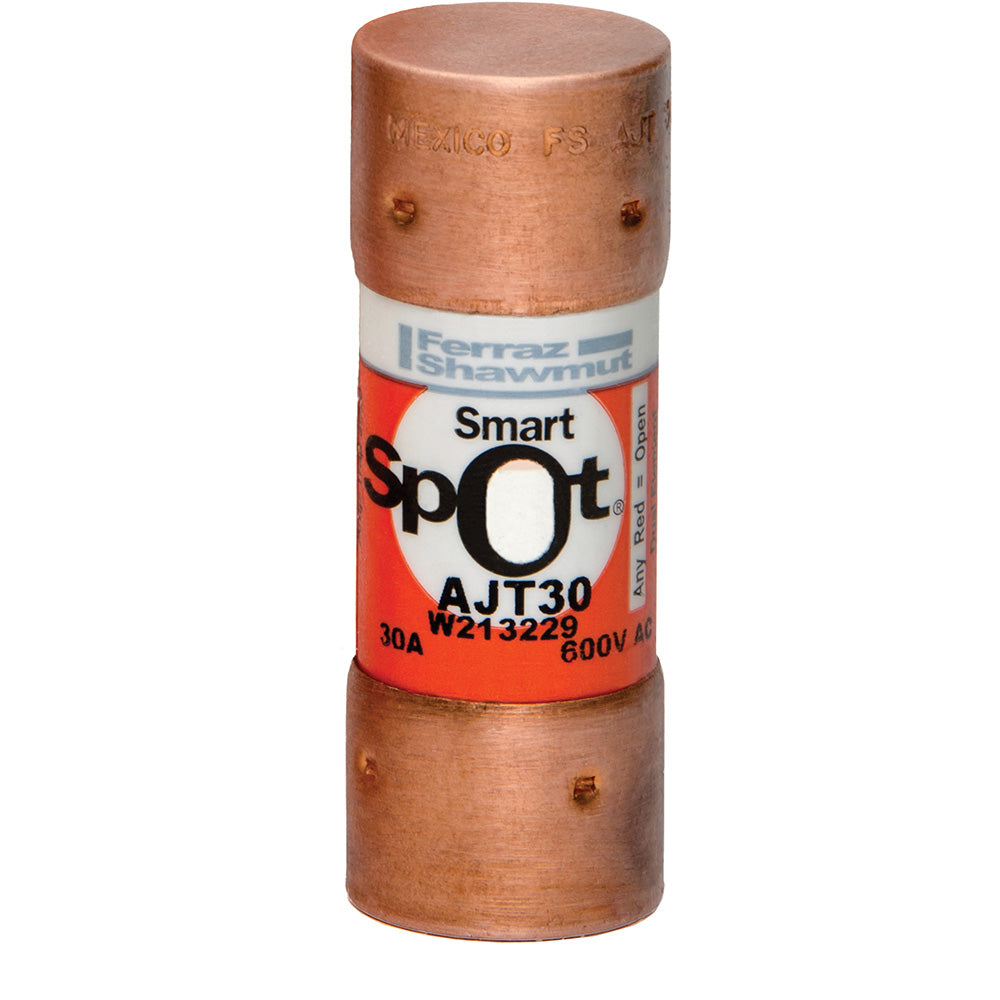

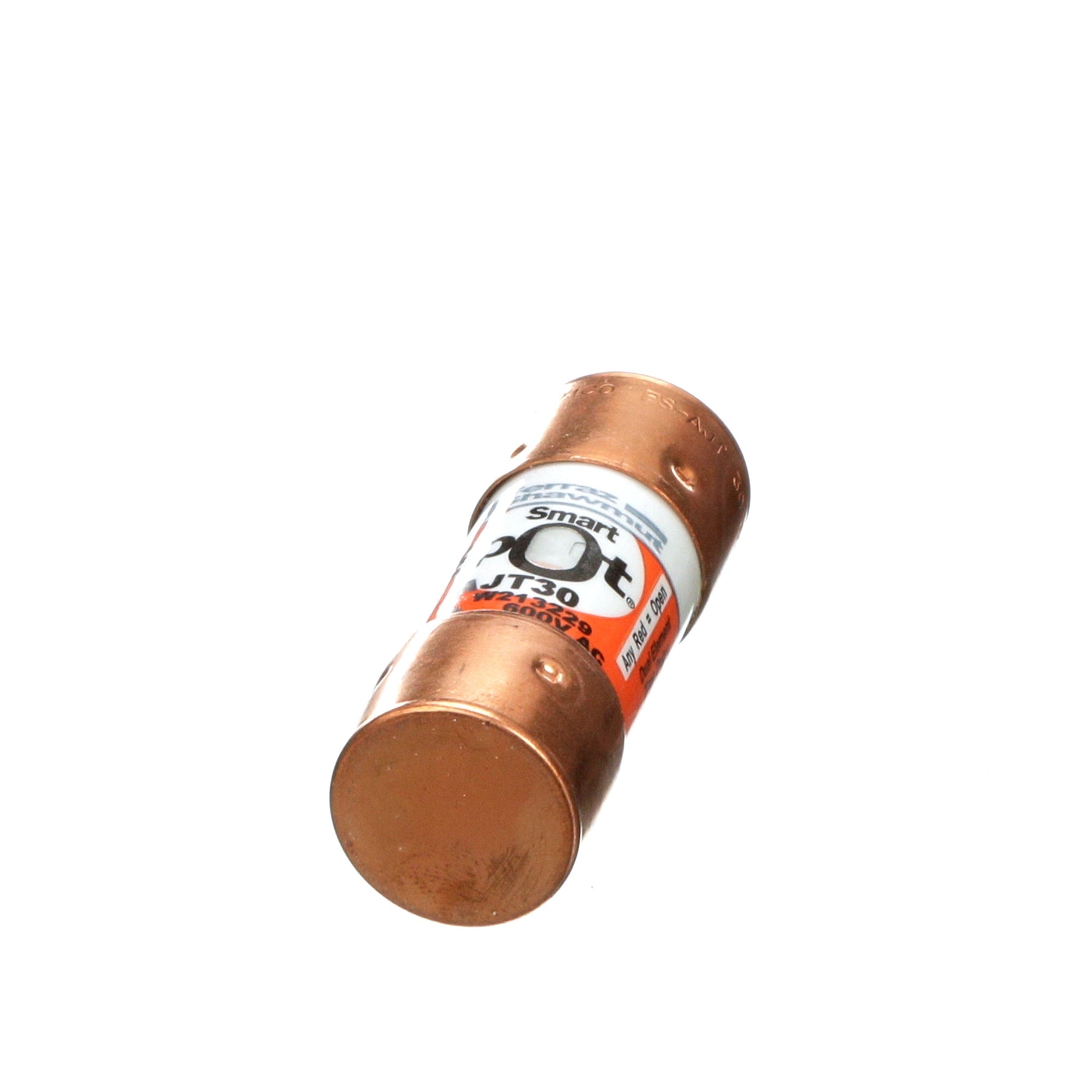

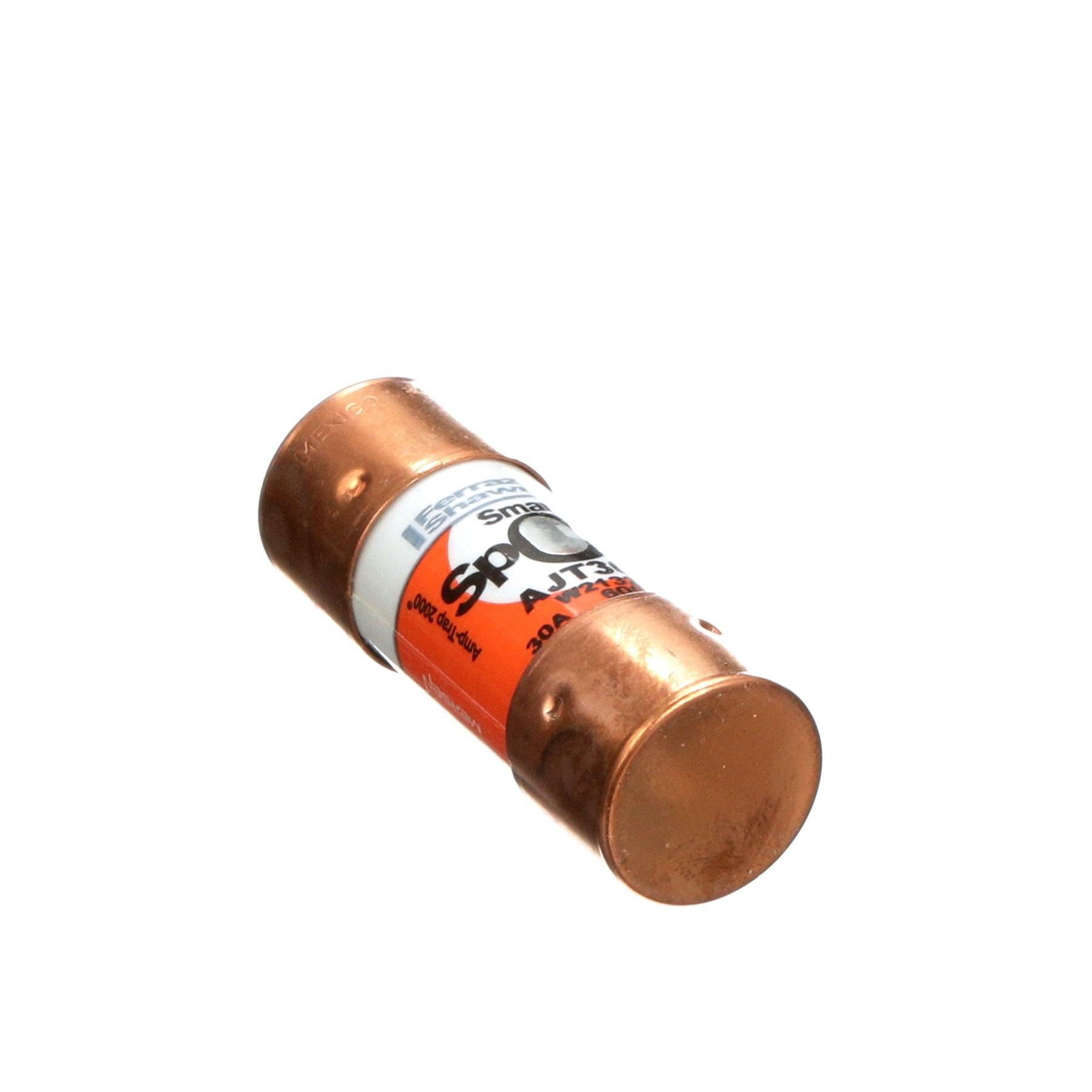

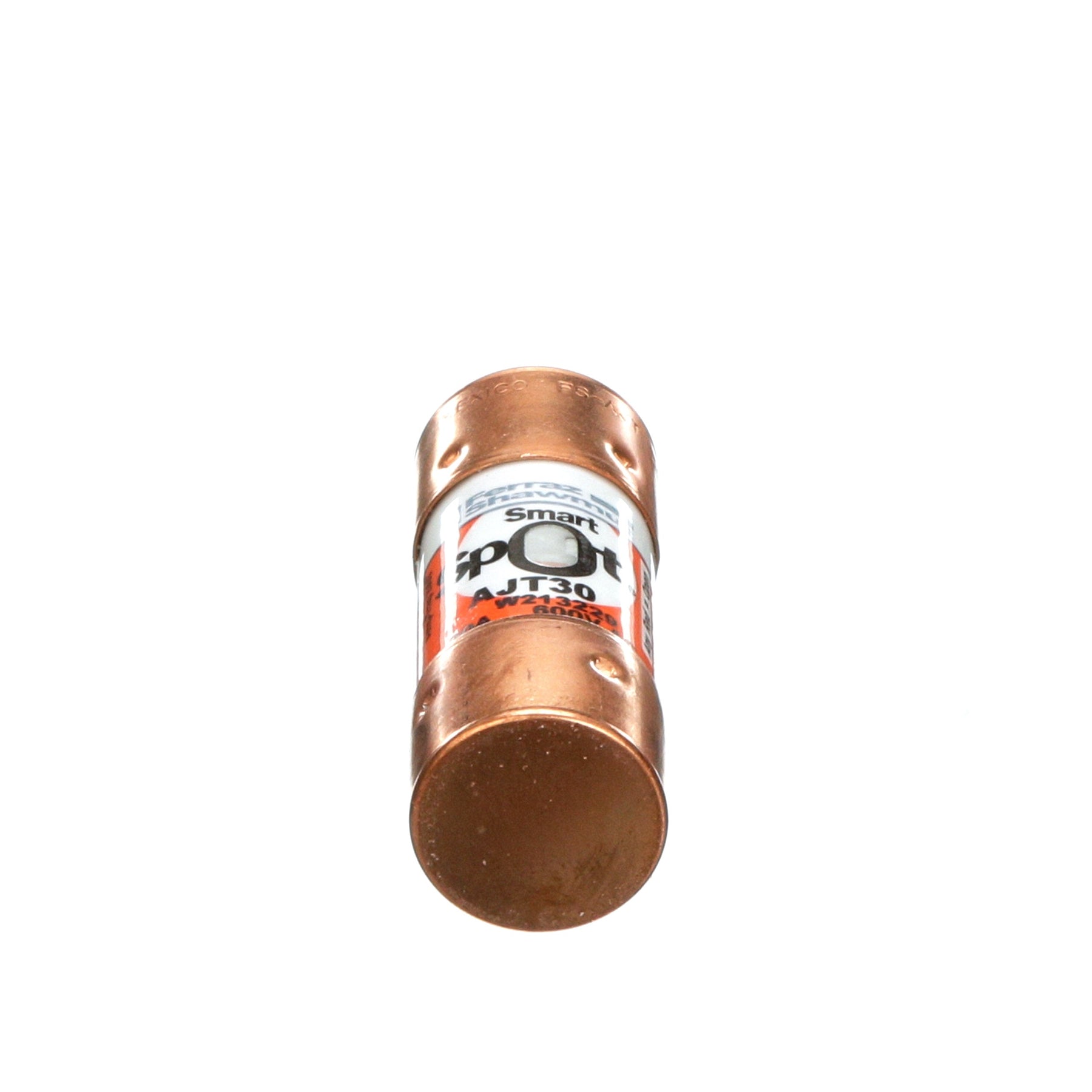

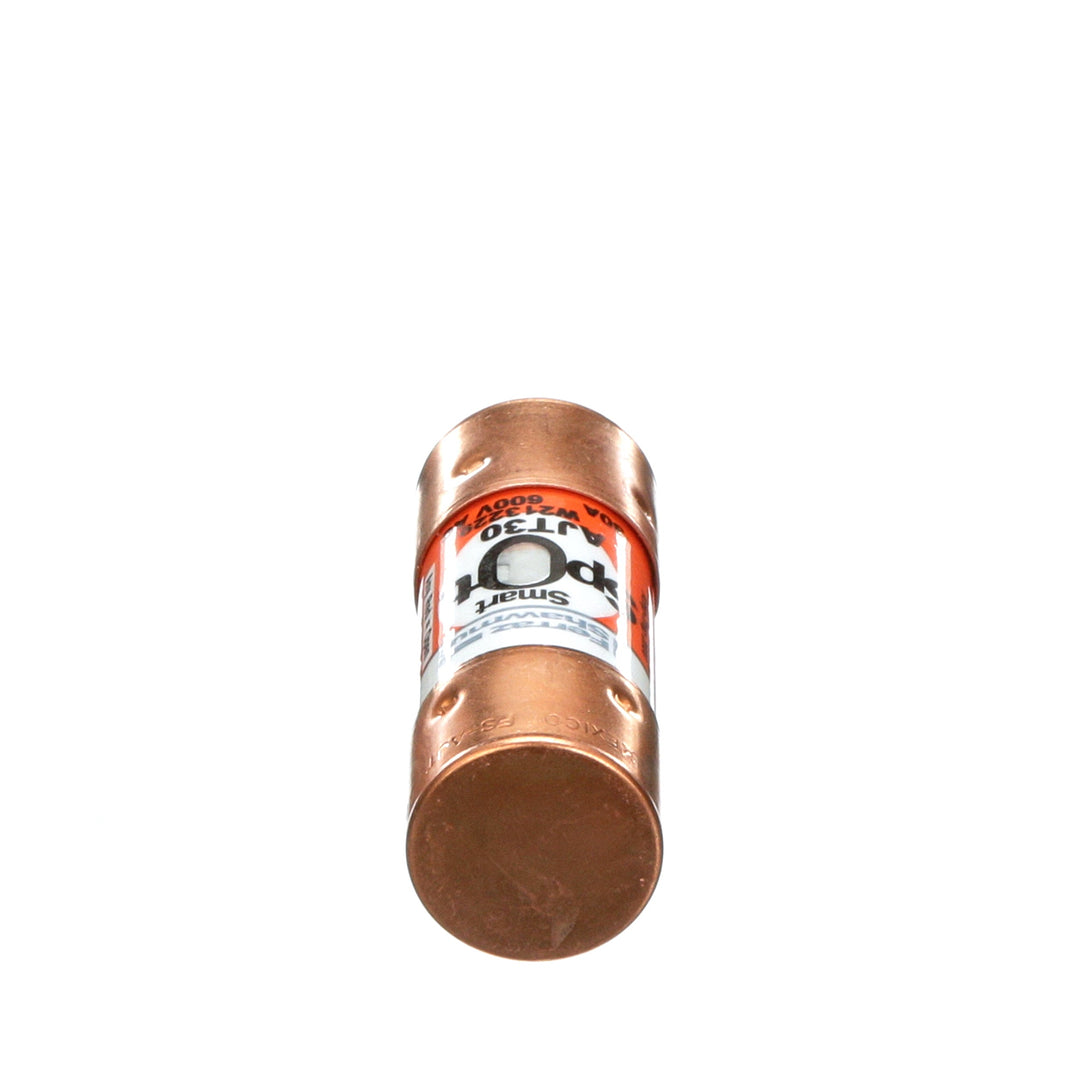

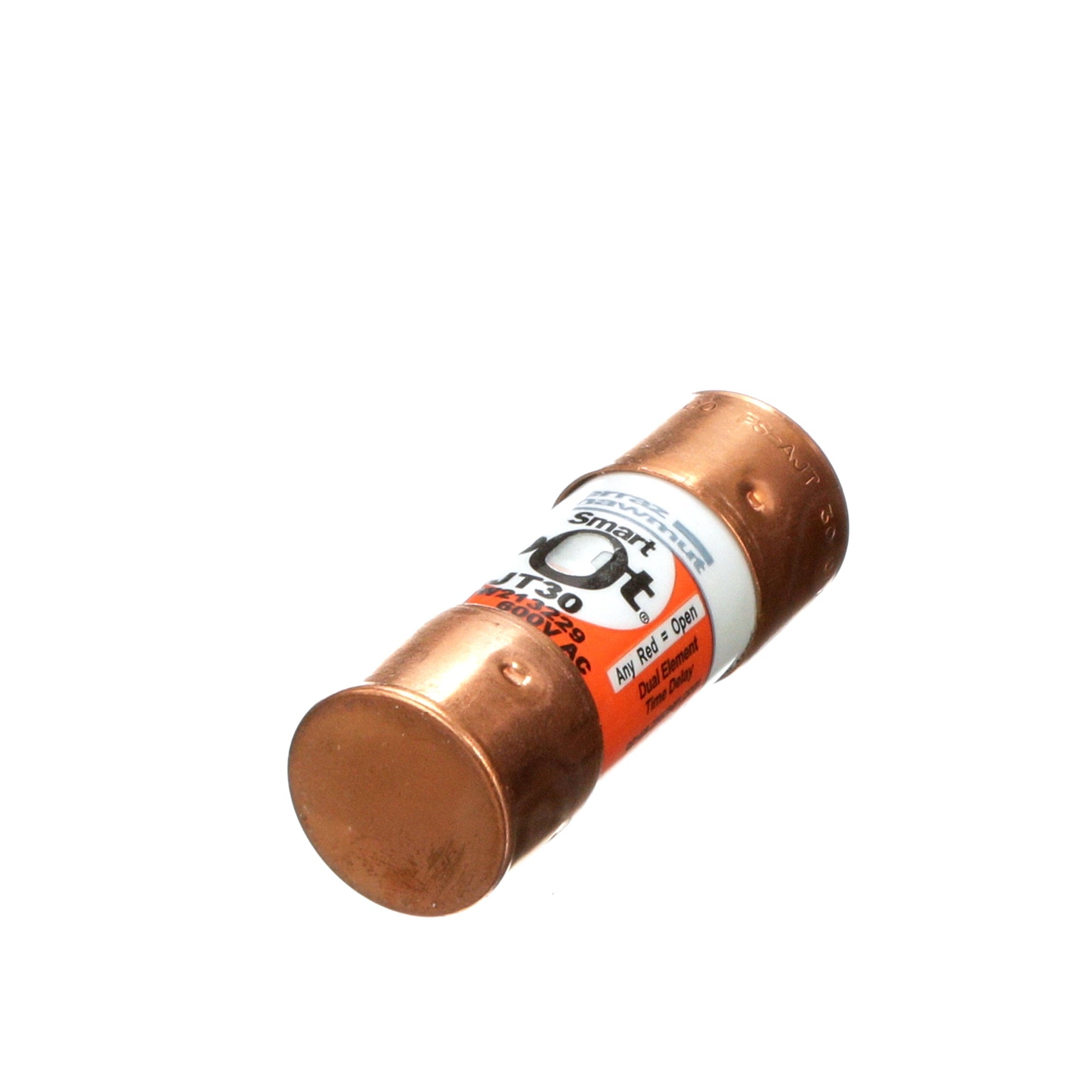

Mersen AJT30 - Class J Fuse 30A 600V (200kA AIC)

Mersen AJT30 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 30A current capacity and 200kA interrupting rating, housed in a compact 2-1/4" body with 1.06" diameter constructed to UL/CSA standards. The single-barrel Amp-Trap 2000 series fuse provides reliable overcurrent protection for motor circuits, transformers, and power distribution equipment in harsh environments.

Key Features & Specifications

• Type: Class J time-delay fuse with Amp-Trap 2000 design
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 2-1/4" length x 1.06" diameter
• Weight: 5 lb
• Standards: UL/CSA certified
• Applications: Motor protection, transformer circuits, industrial power distribution
• AIC rating: 200kA at 600V
• Class Rating: J
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001962401
• GTIN: 00782001962401
