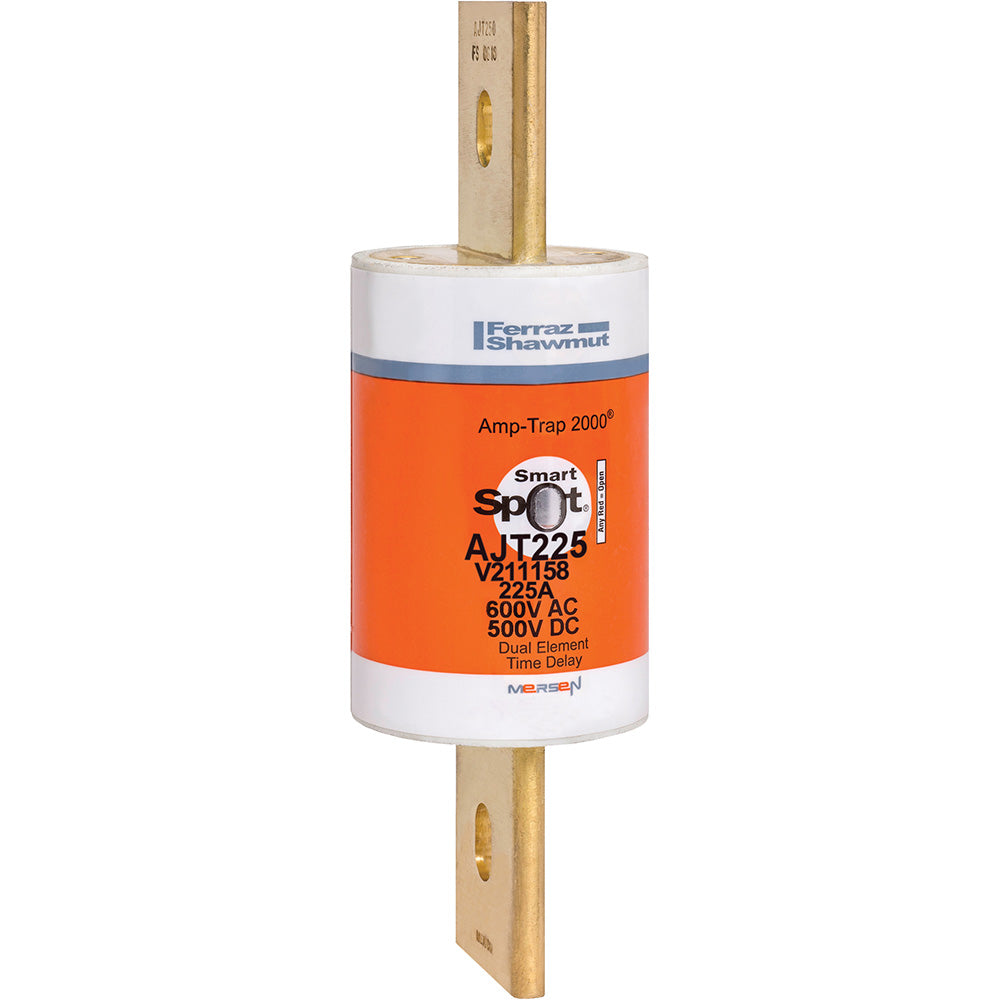

Franklin Controls AJT225 - Class J Fuse 225A 600V (200kA AIC)

Franklin Controls AJT225 is a Class J low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. It features a 600V AC rating with a 225A current capacity and 200kA interrupting rating at 600V for reliable fault current protection. The fuse measures 7-1/8 inches in length with a 2.13-inch diameter barrel construction, weighing 3 lb, and carries UL/CSA certifications for safety compliance. Its Amp-Trap 2000 design provides fast-acting protection for motor circuits, transformers, and feeder applications in harsh industrial environments.

Key Features & Specifications

• Type: AJT Class J time-delay fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 225A
• Dimensions: 7-1/8" length x 2.13" diameter
• Weight: 3 lb
• Standards: UL/CSA certified
• Applications: Motor protection, transformers, industrial feeders
• Class Rating: J
• AIC rating: 200kA@600V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001962289
• GTIN: 00782001962289
