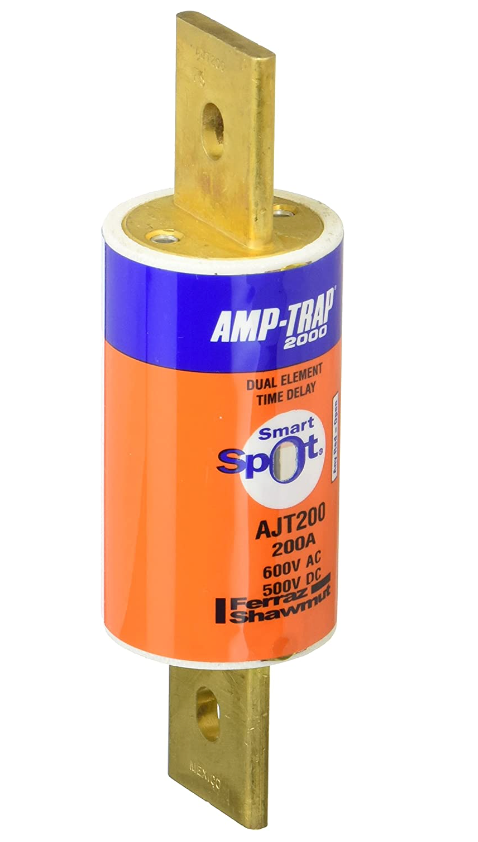

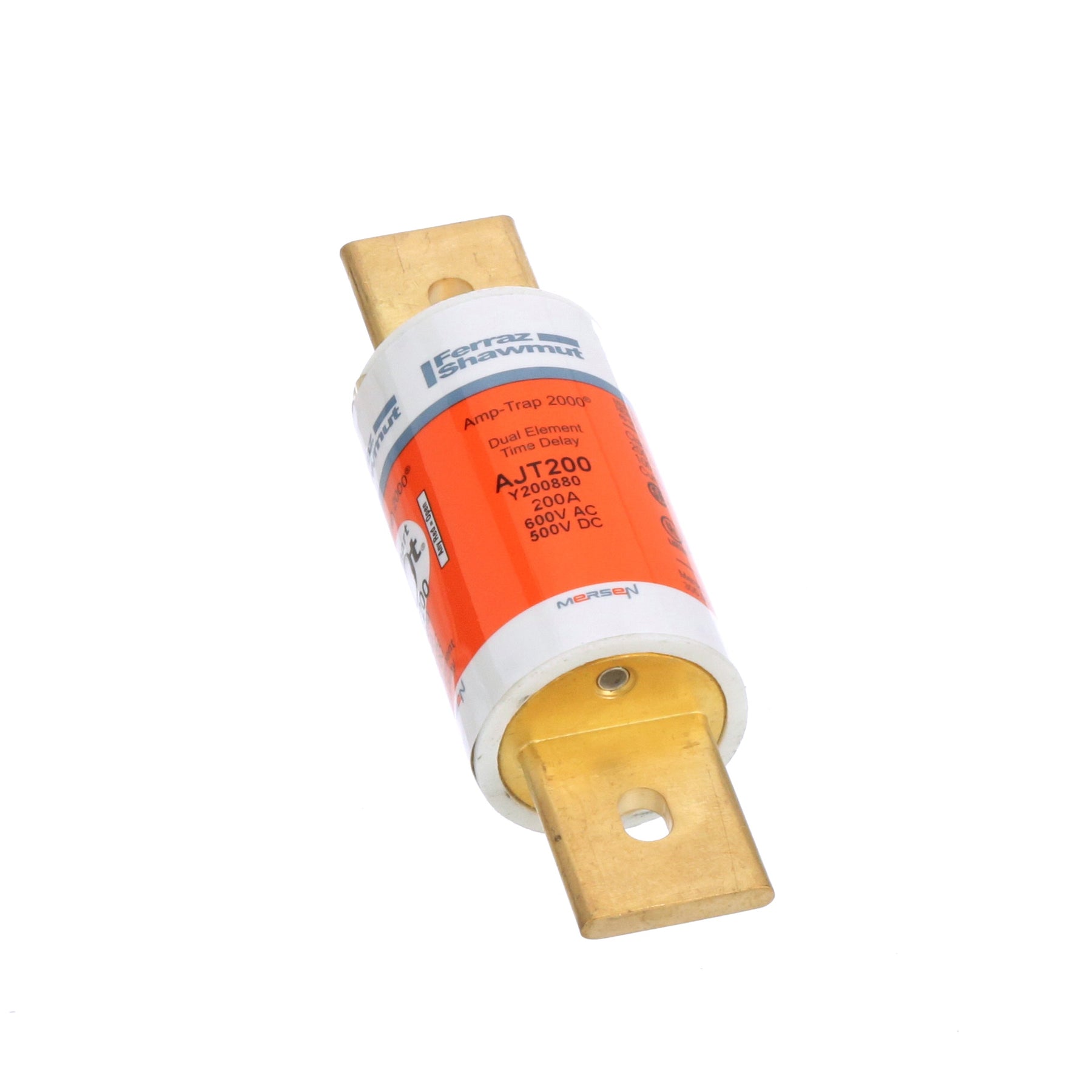

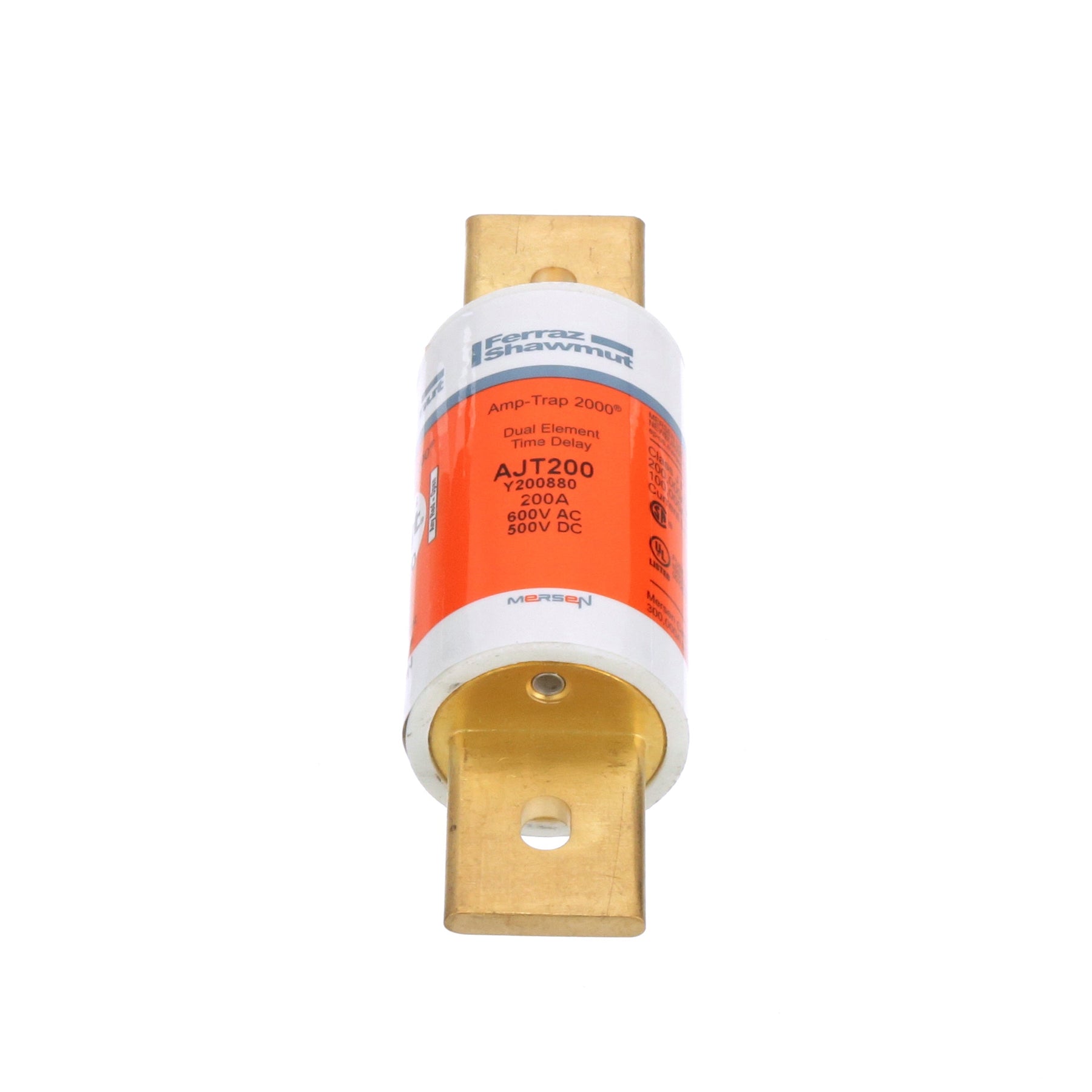

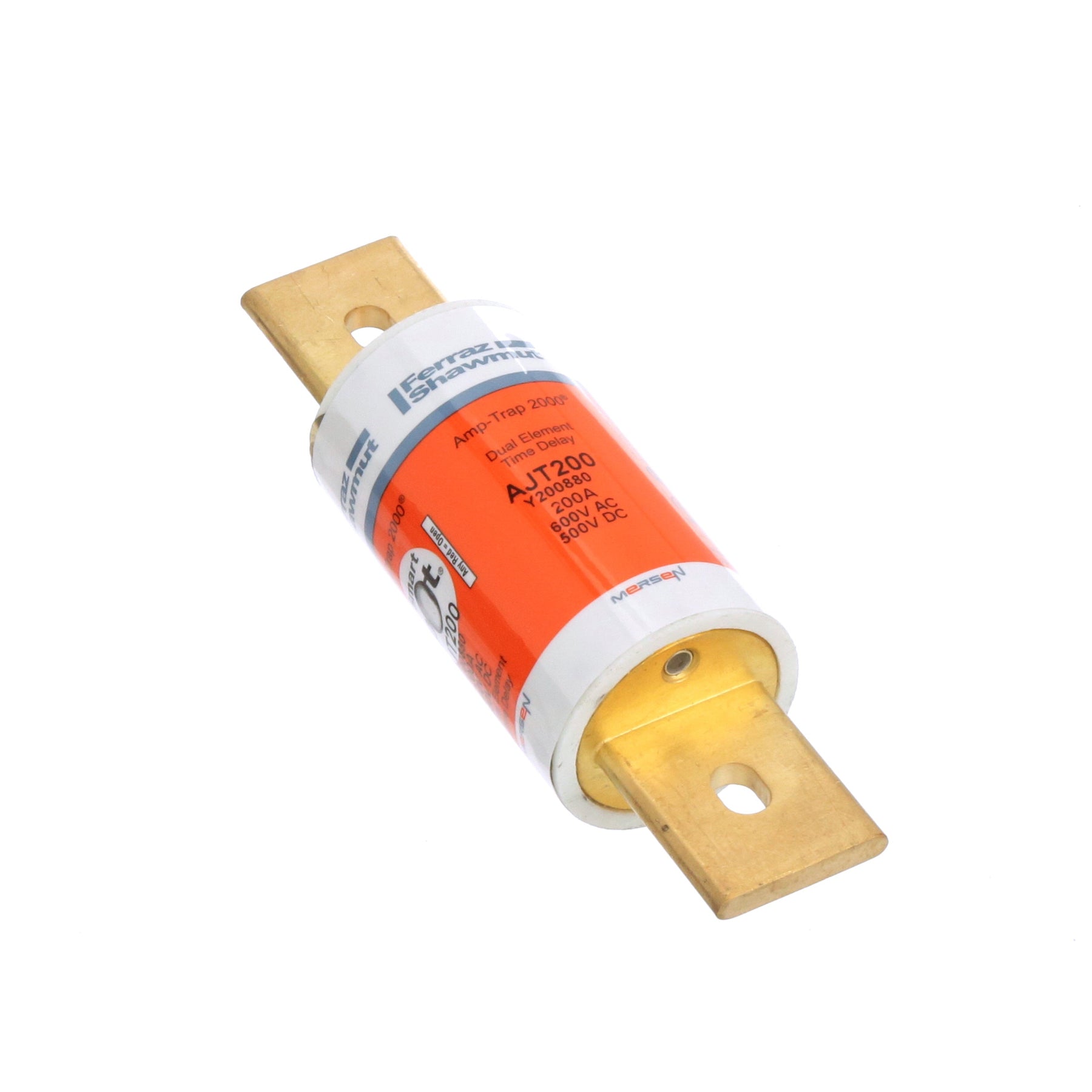

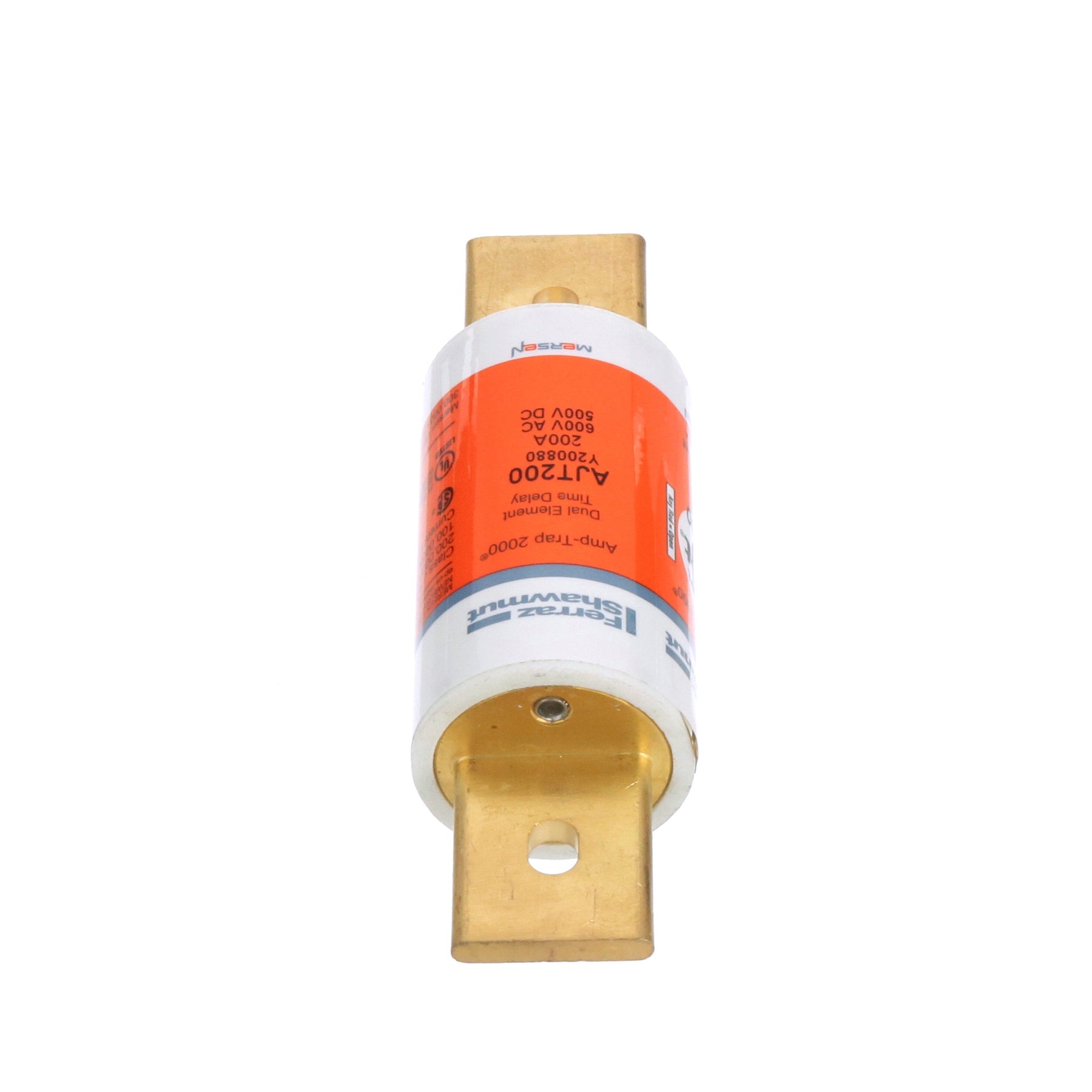

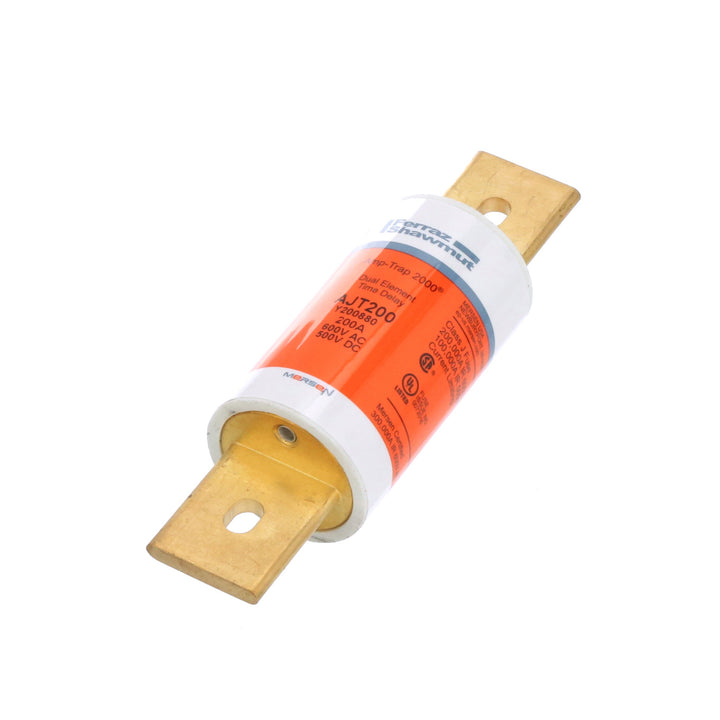

Mersen AJT200 - Class J Fuse 200A (200kA AIC @ 600V)

Mersen AJT200 is a Class J low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. This 200A rated fuse provides reliable protection at 600V AC with an impressive 200kA interrupting capacity, ensuring safe operation under high fault conditions. The single-barrel construction features a compact design measuring 5-3/4 inches in length with a 1.63-inch diameter, manufactured to UL/CSA standards for consistent performance. As part of the Amp-Trap 2000 family, this fuse meets rigorous industrial requirements for motor branch circuits, feeder circuits, and service entrance applications where high fault current interruption is critical.

Key Features & Specifications

• Type: Class J current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 5-3/4 inch length, 1.63 inch diameter
• Standards: UL/CSA certified
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 200kA @ 600V
• Class Rating: J
• Barrels: 1
• Family: Amp-Trap 2000
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001962494
• GTIN: 00782001962494
