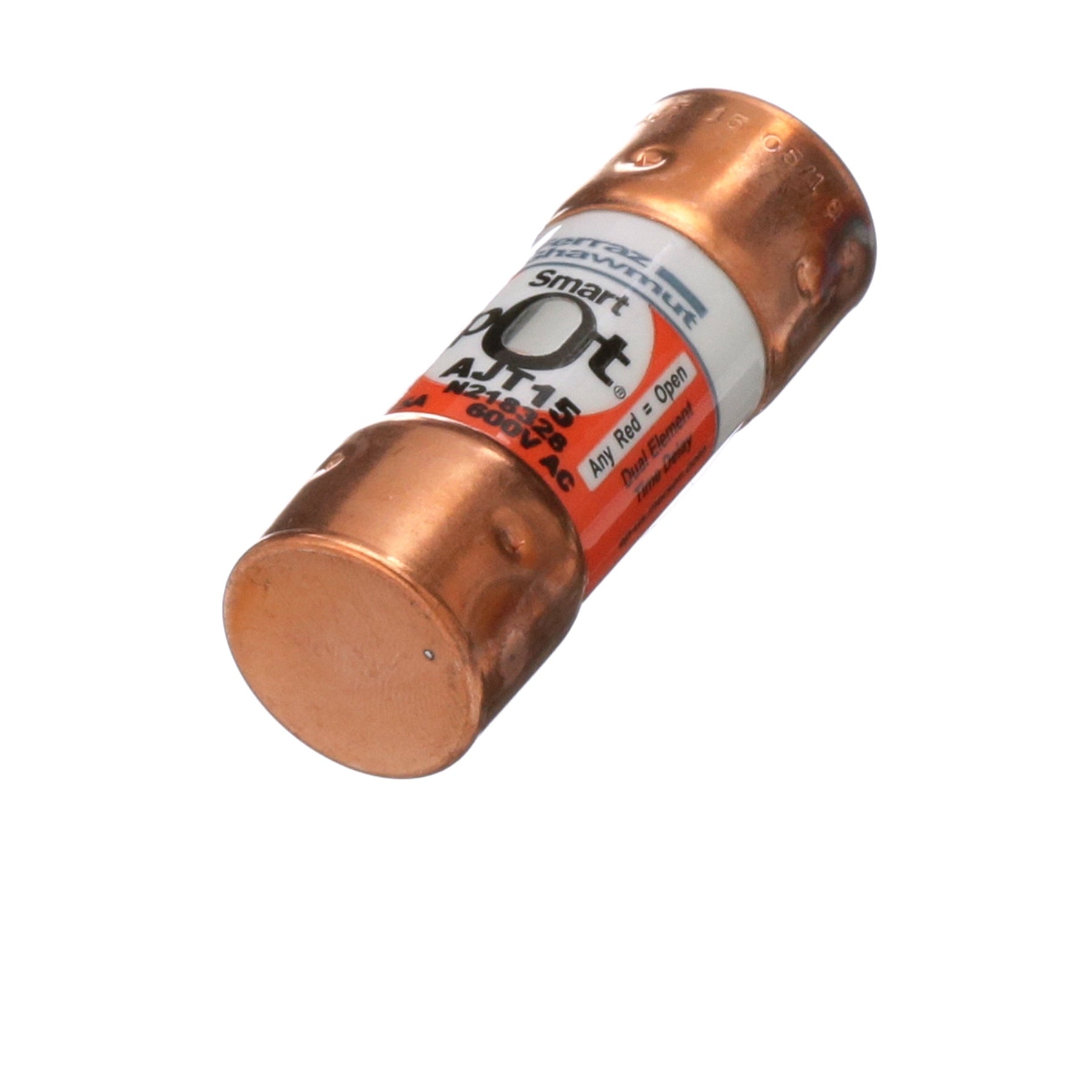

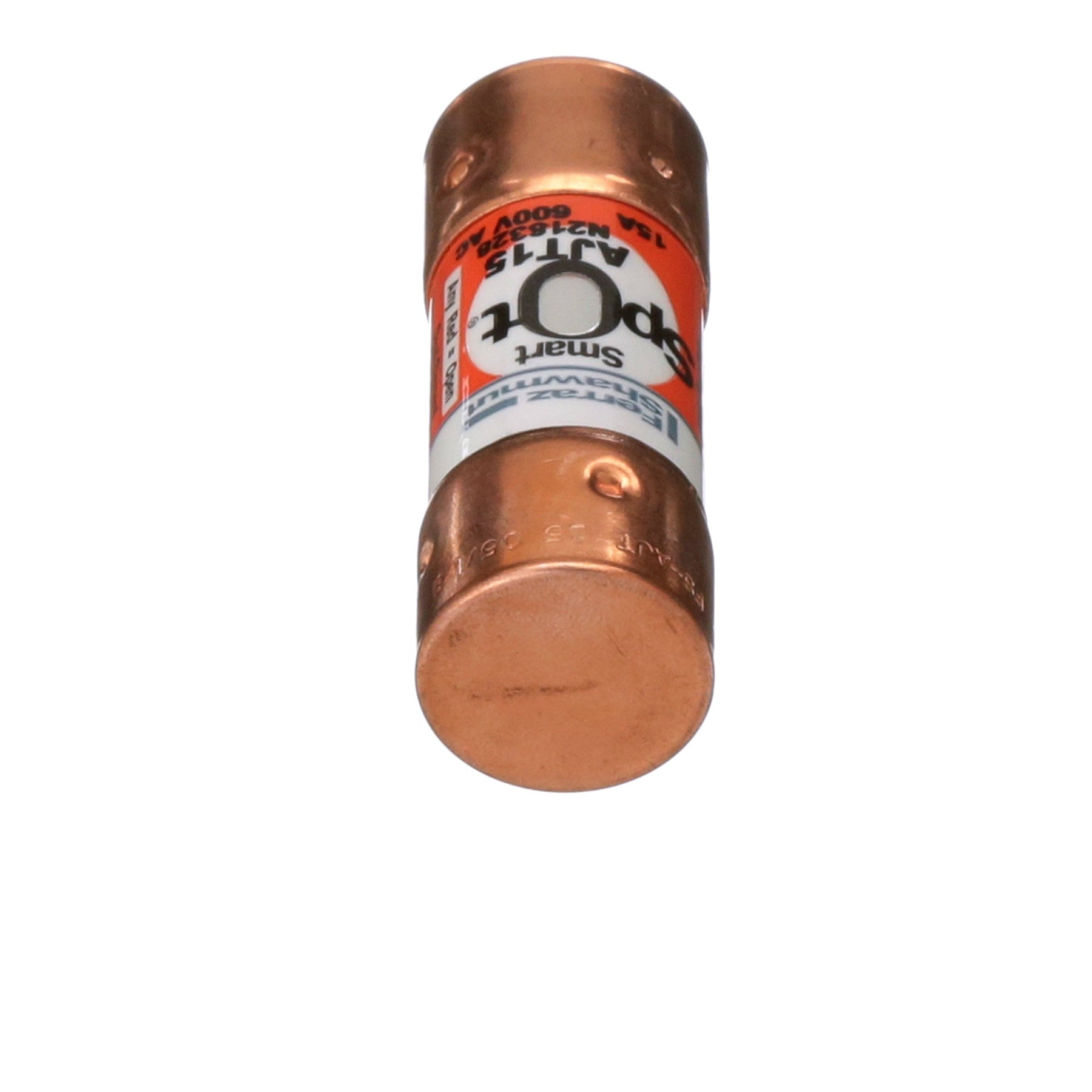

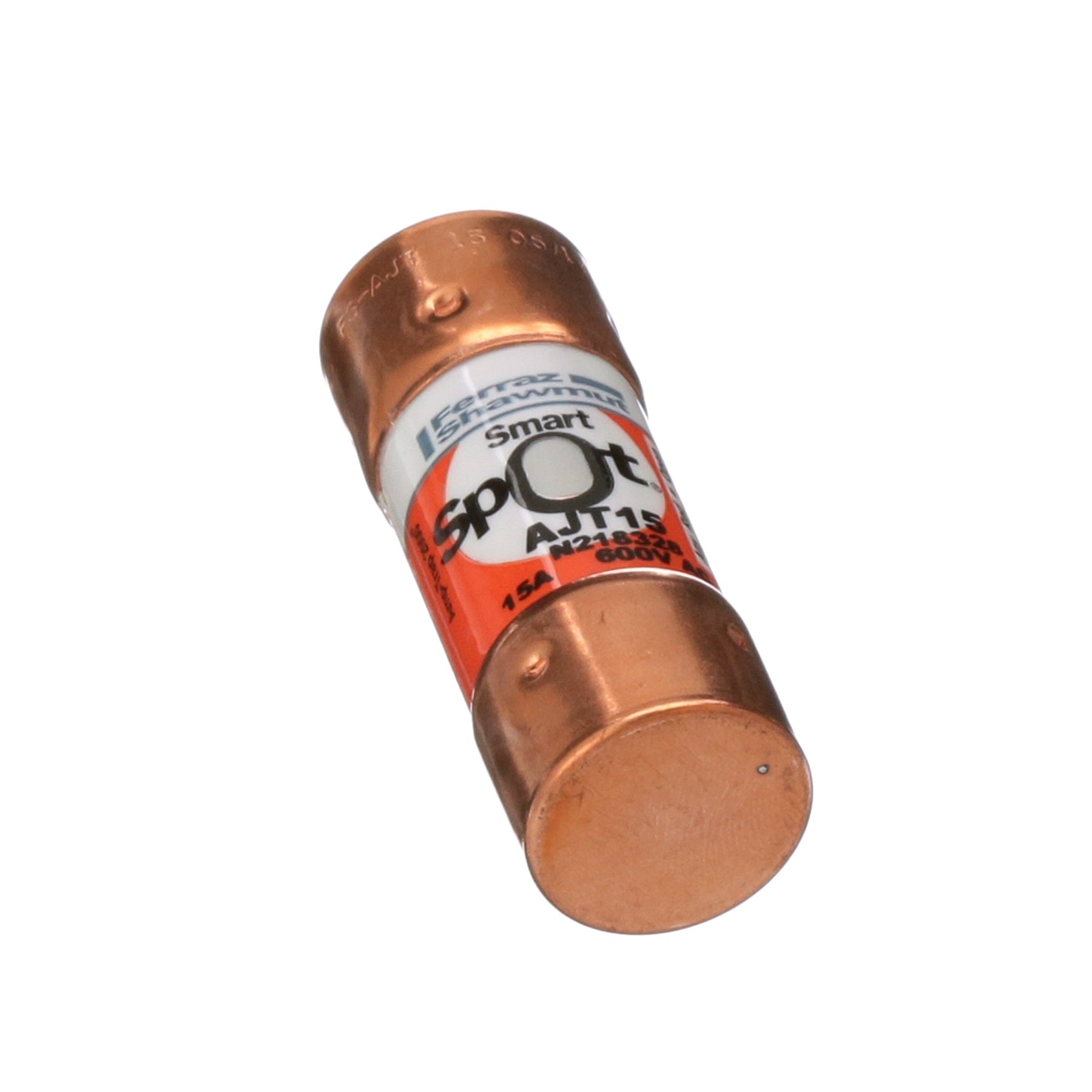

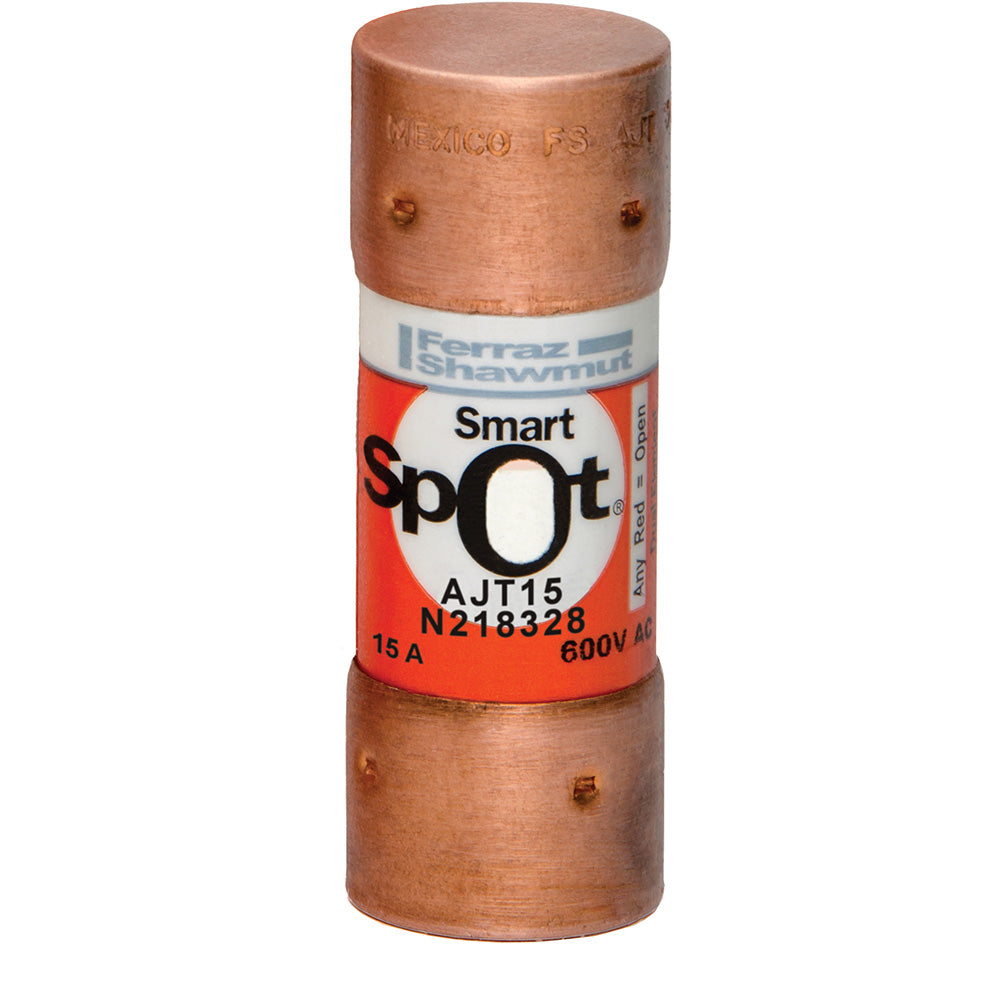

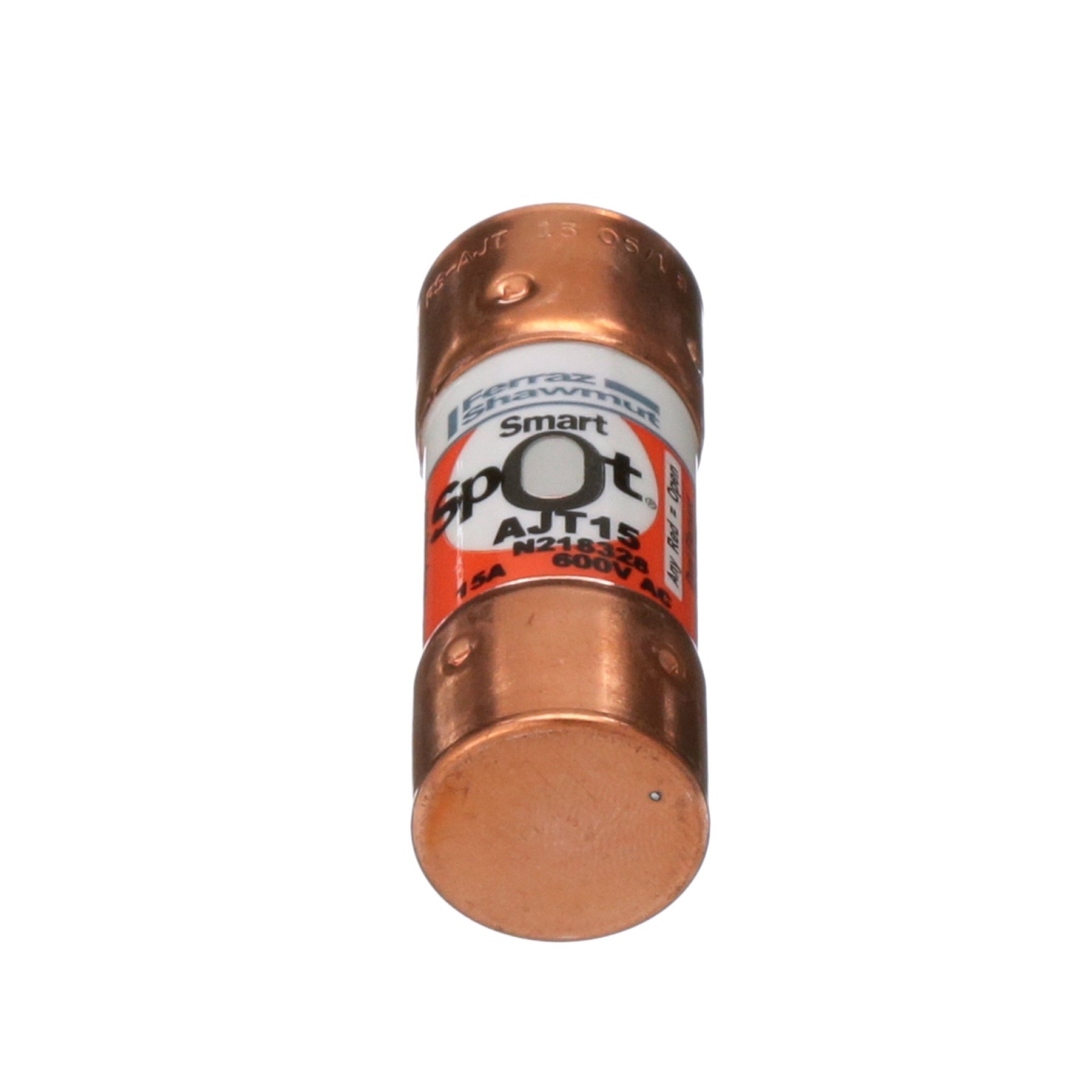

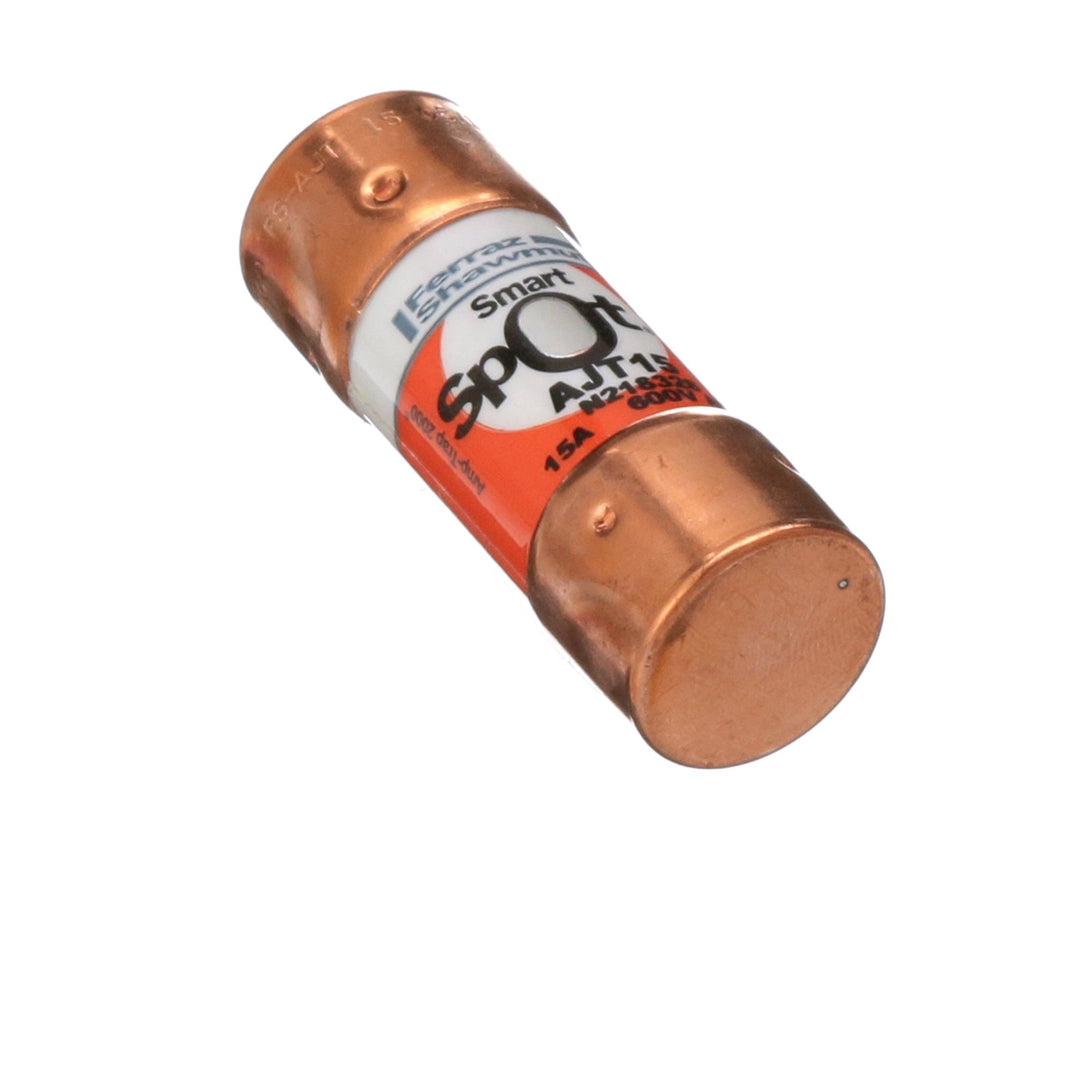

Mersen AJT15 - Class J Time-Delay Fuse 15A 600V (200kA AIC Rating)

Mersen AJT15 is a Class J time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This 600VAC-rated fuse features a 15A current rating with 200kA interrupting capacity at 600V, providing reliable protection against short circuits and overload conditions. The fuse construction includes a single-barrel design measuring 2-1/4" in length with 0.81" diameter, manufactured to UL/CSA standards for safety and performance compliance. Its time-delay characteristics make it suitable for motor circuits and transformer protection where temporary inrush currents must be accommodated without nuisance tripping, ensuring continuous operation in demanding industrial environments.

Key Features & Specifications

• Type: Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 2-1/4" length, 0.81" diameter
• Standards: UL/CSA certified
• Applications: Motor circuits, transformer protection, industrial power distribution
• AIC rating: 200kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 5 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001962470
• GTIN: 00782001962470
