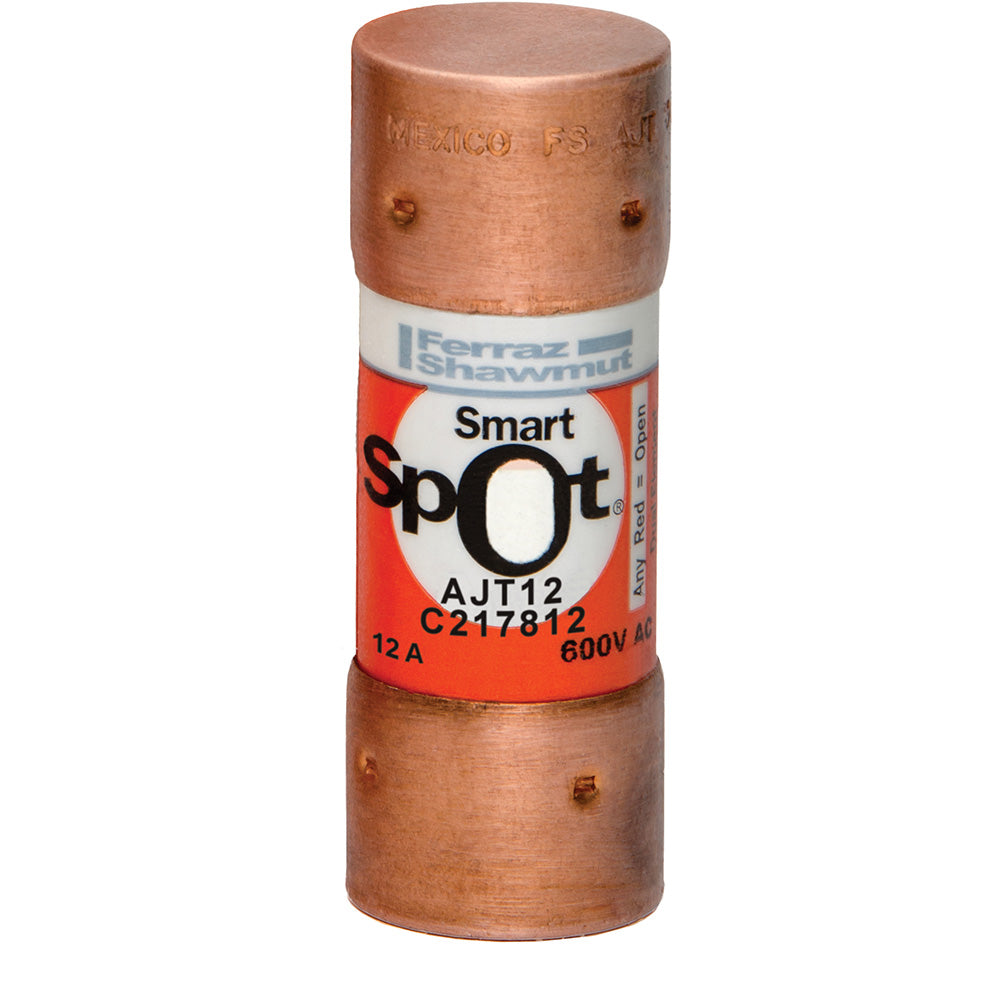

Mersen AJT12 - Class J Fuse 12A 600V (200kA AIC)

Mersen AJT12 is a Class J low-voltage fuse from the Amp-Trap 2000 series, designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 12A current capacity and a high interrupting rating of 200kA at 600V for reliable short-circuit protection. The fuse has a compact cylindrical design with a 0.81" diameter and 2-1/4" length, constructed with a single barrel configuration and weighing 5 lb. UL/CSA certified, this Mexico-manufactured fuse meets stringent safety standards for use in motor circuits, transformers, and power distribution panels requiring Class J protection.

Key Features & Specifications

• Type: AJT Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 2-1/4" length x 0.81" diameter
• Standards: UL/CSA certified
• Applications: Motor circuits, transformers, power distribution
• Class Rating: J
• AIC rating: 200kA@600V
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001963101
• GTIN: 00782001963101
