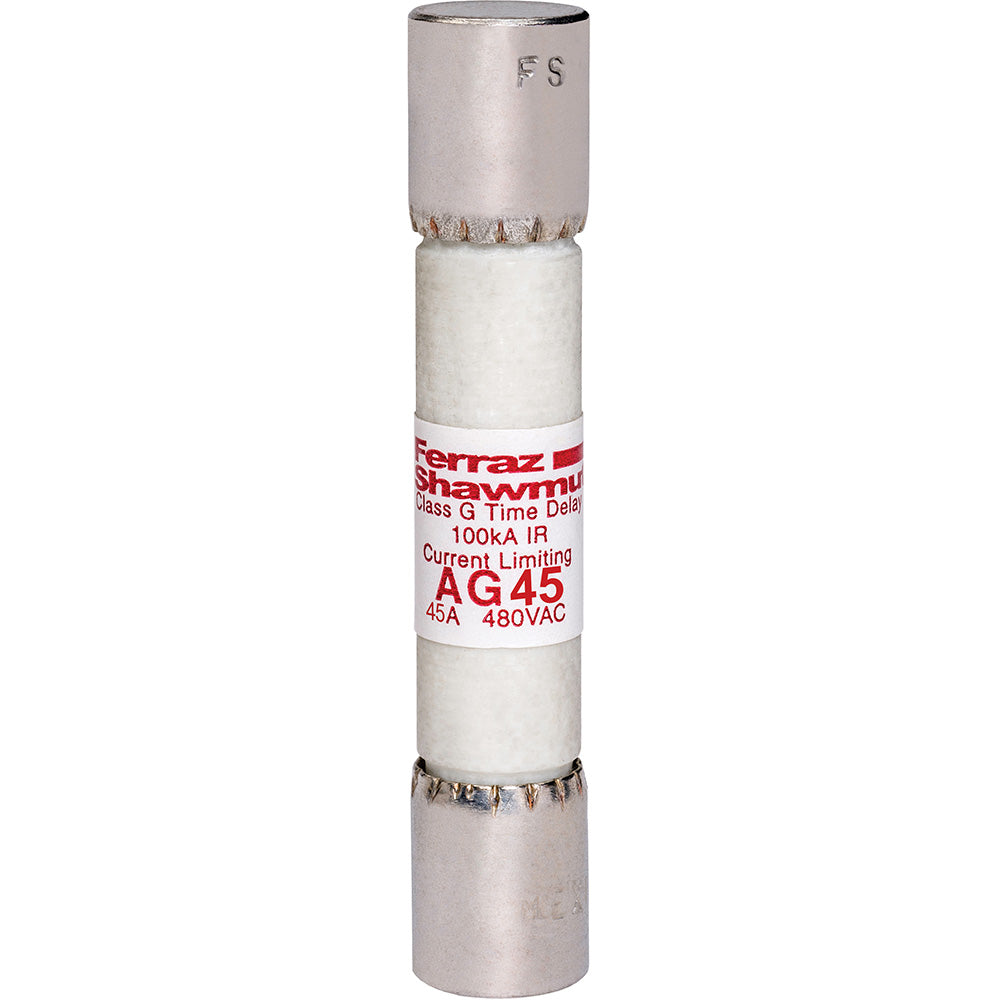

Ferraz Shawmut AG45 - Class G Fuse 45A@480V (100kA AIC)

Ferraz Shawmut AG45 is a Class G low-voltage fuse designed for circuit protection in industrial applications. Rated for 480V AC systems with a 45A current capacity, it features a compact 2-1/4" cylindrical design with 0.41" diameter and 0.03 lb weight. The fuse meets CSA C22.2 No. 248.5 and UL 248-5 standards, offering 100kA interrupting capacity for reliable short-circuit protection in motor control centers and power distribution equipment.

Key Features & Specifications

• Type: AG class time-delay fuse with single barrel construction
• Voltage Rating: 480V AC
• Current Rating: 45A
• Dimensions: 2-1/4" length x 0.41" diameter
• Weight: 0.03 lb
• Standards: CSA C22.2 No. 248.5, UL 248-5
• AIC Rating: 100kA@480V
• Class Rating: G
• Certification: CSA Certified, UL Listed
• Applications: Motor protection, power distribution panels, industrial controls

Product Identification

• UPC: 782001905200
• GTIN: 00782001905200
