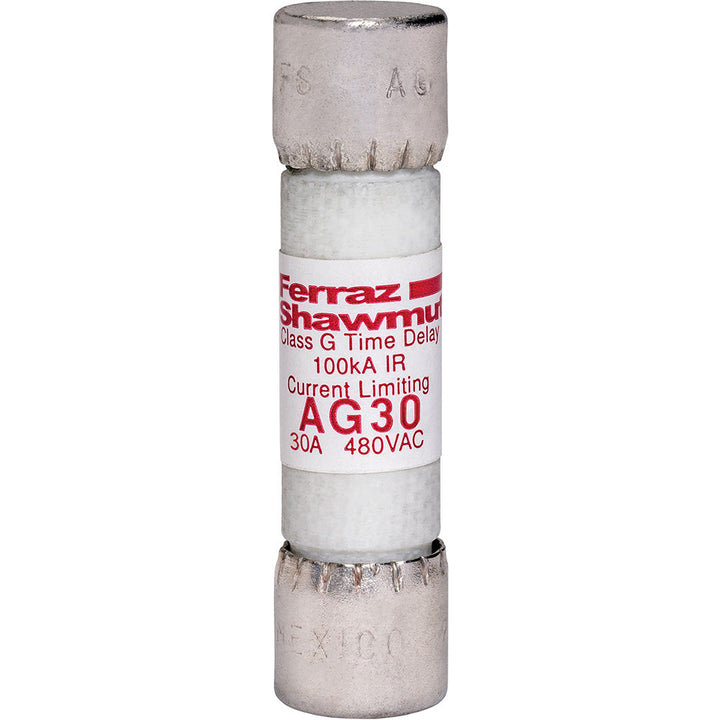

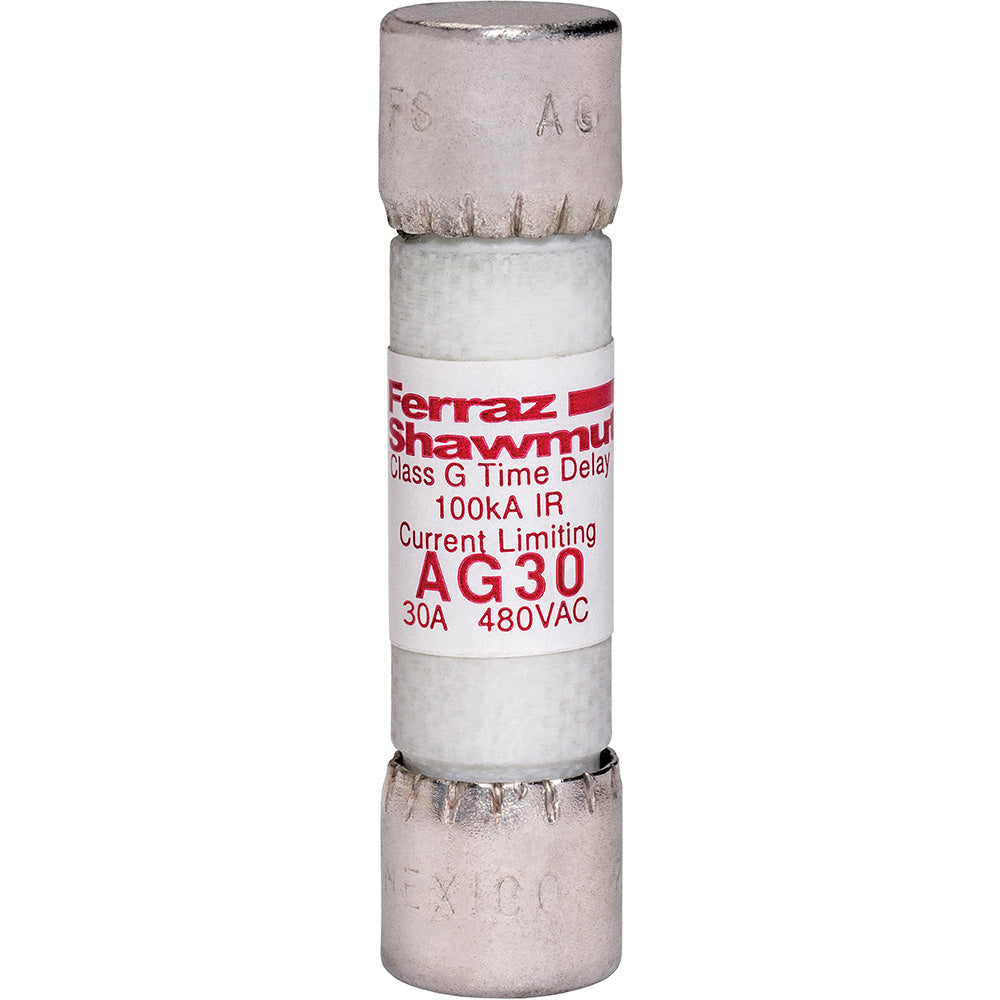

Mersen AG30 - Class G Fuse 30A 480V (100kA AIC Rating)

Mersen AG30 is a Class G low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial electrical systems. This 30A fuse features a 480V AC rating with exceptional 100kA interrupting capacity, housed in a compact single-barrel construction measuring 1-5/8" in length and 0.41" in diameter. The fuse meets rigorous safety standards with CSA certification to C22.2 No. 248.5 and UL 248-5 listing, ensuring reliable performance in demanding environments. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high-fault current protection is critical.

Key Features & Specifications

• Type: Class G current-limiting fuse with Amp-Trap technology
• Voltage Rating: 480V AC
• Current Rating: 30A
• Dimensions: 1-5/8" length, 0.41" diameter
• Standards: CSA Certified to C22.2 No. 248.5, UL Listed 248-5
• Applications: Motor protection, feeder circuits, industrial control panels
• AIC rating: 100kA@480V
• Barrels: 1
• Class Rating: G
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001905170
• GTIN: 00782001905170
