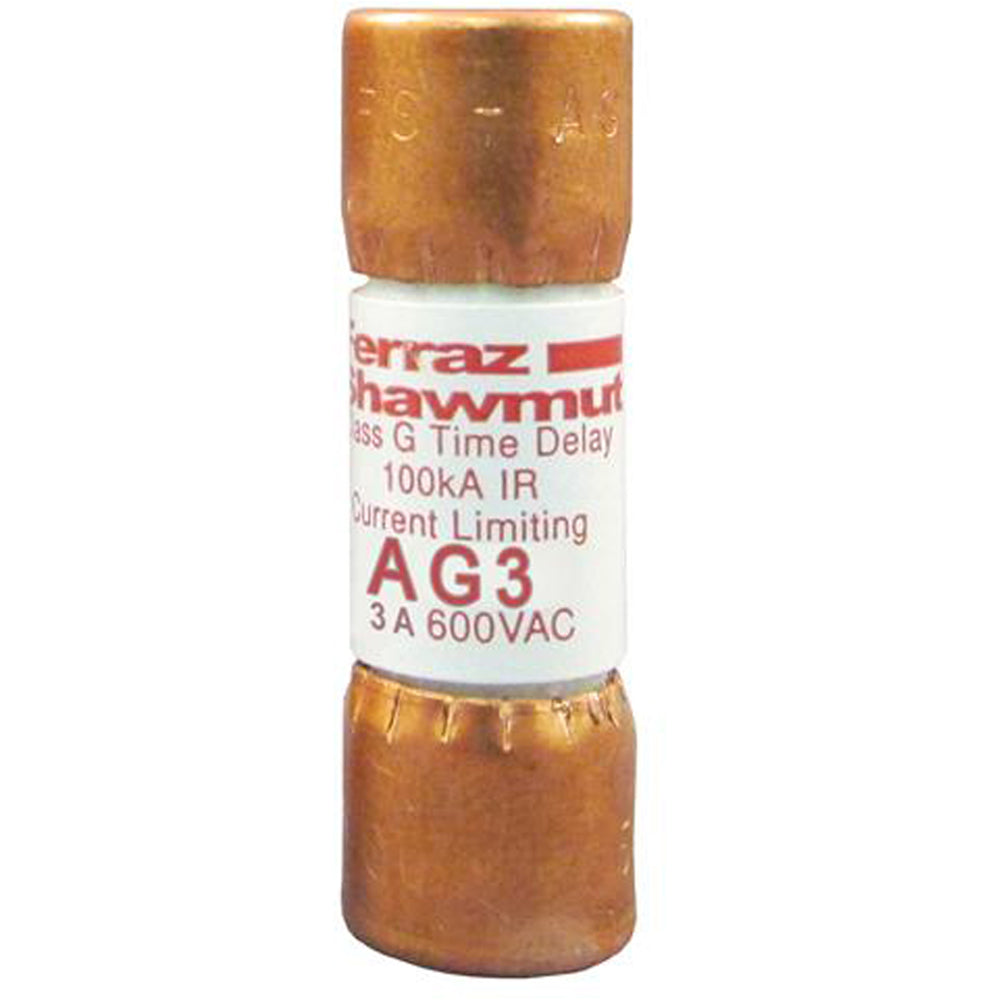

Mersen AG3 - Class G Fuse 3A 600V (100kA AIC)

Mersen AG3 is a Class G low-voltage fuse from the Amp-Trap family, designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 3A current capacity and 100kA interrupting rating at 600V for reliable short-circuit protection. The compact cylindrical design measures 1.31 inches in length with a 0.41-inch diameter, constructed with a single barrel configuration weighing 0.02 lb. Certified to CSA C22.2 No. 248.5 and UL 248-5 standards, this Mexico-manufactured fuse is engineered for motor control centers, transformers, and power distribution equipment requiring Class G protection.

Key Features & Specifications

• Type: AG Class G time-delay fuse with single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 1.31 in length x 0.41 in diameter
• Standards: CSA C22.2 No. 248.5, UL 248-5
• Applications: Motor controls, transformers, power distribution
• Class Rating: G
• AIC rating: 100kA@600V
• Weight: 0.02 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001905088
• GTIN: 00782001905088
