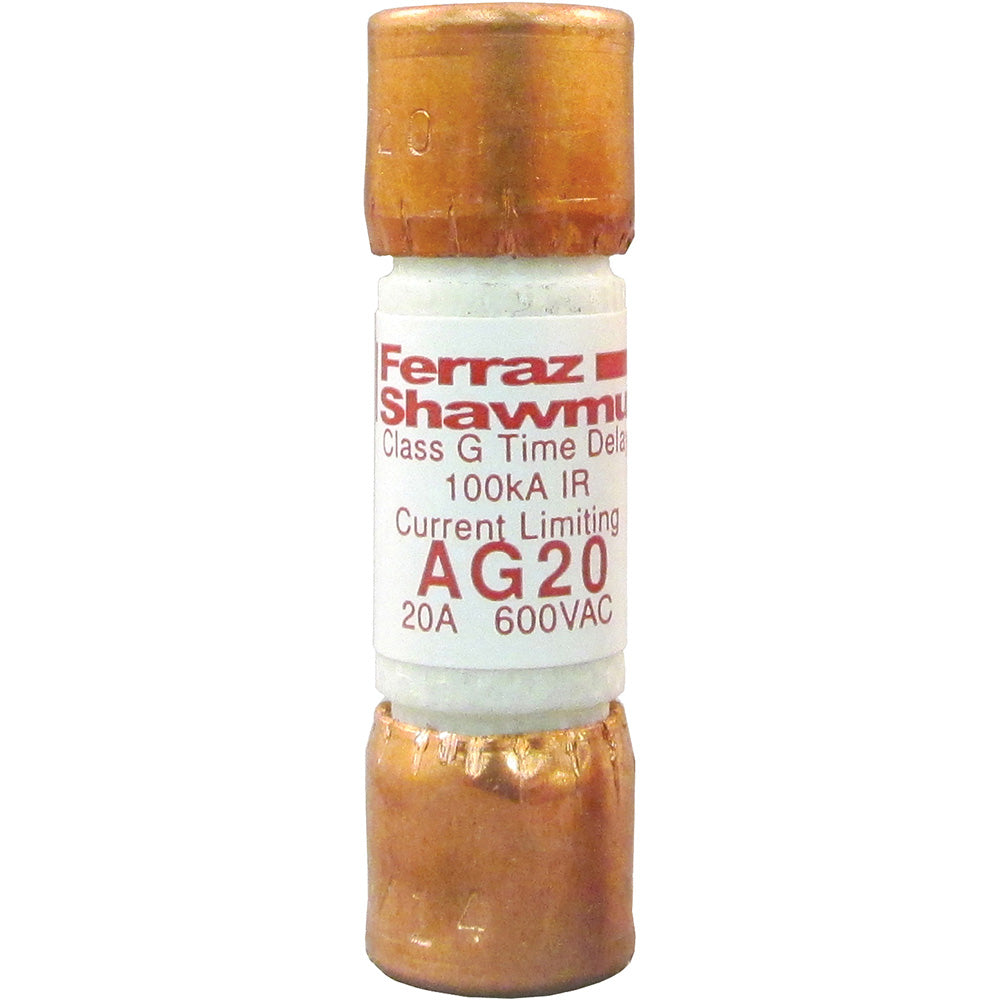

Mersen AG20 - Class G Fuse 20A 600V (100kA AIC Rating)
Regular price
$11.90
$11.90
Regular price
$106.89
$106.89
Sale price
$11.90
$11.90
Save $94.99
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen AG20 is a Class G low-voltage fuse designed for comprehensive circuit protection in industrial applications. This 20A fuse features a 600V AC rating and provides reliable overcurrent protection with a 100kA interrupting capacity at rated voltage. Constructed as a single-barrel design with a 0.41-inch diameter and 1-7/16-inch length, the fuse weighs 5 lb and is manufactured in Mexico as part of the Amp-Trap family. It meets rigorous safety standards through CSA certification to C22.2 No. 248.5 and UL Listing 248-5 compliance. Typical applications include industrial control circuits, motor branch circuits, and feeder protection where high-interrupting capacity and time-delay characteristics are required.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Class G low-voltage fuse, single-barrel construction, time-delay characteristic
- Voltage Rating: 600V AC
- Current Rating: 20A
- Dimensions: 1-7/16" length, 0.41" diameter
- Standards: CSA Certified to C22.2 No. 248.5, UL Listed 248-5
- Applications: Industrial control circuits, motor protection, feeder circuits
- AIC rating: 100kA@600V
- Class Rating: G
- Barrels: 1
- Weight: 5 lb
- Family: Amp-Trap
- Country of Origin: Mexico
Product Identification
- UPC: 782001905156
- GTIN: 00782001905156
