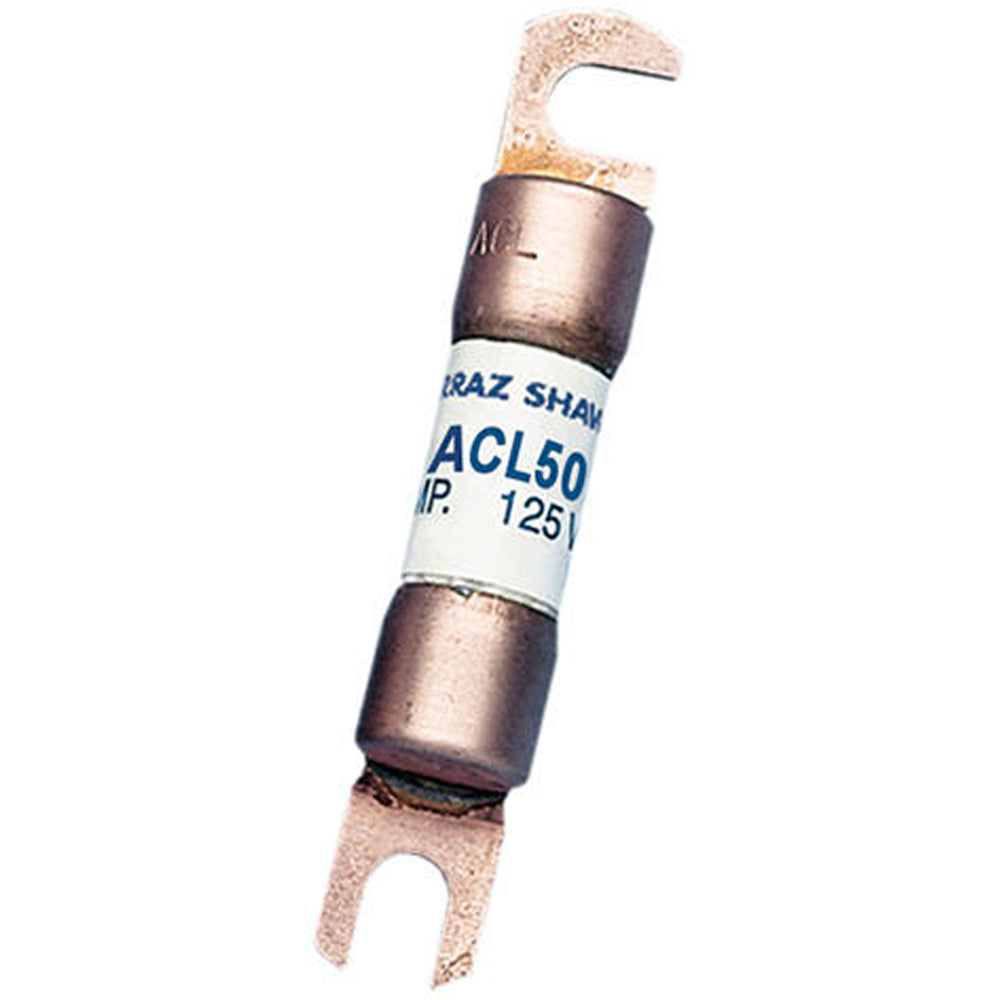

Ferraz Shawmut ACL50 - Low Voltage Fuse 50A (100kA@125V Interrupting Capacity)

Ferraz Shawmut ACL50 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 50A fuse features a 125V AC rating with a 100kA interrupting capacity, housed in a compact 3-1/16" long cylindrical body with 1" diameter and forklift connection terminals. UL Recognized to standard 248-1 (File E60314 JFHR2), it provides reliable short-circuit protection for motor control centers, power distribution panels, and industrial machinery applications.

Key Features & Specifications

• Type: ACL series current-limiting fuse with single barrel construction
• Voltage Rating: 125V AC
• Current Rating: 50A
• Dimensions: 3-1/16" length x 1" diameter
• Weight: 1 lb
• Standards: UL 248-1 (File E60314 JFHR2)
• Applications: Motor controls, power distribution, industrial equipment
• AIC rating: 100kA@125V
• Connection: Forklift terminal
• Certification: UL Recognized Component
• Country of Origin: Mexico

Product Identification

• UPC: 782001791407
• GTIN: 00782001791407
