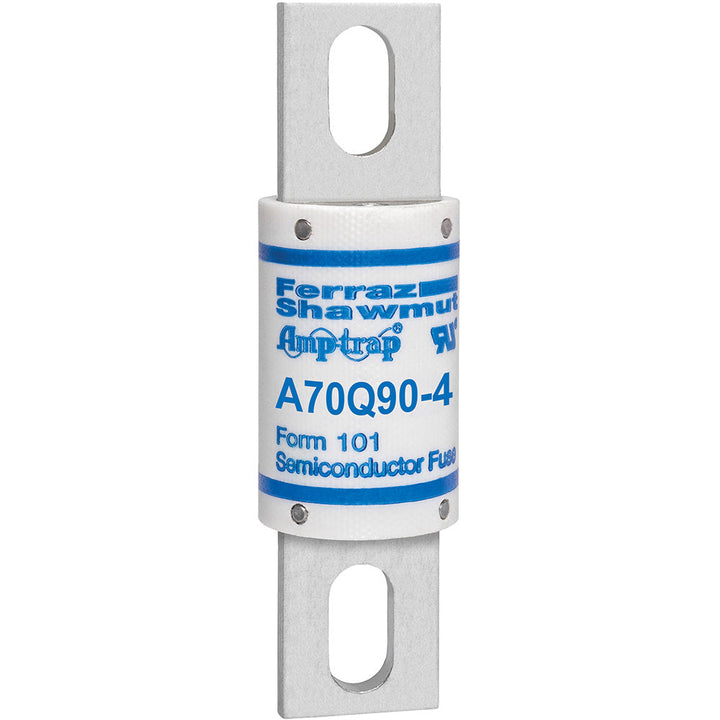

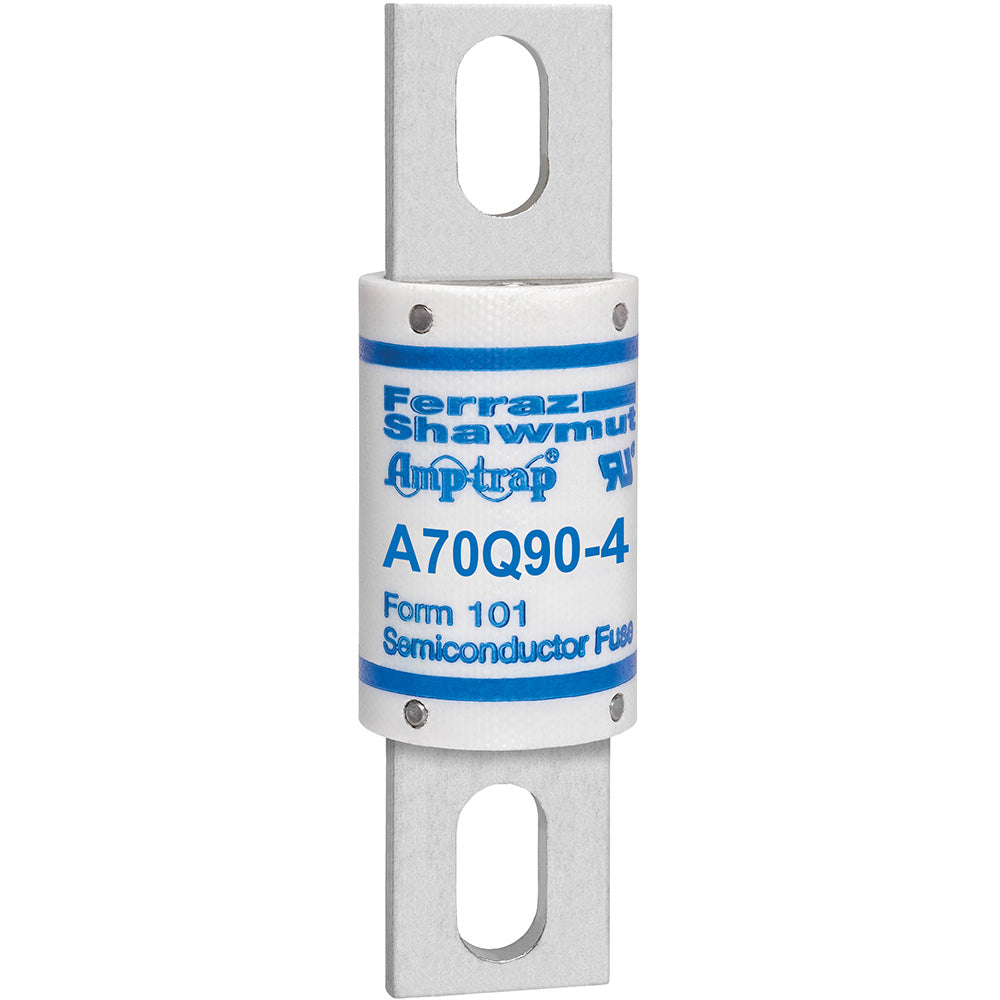

Federal Pacific A70Q90-4 - Current-Limiting Fuse 90A@700V (100kA AIC)

Federal Pacific A70Q90-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered for circuit protection in industrial power distribution systems. Rated for 700V AC operation with a 90A current capacity, this single-barrel fuse features a 100kA interrupting capacity at rated voltage for reliable fault protection. The 4.37-inch long fuse body with 1.22-inch diameter construction meets CE and UL standards (Guide JFHR2, File E60314) for safety compliance. Designed for demanding environments, it provides critical protection in motor control centers, switchgear, and industrial panelboards where high fault currents may occur.

Key Features & Specifications

• Type: A70Q current-limiting fuse with single barrel design
• Voltage Rating: 700V AC
• Current Rating: 90A
• Dimensions: 4.37 in length x 1.22 in diameter
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Industrial power distribution, motor control centers
• AIC rating: 100kA@700V
• Barrels: 1
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 078200114112
• GTIN: 00782001141127
