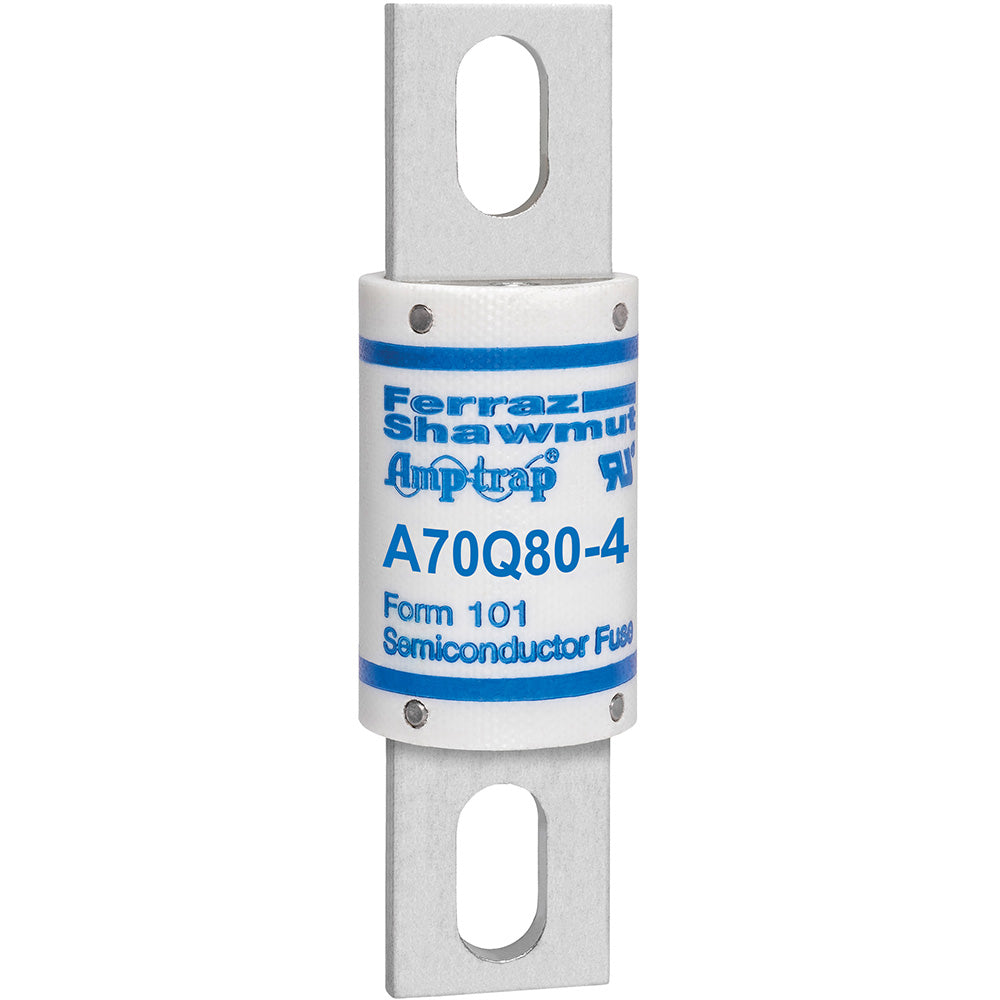

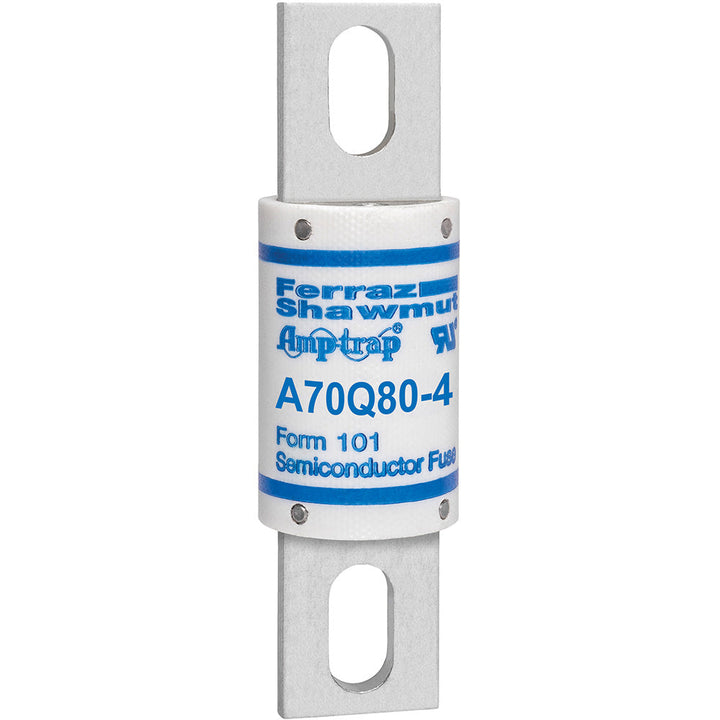

Cutler Hammer A70Q80-4 - Low Voltage Current-Limiting Fuse 80A (100kA AIC @ 700V)

Cutler Hammer A70Q80-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 700V AC voltage rating and an 80A current rating, capable of interrupting up to 100kA short-circuit currents. The fuse is constructed as a single-barrel design with a 1.22-inch diameter and 4.37-inch length, weighing 5.19 lb for robust physical durability. It complies with UL recognition under Guide JFHR2 (File E60314) and carries CE certification for international standards adherence. This fuse is typically applied in motor control centers, industrial control panels, and power distribution equipment where high-interrupting capacity protection is required.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel
• Voltage Rating: 700V AC
• Current Rating: 80A
• Dimensions: 4.37 in Length x 1.22 in Diameter
• Standards: UL Recognized (Guide JFHR2, File E60314), CE Certified
• Applications: Motor Control Centers, Industrial Control Panels, Power Distribution
• AIC rating: 100kA @ 700V AC
• Certification: CE, UL Recognized
• Barrels: 1
• Weight: 5.19 lb
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 78200114111
• GTIN: 00782001141110
