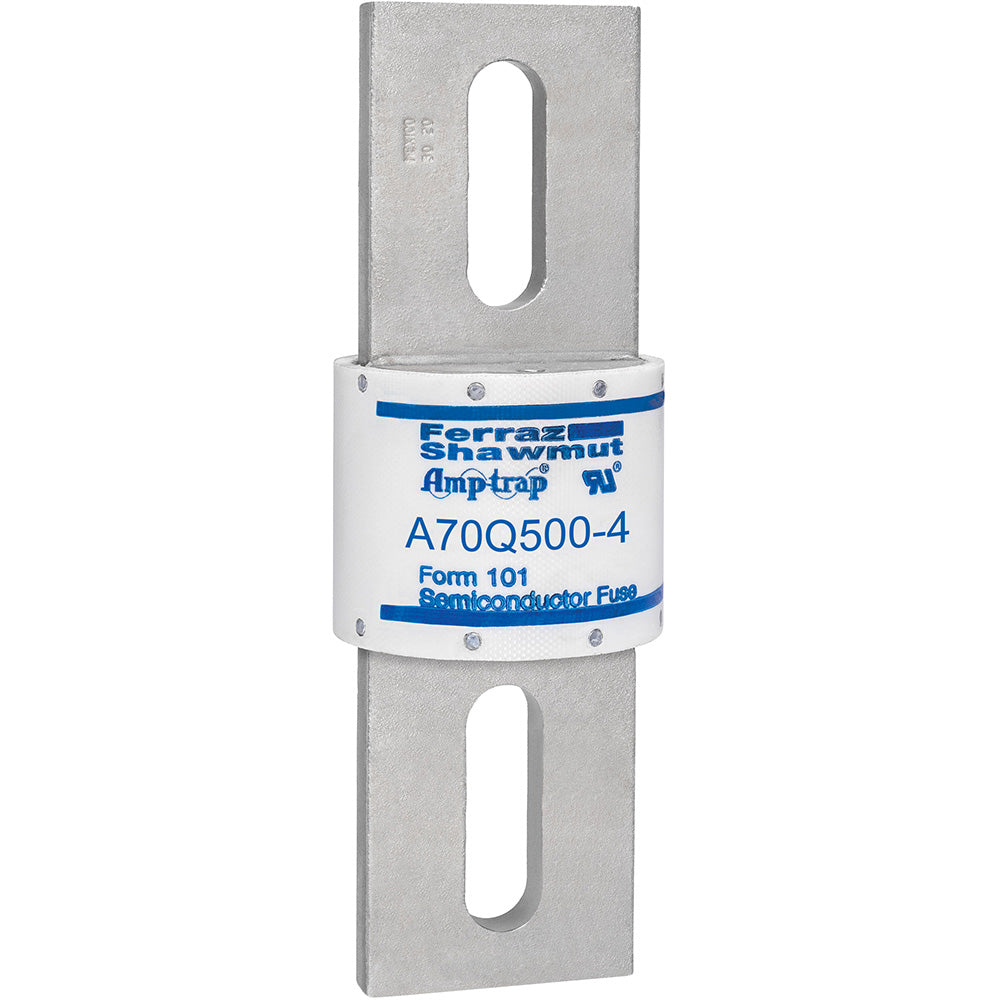

Cutler-Hammer A70Q500-4 - Amp-Trap Class Fuse 500A (100kA AIC @ 700V)

The Cutler-Hammer A70Q500-4 is a low-voltage Amp-Trap fuse engineered to provide reliable overcurrent protection for industrial electrical systems. It features a 500A current rating and a 700V voltage rating, capable of interrupting faults up to 100kA. The fuse is constructed as a single-barrel unit with a 2.5-inch diameter and a weight of 2 lb, designed for robust performance. It is built to meet stringent industry standards for safety and reliability. This fuse is typically applied in motor control centers, industrial control panels, and feeder circuits where high-interrupting capacity is critical.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Amp-Trap Class, Single Barrel
• Voltage Rating: 700V AC
• Current Rating: 500A
• Dimensions: 2.5-inch Diameter
• Standards: Industry Standards for Overcurrent Protection
• Applications: Motor Control Centers, Industrial Control Panels, Feeder Circuits
• AIC rating: 100,000A @ 700V
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 782001141073
• GTIN: 00782001141073
