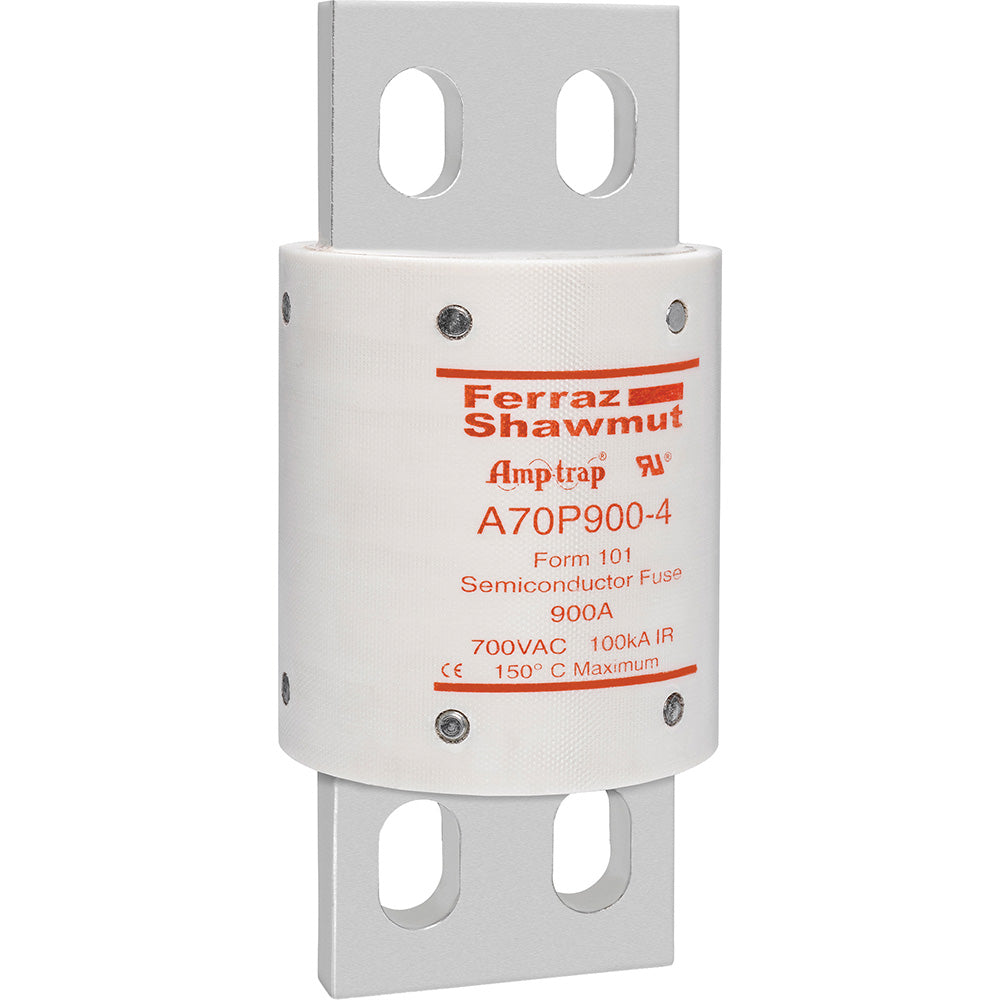

Cutler Hammer A70P900-4 - Amp-Trap Low Voltage Fuse 900A (100kA AIC @ 700V)

The Cutler Hammer A70P900-4 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for industrial electrical systems. It features a 900A current rating and a 700V AC voltage rating, capable of interrupting faults with a 100kA interrupting rating at its maximum voltage. The fuse is constructed with a single-barrel design, measures 7.59 inches in length with a 2.88-inch diameter, and utilizes a robust bolt-in blade connection for secure installation. This fuse complies with relevant industry standards for safety and performance, ensuring reliable operation in demanding environments. Typical applications include the protection of motor circuits, feeders, and branch circuits in industrial power distribution equipment.

Key Features & Specifications

• Type: Amp-Trap Low Voltage Current-Limiting Fuse, Bolt-In Blade Connection, Single Barrel
• Voltage Rating: 700V AC
• Current Rating: 900A
• Dimensions: 7.59 in Length, 2.88 in Diameter
• Standards: Industry Standards for Low Voltage Fuses
• Applications: Industrial Motor Circuits, Feeders, Branch Circuits
• AIC rating: 100kA @ 700V AC
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 4 lb

Product Identification

• UPC: 782001947538
• GTIN: 00782001947538
