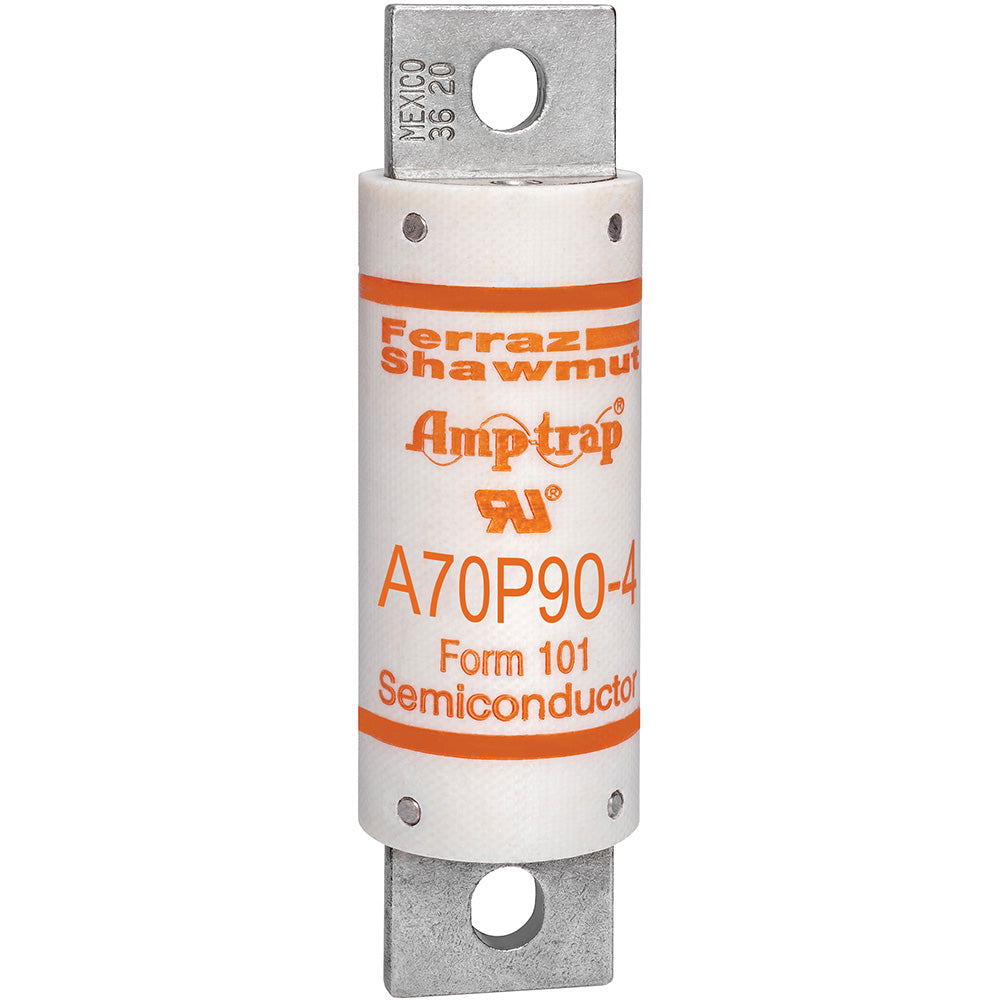

Cutler-Hammer A70P90-4 - Amp-Trap Fuse 90A (100kA AIC @ 700V)

The Cutler-Hammer A70P90-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical systems. It features a 90A current rating and a 700V AC voltage rating, with a high 100kA interrupting capacity at its rated voltage to safely clear severe fault currents. The fuse is constructed as a single-barrel unit with a 1.22-inch diameter and a robust bolt-in blade connection, contributing to its reliable performance. This fuse is designed to meet rigorous industrial standards for overcurrent protection. It is typically applied in demanding environments such as industrial control panels, motor branch circuits, and feeder circuits to protect sensitive equipment.

Key Features & Specifications

• Type: Amp-Trap Class A70P, Low Voltage Current-Limiting Fuse, Bolt-In Blade Connection
• Voltage Rating: 700V AC
• Current Rating: 90A
• Dimensions: 1.22" Diameter
• Standards: Industrial Standards for Overcurrent Protection
• Applications: Industrial Control Panels, Motor Branch Circuits, Feeder Circuits
• AIC rating: 100kA@700V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 5 lb

Product Identification

• UPC: 782001947248
• GTIN: 00782001947248
