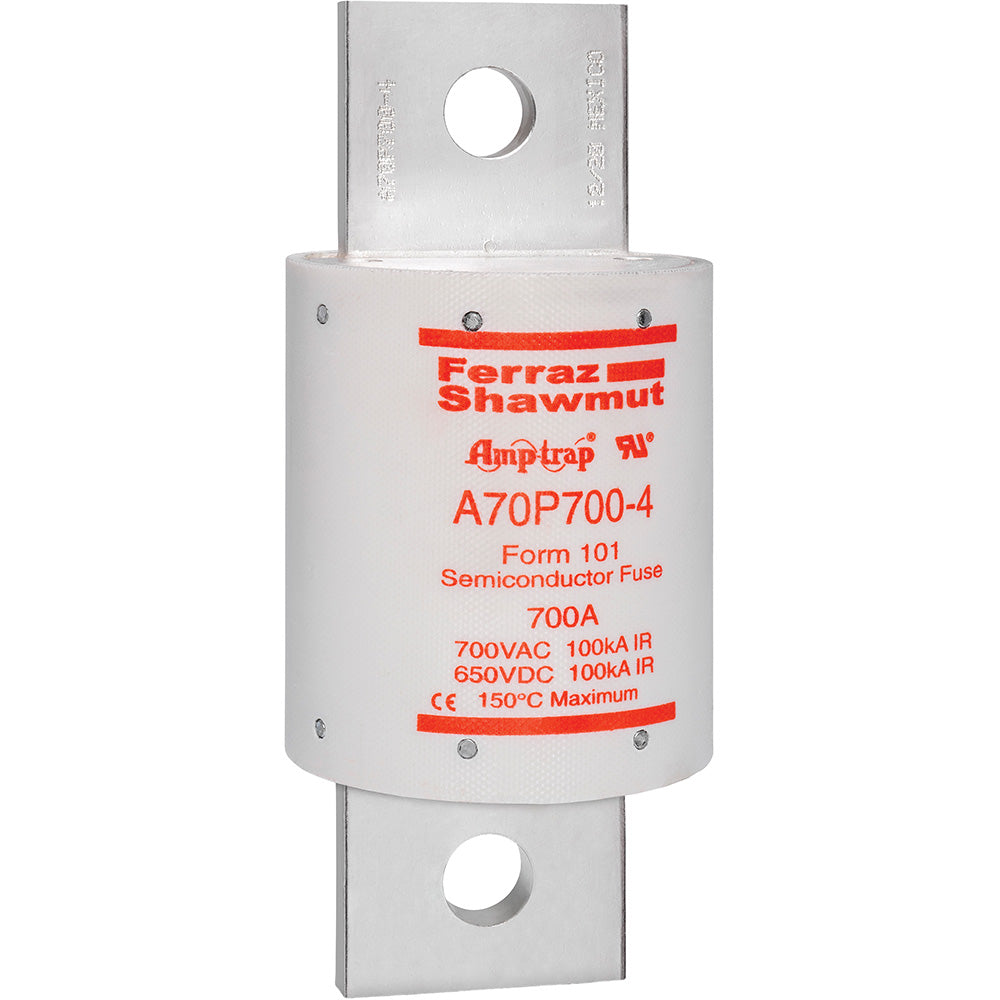

Cutler-Hammer A70P700-4 - Amp-Trap Class A70P Fuse 700A 700V (100kA AIC)

The Cutler-Hammer A70P700-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for industrial electrical systems. It features a 700A current rating and a 700V voltage rating, ensuring reliable operation under demanding conditions. The fuse is constructed with a single-barrel design, measures 2.88 inches in diameter, and utilizes a robust bolt-in blade connection for secure installation. It complies with industry standards for high-performance protection, boasting an impressive 100,000A interrupting rating at 700V. This fuse is typically applied in motor circuits, feeders, and branch circuits where high fault current protection is critical.

Key Features & Specifications

• Type: Amp-Trap Class A70P, current-limiting, low-voltage power fuse
• Voltage Rating: 700V AC
• Current Rating: 700A
• Dimensions: 2.88" Diameter
• Standards: Industry standards for high-performance protection
• Applications: Motor circuits, feeders, branch circuits
• AIC rating: 100kA @ 700V AC
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 3 lb

Product Identification

• UPC: 782001947422
• GTIN: 00782001947422
