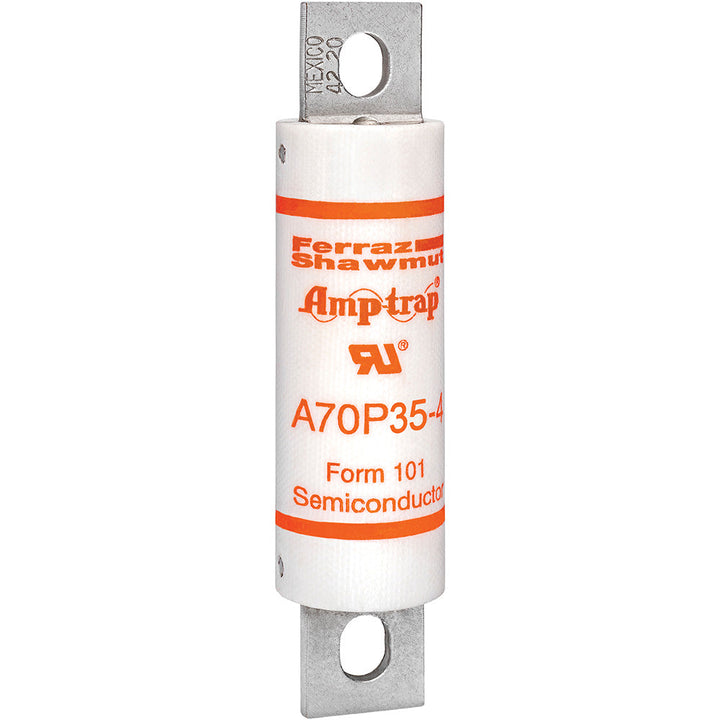

Cutler-Hammer A70P35-4 - Amp-Trap Low Voltage Fuse 35A (700V, 100kA AIC)

The Cutler-Hammer A70P35-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical systems. It features a 35A current rating and a 700V AC voltage rating, capable of interrupting up to 100,000 amperes at its rated voltage. The fuse is constructed with a single-barrel design, a 1-inch diameter, and utilizes a bolt-in blade connection for secure installation, with a total unit weight of 5 lb. This fuse is designed to meet rigorous industrial standards for safety and performance. It is typically applied in demanding environments for the protection of motor circuits, feeders, and branch circuits where high fault currents are present.

Key Features & Specifications

• Type: Amp-Trap A70P, Low Voltage Current-Limiting Fuse, Bolt-In Blade Connection
• Voltage Rating: 700V AC
• Current Rating: 35A
• Dimensions: 1 inch Diameter
• Standards: Designed to meet industrial safety and performance standards
• Applications: Protection of motor circuits, feeders, and branch circuits
• AIC rating: 100kA @ 700V AC
• Barrels: 1
• Weight: 5 lb

Product Identification

• UPC: 782001947132
• GTIN: 00782001947132
