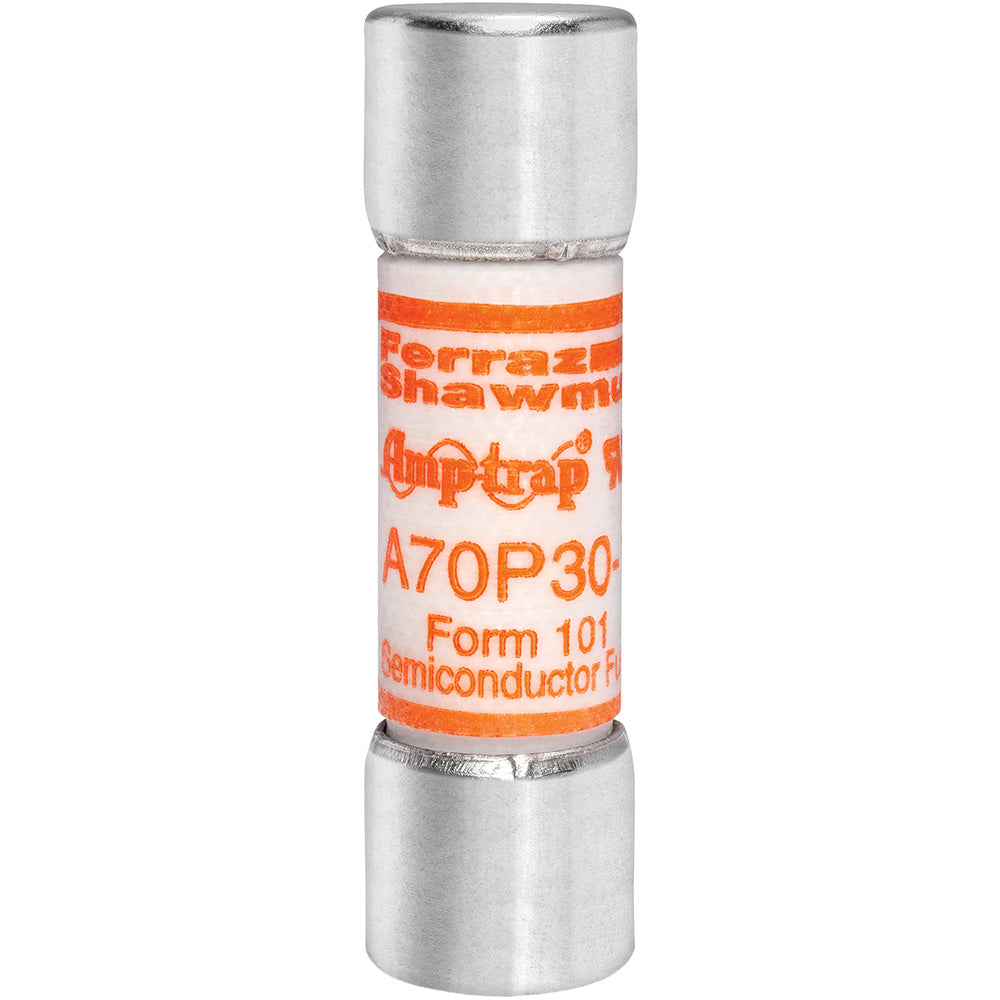

Cutler Hammer A70P30-1 - Current-Limiting Fuse 30A (100kA@700V AIC)

The Cutler Hammer A70P30-1 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 30A current rating and 700V AC voltage rating with a high 100kA interrupting capacity at rated voltage for superior fault protection. The fuse is constructed with a single-barrel design featuring 0.56-inch diameter ferrule connections and measures 2 inches in length with a weight of 0.04 lb. This fuse meets industry standards for current-limiting performance and is manufactured in Mexico to Eaton's quality specifications. Typical applications include protection of motor circuits, transformers, and power distribution equipment where high interrupting capacity and current limitation are required.

Key Features & Specifications

• Type: A70P current-limiting fuse, single barrel design with ferrule connections
• Voltage Rating: 700V AC
• Current Rating: 30A
• Dimensions: 2 inches length, 0.56 inches diameter
• Standards: Industry standard current-limiting fuse
• Applications: Motor circuit protection, transformer protection, power distribution systems
• AIC rating: 100kA@700V
• Connection: Ferrule
• Barrels: 1
• Weight: 0.04 lb
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001947125
• GTIN: 00782001947125
