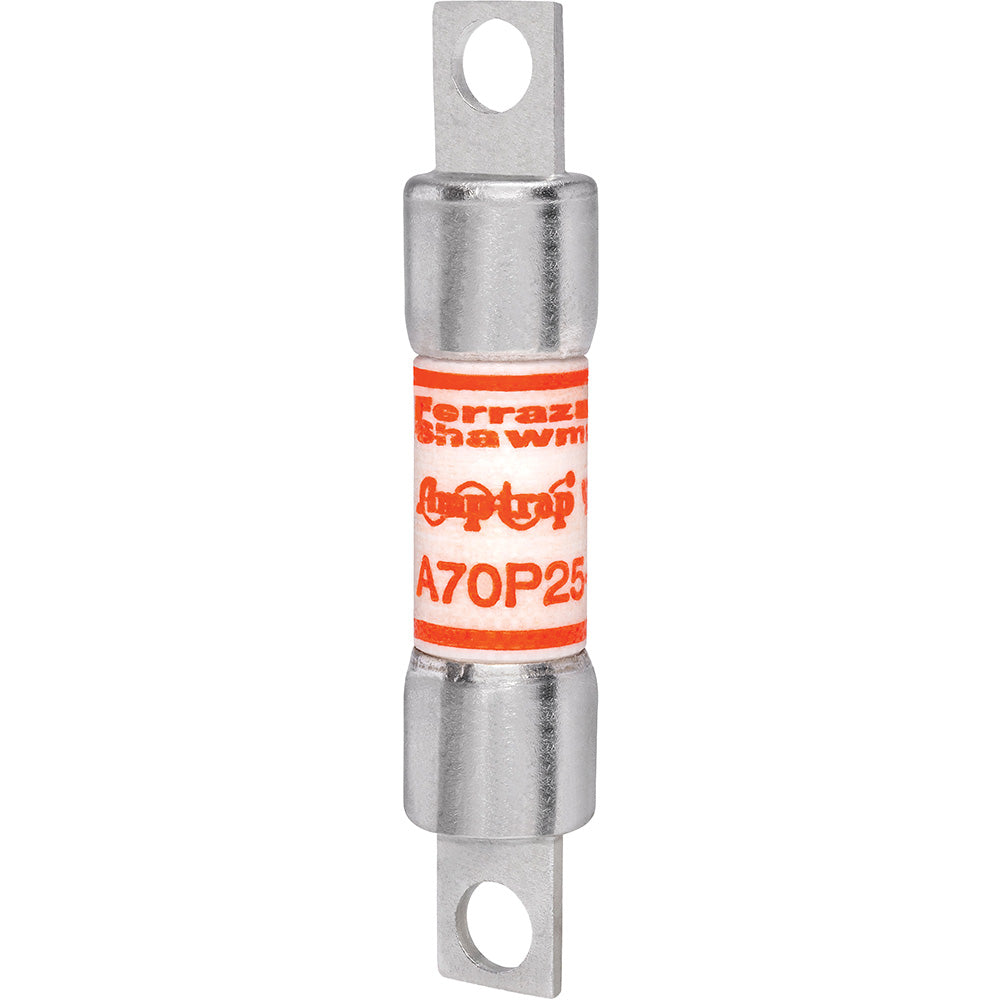

Cutler-Hammer A70P25-4 - Amp-Trap Fuse 25A (100kA AIC @ 700V)

The Cutler-Hammer A70P25-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical systems. It features a 25A current rating and a 700V AC voltage rating, capable of interrupting up to 100kA of fault current. The fuse is constructed with a single-barrel design, measures 2.88 inches in length with a 0.56-inch diameter, and utilizes a robust bolt-in blade connection for secure installation. This fuse complies with industry standards for high-performance circuit protection and is typically applied in industrial motor control centers, feeders, and branch circuits where reliable fault interruption is critical.

Key Features & Specifications

• Type: Amp-Trap A70P, Low Voltage Current-Limiting Fuse, Bolt-In Blade Connection
• Voltage Rating: 700V AC
• Current Rating: 25A
• Dimensions: 2.88 in Length, 0.56 in Diameter
• Standards: Industry Standards for High-Performance Circuit Protection
• Applications: Industrial Motor Control Centers, Feeders, Branch Circuits
• AIC rating: 100kA @ 700V AC
• Connection: Bolt-In Blade
• Barrels: 1
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse
• Country of Origin: Mexico
• Weight: 5 lb

Product Identification

• UPC: 782001948115
• GTIN: 00782001948115
