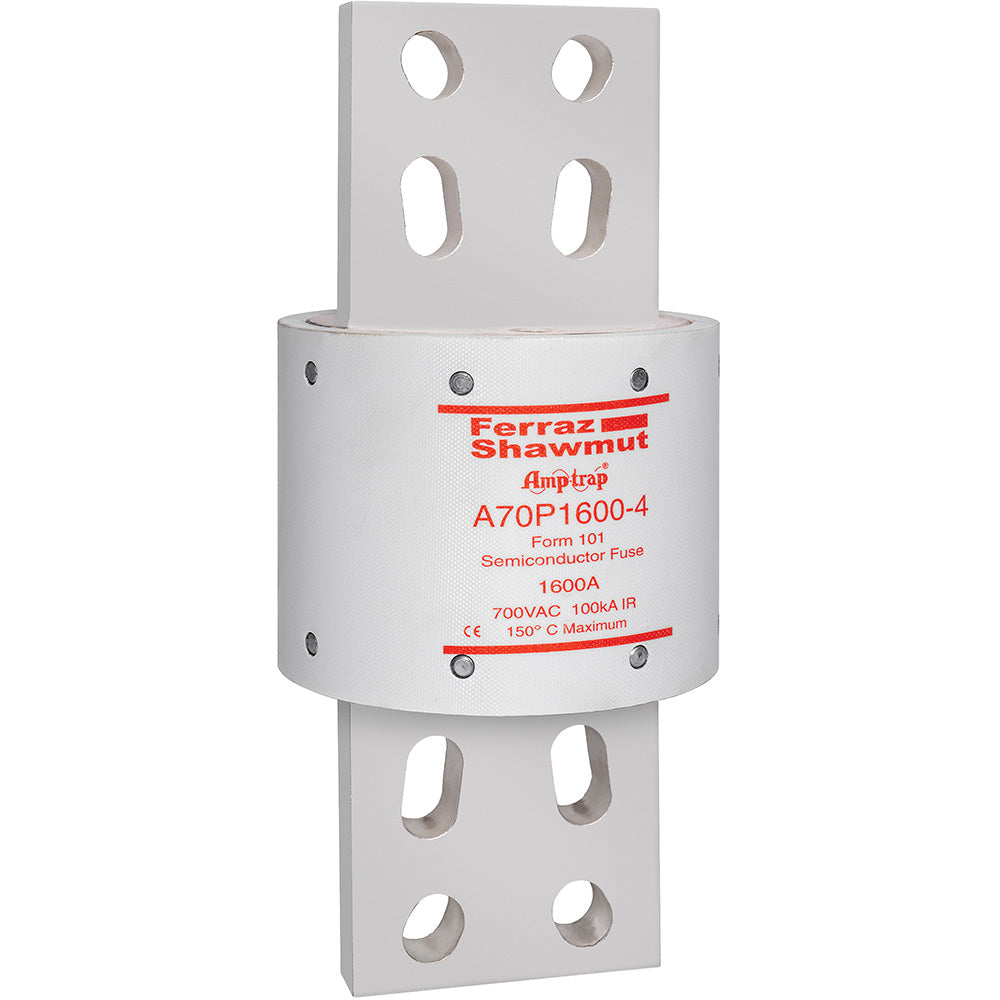

Cutler Hammer A70P1600-4 - Amp-Trap Current-Limiting Fuse 1600A (100kA AIC @ 700V)

Cutler Hammer A70P1600-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 1600A current rating and a 700V voltage rating, capable of interrupting faults with an impressive 100kA AIC rating at its rated voltage. The fuse is constructed as a single-barrel unit with a 3.5-inch diameter and utilizes a robust bolt-in blade connection for secure installation, weighing 19 lb for substantial physical presence. This fuse complies with relevant industry standards for safety and performance in demanding environments. Typical applications include protection of motor control centers, distribution panels, and other critical power distribution equipment where high fault current interruption is required.

Key Features & Specifications

• Type: Amp-Trap A70P Series, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 700V AC
• Current Rating: 1600A
• Dimensions: 3.5-inch Diameter
• Standards: Industry Standard for Low Voltage Fuses
• Applications: Motor Control Centers, Industrial Distribution Panels, Power Distribution Equipment
• AIC rating: 100kA @ 700V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 19 lb

Product Identification

• UPC: 78200194703
• GTIN: 00782001947033
