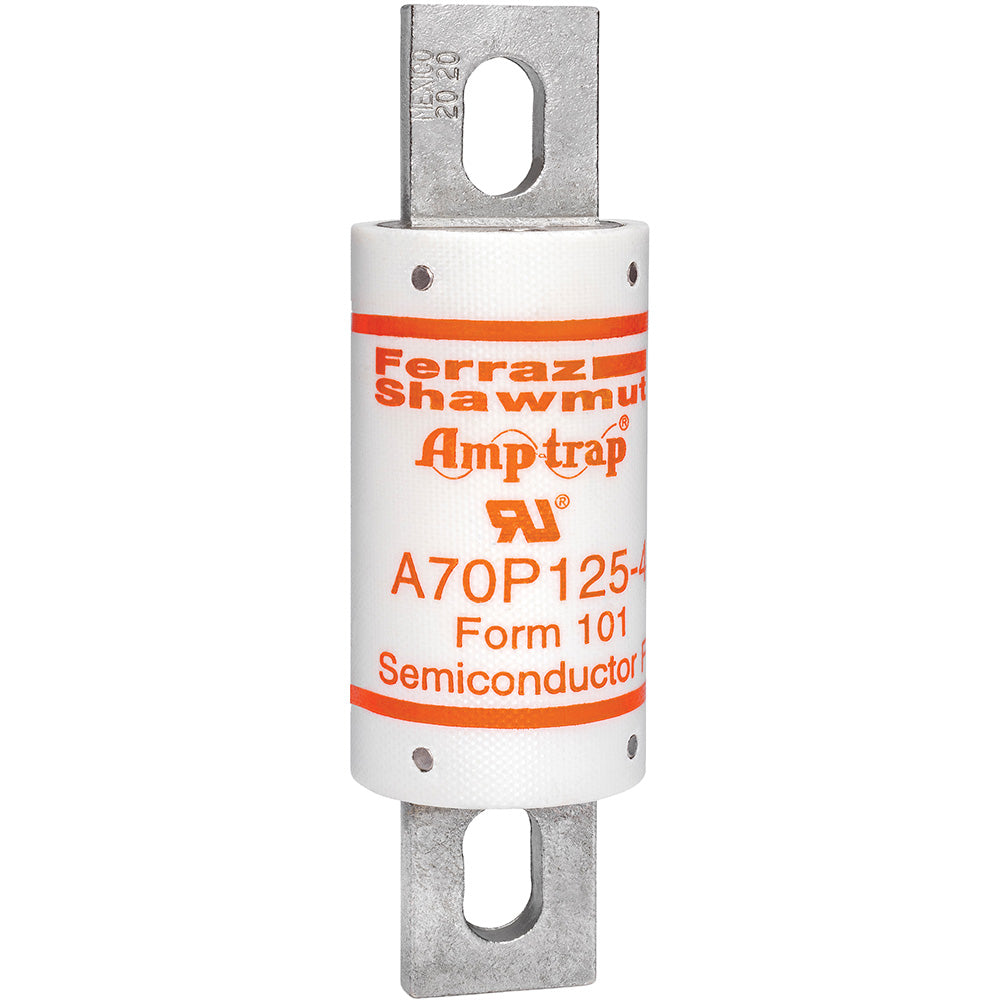

Mersen A70P125-4 - Low Voltage Fuse 125A (700V AC, 100kA AIC)

Mersen A70P125-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for robust circuit protection in industrial power distribution systems. It features a 700V AC rating with a 125A current capacity and 100kA interrupting capacity at rated voltage, ensuring reliable fault protection. The fuse has a compact bolt-in blade design with a 1.5-inch diameter and 5.09-inch length, constructed for durability in demanding environments. Compliant with industry safety standards, this Mexico-manufactured fuse is typically deployed in motor control centers, switchgear, and industrial power panels requiring high interrupting capacity.

Key Features & Specifications

• Type: A70P current-limiting fuse with bolt-in blade connection
• Voltage Rating: 700V AC
• Current Rating: 125A
• Dimensions: 1.5" diameter x 5.09" length
• Weight: 5 lb
• AIC Rating: 100kA@700V
• Connection: Bolt-In Blade
• Barrels: 1
• Standards: Industrial safety compliance
• Applications: Motor control centers, switchgear, power distribution

Product Identification

• UPC: 782001947279
• GTIN: 00782001947279
