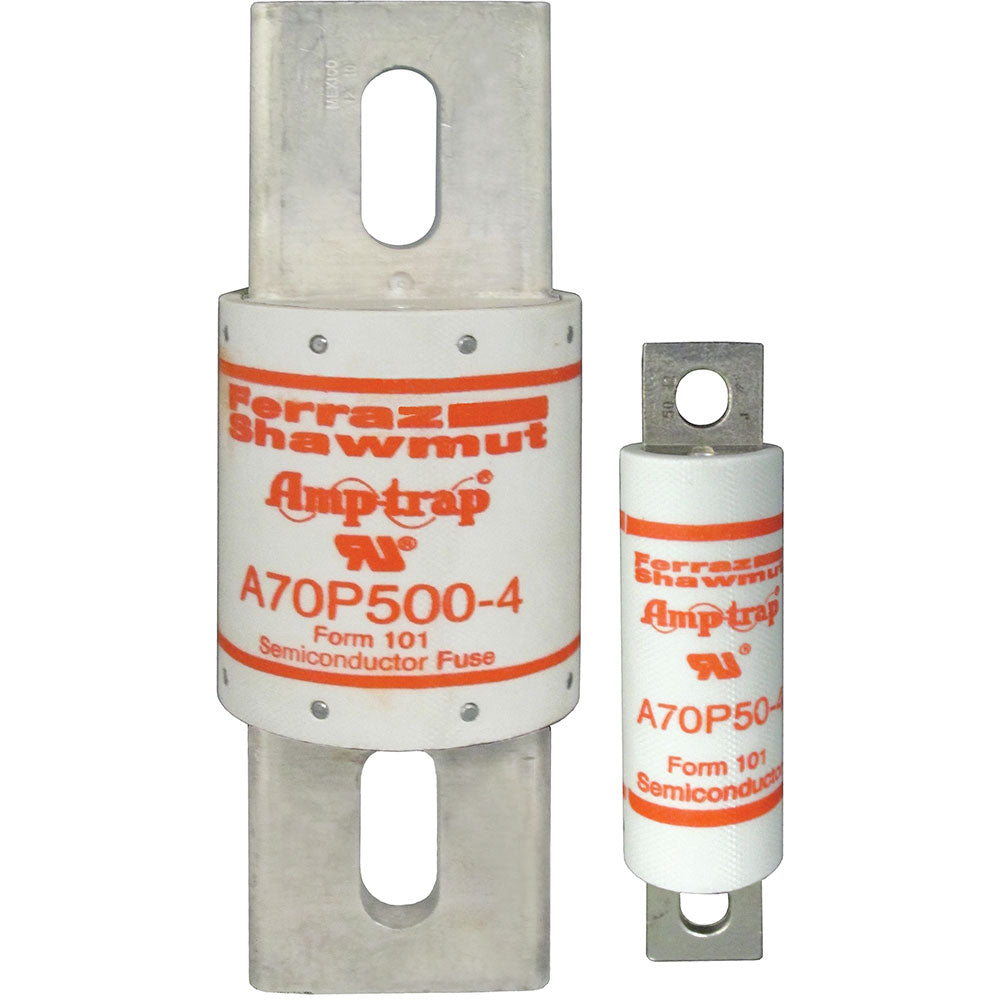

Cutler Hammer A70P1200-4 - Low Voltage Current-Limiting Fuse 1200A (100kA AIC @ 700V)

Cutler Hammer A70P1200-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 1200A current rating and a 700V AC voltage rating, capable of interrupting faults up to 100kA. The fuse is constructed with a single-barrel design, measures 3.5 inches in diameter, weighs 6 lb, and utilizes a robust bolt-in blade connection for secure installation. This fuse complies with industry standards for high-performance circuit protection and is typically applied in motor control centers, service entrance equipment, and industrial control panels where high interrupting capacity and current limitation are critical for system safety and equipment protection.

Key Features & Specifications

• Type: Amp-Trap A70P, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 700V AC
• Current Rating: 1200A
• Dimensions: 3.5 inch Diameter
• Standards: Industry Standards for High-Performance Circuit Protection
• Applications: Motor Control Centers, Service Entrance Equipment, Industrial Control Panels
• AIC rating: 100kA@700V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 6 lb

Product Identification

• UPC: 78200194705
• GTIN: 00782001947057
