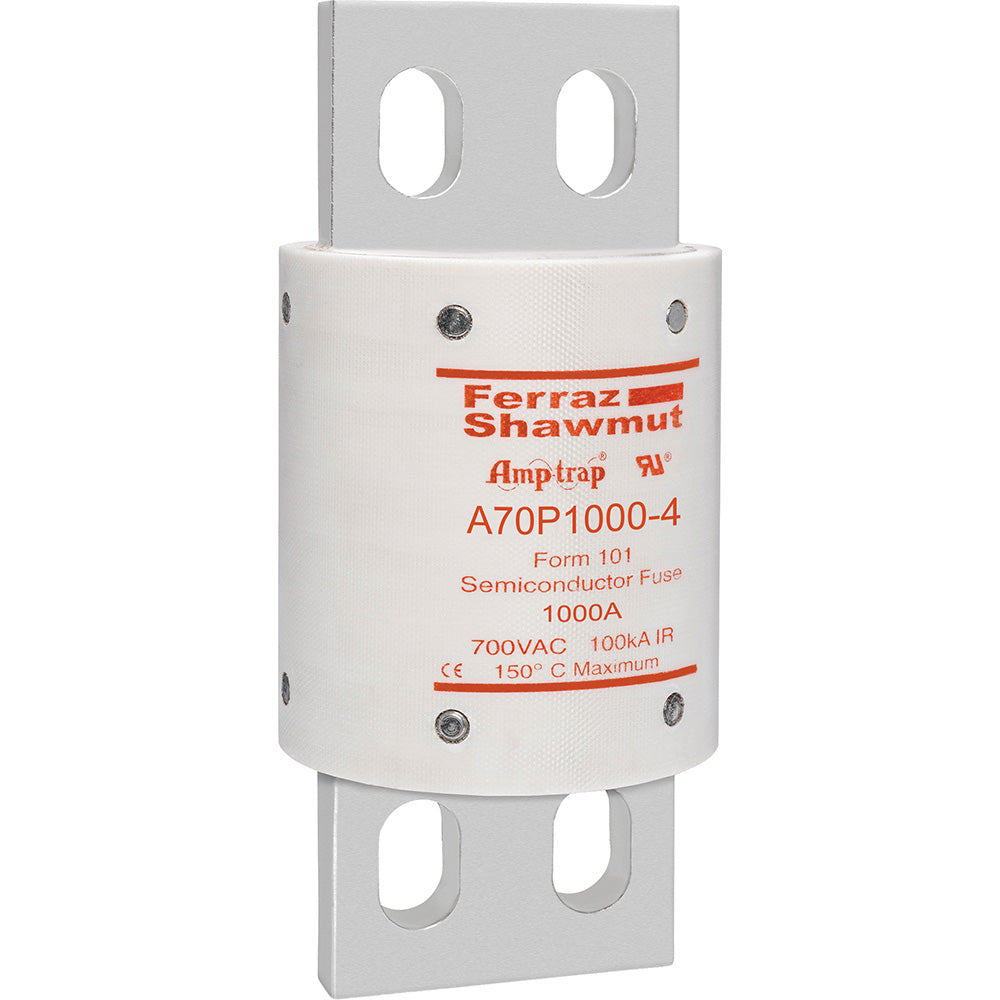

Cutler-Hammer A70P1000-4 - Low Voltage Fuse 1000A (700V, 100kA AIC)

The Cutler-Hammer A70P1000-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide reliable overcurrent and short-circuit protection in demanding electrical systems. It features a 1000A current rating and a 700V voltage rating, capable of interrupting faults with a 100kA AIC rating at its maximum voltage. The fuse is constructed as a single-barrel unit with a 3.5-inch diameter and a robust bolt-in blade connection, weighing 4 lb for secure installation. It is designed to meet rigorous industrial standards for safety and performance in high-energy environments. Typical applications include protection for motor control centers, service entrance equipment, and industrial power distribution systems.

Key Features & Specifications

• Type: Amp-Trap A70P, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 700V AC
• Current Rating: 1000A
• Dimensions: 3.5" Diameter
• Standards: Industrial Safety Standards for High-Energy Environments
• Applications: Motor Control Centers, Service Entrance Equipment, Industrial Power Distribution
• AIC rating: 100kA @ 700V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 4 lb

Product Identification

• UPC: 782001947392
• GTIN: 00782001947392
