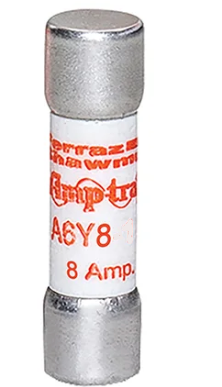

Ferraz Shawmut A6Y8-2 - Class K Fuse 8A 500V (200kA AIC)

Ferraz Shawmut A6Y8-2 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial electrical systems. It features a 500V AC rating with an 8A current capacity and a 200kA interrupting rating at 500V, ensuring reliable short-circuit protection. The fuse has a compact cylindrical design with a 0.81-inch diameter and single-barrel construction, meeting Class K standards for time-delay characteristics. Compliant with industrial safety requirements, it is UL-recognized for use in motor control centers, switchgear, and power distribution panels where selective coordination and equipment protection are critical.

Key Features & Specifications

• Type: Class K time-delay current-limiting fuse (A6Y series)
• Voltage Rating: 500V AC
• Current Rating: 8A
• Dimensions: 0.81" diameter
• Standards: UL 248-10 recognized
• Applications: Motor protection, switchgear, industrial control panels
• AIC rating: 200kA at 500V
• Class Rating: K
• Barrels: 1
• Family: Amp-Trap
