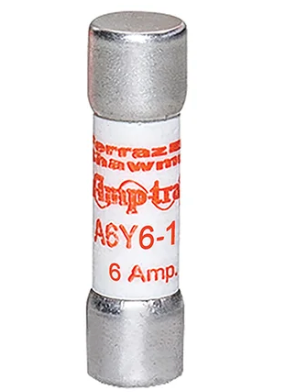

Cutler Hammer A6Y6-1R - Class K Time-Delay Fuse 6A 500V (200kA AIC)

Cutler Hammer A6Y6-1R is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection for electrical circuits and equipment. It features a 6A current rating and a 500V AC voltage rating, with a high 200kA interrupting capacity at its rated voltage to safely clear severe fault conditions. The fuse is constructed as a single-barrel, ferrule-connected unit with a 0.81-inch diameter and a Class K time-delay rating, ensuring robust physical and electrical performance. It is engineered to meet stringent industry standards for reliable operation in demanding environments. Typical applications include the protection of motor circuits, transformers, and feeders in industrial power distribution systems.

Key Features & Specifications

• Type: Amp-Trap A6Y, Low Voltage Current-Limiting Fuse, Time-Delay, Ferrule Connection, Single Barrel
• Voltage Rating: 500V AC
• Current Rating: 6A
• Dimensions: 0.81 inch Diameter
• Standards: Industry Standards for Low Voltage Fuses
• Applications: Protection of Motor Circuits, Transformers, Feeders, Industrial Power Distribution
• AIC rating: 200kA @ 500V
• Class Rating: K
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 78200190223
• GTIN: 00782001902230
