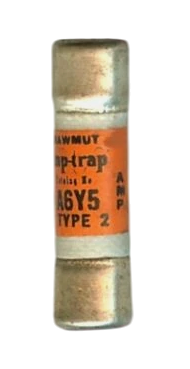

Cutler Hammer A6Y5-2 - Class K Fuse 5A 500V (200kA AIC)

Cutler Hammer A6Y5-2 is a Class K current-limiting fuse from the Amp-Trap family designed for robust short-circuit protection in low-voltage industrial power systems. It features a 5A current rating and a 500V AC voltage rating, providing an interrupting rating of 200kA at 500V to safely clear high-level faults. The fuse is constructed with a single-barrel design and ferrule connections, measuring 0.81 inches in diameter with a weight of 5.19 lb for secure panel mounting. This fuse complies with industry standards for Class K fuses, ensuring reliable performance in demanding environments. Typical applications include protection of motor circuits, feeders, and branch circuits in industrial control panels and electrical distribution equipment.

Key Features & Specifications

• Type: Class K, Amp-Trap, current-limiting fuse, single barrel
• Voltage Rating: 500V AC
• Current Rating: 5A
• Dimensions: 0.81 inches diameter
• Standards: Class K fuse standards
• Applications: Industrial motor circuits, feeders, branch circuits, control panels
• AIC rating: 200kA@500V
• Connection: Ferrule
• Barrels: 1
• Class Rating: K
• Diameter: 0.81 inches
• Weight: 5.19 lb
• Item Subcategory: Low Voltage
• Family: Amp-Trap
